PRODUCT FAMILY

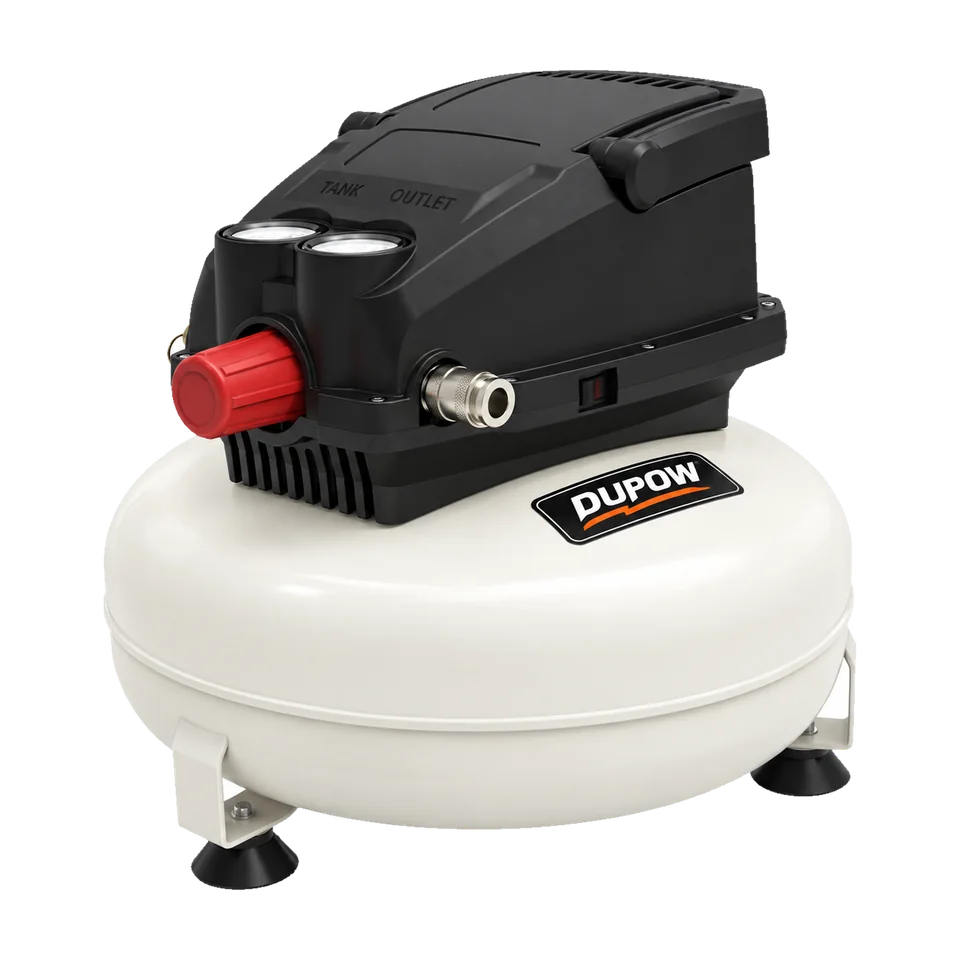

0.5HP 2 gal Compact Air Compressor
1 listed configuration · Family DUP-AC-003
A compact pancake-style oil-free compressor for portable inflation, stapling and light workshop air tasks, with a stable low-profile tank.
| Primary category | Automotive & Workshop Equipment |
|---|---|
| Product type | Inflators & Compressors |
| Public family | Air Compressors |
| Configurations | 1 |
| Power source | Corded Electric |
| Battery platform | Not applicable |
| Motor type | Configuration to confirm |
Voltage, plug, exact configuration, compliance documents, packaging and branding are confirmed for the destination market before quotation or order placement. The commercial terms below are planning references; final terms are confirmed in the quotation.
QUICK FAMILY COMPARISON
Compare nearby Inflators & Compressors options
Review the closest product families, then add the relevant options to one inquiry.
| Family | Product | Key specifications | Power | Inquiry |
|---|---|---|---|---|
| DUP-AC-002 | Dual-Battery 6L Cordless Air Compressor | Battery configuration: 2 × 18 V, 4 Ah Power: 1 HP / 0.7 kW | Cordless | |
| DUP-AC-003 Current page | 0.5HP 2 gal Compact Air Compressor | Voltage: 120 V Frequency: 60 Hz | Corded Electric | Current family |
| DUP-AC-004 | 0.5HP 3 gal Compact Air Compressor | Voltage: 120 V Frequency: 60 Hz | Corded Electric | |
| DUP-AC-005 | 1.5HP Portable Oil-Free Air Compressor | Voltage: 220–240 V Frequency: 50 Hz | Corded Electric |
COMMERCIAL TERMS
Planning reference for this family
- Typical MOQ
- 300 units Automotive & Workshop Equipment
- Sample lead time
- Around 7 days After specifications are confirmed
- Production lead time
- Around 30 days After sample and packaging approval
- OEM
- Welcome Scope confirmed for each program
These are planning references for typical standard configurations, not a binding quotation. MOQ may vary with the model, OEM scope, customized colors, packaging, voltage, plug type and certification requirements. The final MOQ and schedule are confirmed for each quotation and order.
CONFIGURATION MATRIX
Choose the right configuration
Use the DUPOW configuration reference in your inquiry. Final market version, accessories and packaging remain subject to confirmation.
| Product view | Inquiry reference | Configuration | Reviewed specifications |
|---|---|---|---|
 | DUP-AC-003Lead configuration | Current reviewed configuration | Voltage: 120 VFrequency: 60 HzPower: 0.5 HP / 0.35 kWTank volume: 2 galAir delivery: 45 L/minMotor speed: 4,700 rpmMaximum pressure: 100 psiCatalogue weight: 6.6 kg2 gal low-profile tank45 L/min air delivery100 psi maximum pressurePackage: Export carton; 335 × 335 × 355 mm. Outer carton: 335 × 335 × 355 mm. Quantity: 1 pc/ctn. Net/gross weight: To be confirmed / To be confirmed. Container loading (20 ft / 40 ft / 40 ft HQ): 714 pcs / 1,470 pcs / 1,715 pcs.Certification documentation available upon request. |
