PRODUCT FAMILY

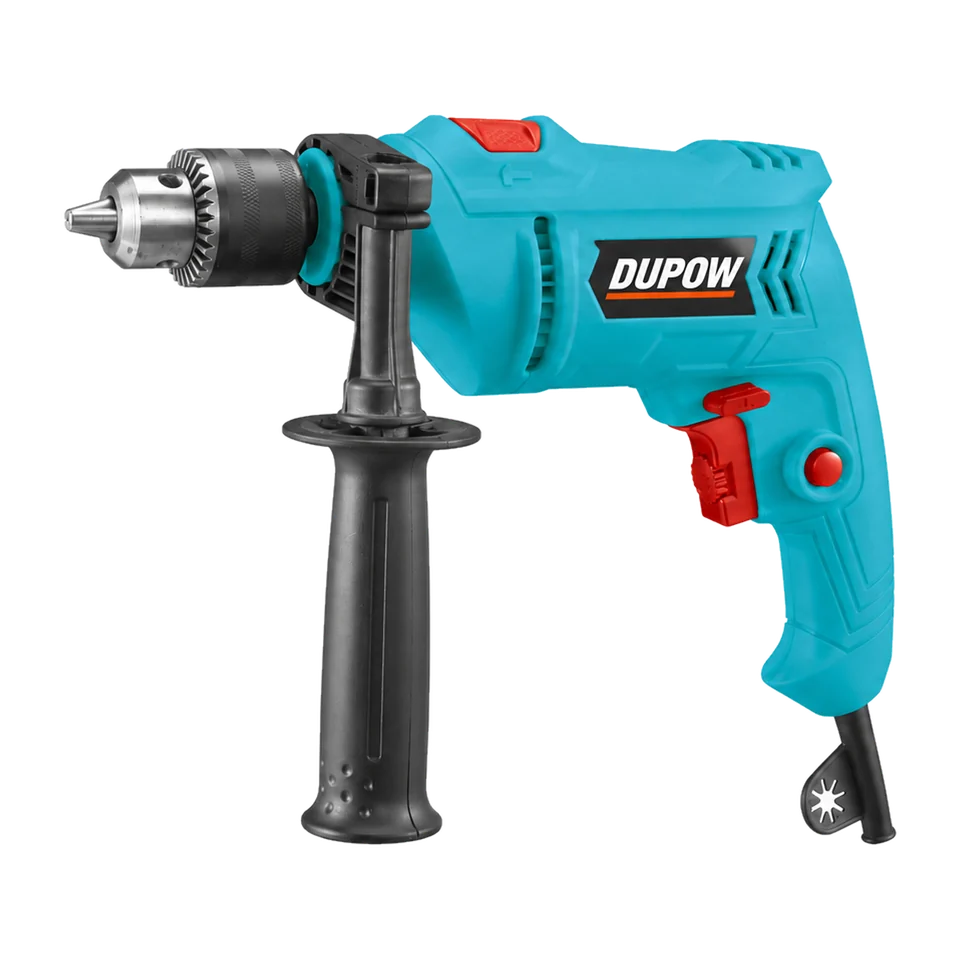

500W Slim-Body Variable-Speed Impact Drill
1 listed configuration · Family DUP-ID-007
A corded variable-speed impact drill for general drilling in steel and wood, supplied with a side handle and depth gauge.
| Primary category | Drilling & Fastening |
|---|---|
| Product type | Impact Drills |
| Public family | Impact Drills |
| Configurations | 1 |
| Power source | Corded |
| Battery platform | Not applicable |
| Motor type | Brushed |
Voltage, plug, exact configuration, compliance documents, packaging and branding are confirmed for the destination market before quotation or order placement. The commercial terms below are planning references; final terms are confirmed in the quotation.
QUICK FAMILY COMPARISON
Compare nearby Impact Drills options
Review the closest product families, then add the relevant options to one inquiry.
| Family | Product | Key specifications | Power | Inquiry |
|---|---|---|---|---|
| DUP-ID-006 | 500W Compact Variable-Speed Impact Drill | Rated voltage: 110–240 V Frequency: 50/60 Hz | Corded | |
| DUP-ID-007 Current page | 500W Slim-Body Variable-Speed Impact Drill | Rated voltage: 110–240 V Frequency: 50/60 Hz | Corded | Current family |
| DUP-ID-008 | 650W Slim-Body Variable-Speed Impact Drill | Rated voltage: 110–240 V Frequency: 50/60 Hz | Corded | |
| DUP-ID-009 | 500W Slim-Body Impact Drill | Rated voltage: 110–240 V Frequency: 50/60 Hz | Corded |
COMMERCIAL TERMS
Planning reference for this family
- Typical MOQ
- 500 units Drilling & Fastening
- Sample lead time
- Around 7 days After specifications are confirmed
- Production lead time
- Around 30 days After sample and packaging approval
- OEM
- Welcome Scope confirmed for each program
These are planning references for typical standard configurations, not a binding quotation. MOQ may vary with the model, OEM scope, customized colors, packaging, voltage, plug type and certification requirements. The final MOQ and schedule are confirmed for each quotation and order.
COMPLIANCE DOCUMENTS
Redacted previews available for this family
An internal source-model cross-check found an exact textual match between this DUPOW family and the supplier-held document represented below. The public image is a further-sanitized summary, not the original document.
Important: A preview link is evidence of a reviewed source-model match, not a product certification badge or a promise that every configuration is currently covered. Exact applicability, validity and destination-market requirements are reconfirmed for the ordered configuration before quotation or document release.
CONFIGURATION MATRIX
Choose the right configuration
Use the DUPOW configuration reference in your inquiry. Final market version, accessories and packaging remain subject to confirmation.
| Product view | Inquiry reference | Configuration | Reviewed specifications |
|---|---|---|---|
 | DUP-ID-007Lead configuration | Current reviewed configuration | Rated voltage: 110–240 VFrequency: 50/60 HzRated input: 500 WNo-load speed: 0–3,000 rpmMaximum drilling capacity in steel: 13 mmMaximum drilling capacity in wood: 30 mmStandard accessories: Side handle, Depth gauge, Chuck key, Spare carbon-brush pair, Instruction manualPackage: Individual box: 260 × 75 × 220 mm. Outer carton: 535 × 385 × 235 mm. Quantity: 10 pcs/ctn. Net weight: To be confirmed. Gross weight: 20 kg. Container loading quantities: To be confirmed.Certification documentation available upon request. |
