PRODUCT FAMILY
20V Brushless 82 mm Cordless Planer
1 listed configuration · Family DUP-PL-003
A compact 20 V brushless planer with an 82 mm cutting width, 2 mm maximum cutting depth and electric brake.
| Primary category | Woodworking & Benchtop Tools |
|---|---|
| Product type | Planers & Jointers |
| Public family | Cordless Handheld Planers |
| Configurations | 1 |
| Power source | Cordless |
| Battery platform | 20V Battery Platform |
| Motor type | Brushless |
Voltage, plug, exact configuration, compliance documents, packaging and branding are confirmed for the destination market before quotation or order placement. The commercial terms below are planning references; final terms are confirmed in the quotation.
QUICK FAMILY COMPARISON
Compare nearby Planers & Jointers options
Review the closest product families, then add the relevant options to one inquiry.
| Family | Product | Key specifications | Power | Inquiry |
|---|---|---|---|---|
| DUP-PL-002 | 900W 82 mm Electric Planer | Rated voltage / frequency: 230–240 V / 50 Hz Rated input: 900 W | Corded | |
| DUP-PL-003 Current page | 20V Brushless 82 mm Cordless Planer | Battery voltage: 20 V Motor type: Brushless / 5220 | 20V Battery Platform | Current family |
| DUP-BJ-001 | 750W 100 mm Biscuit Jointer | Rated voltage / frequency: 230–240 V / 50 Hz Rated input: 750 W | Corded | |
| DUP-PL-004 | 1200W Benchtop Planer | Voltage range as printed: 20–240 V Frequency: 50/60 Hz | Corded |
COMMERCIAL TERMS
Planning reference for this family
- Typical MOQ
- 300 units Woodworking & Benchtop Tools
- Sample lead time
- Around 7 days After specifications are confirmed
- Production lead time
- Around 30 days After sample and packaging approval
- OEM
- Welcome Scope confirmed for each program
These are planning references for typical standard configurations, not a binding quotation. MOQ may vary with the model, OEM scope, customized colors, packaging, voltage, plug type and certification requirements. The final MOQ and schedule are confirmed for each quotation and order.
CONFIGURATION MATRIX
Choose the right configuration
Use the DUPOW configuration reference in your inquiry. Final market version, accessories and packaging remain subject to confirmation.
| Product view | Inquiry reference | Configuration | Reviewed specifications |
|---|---|---|---|

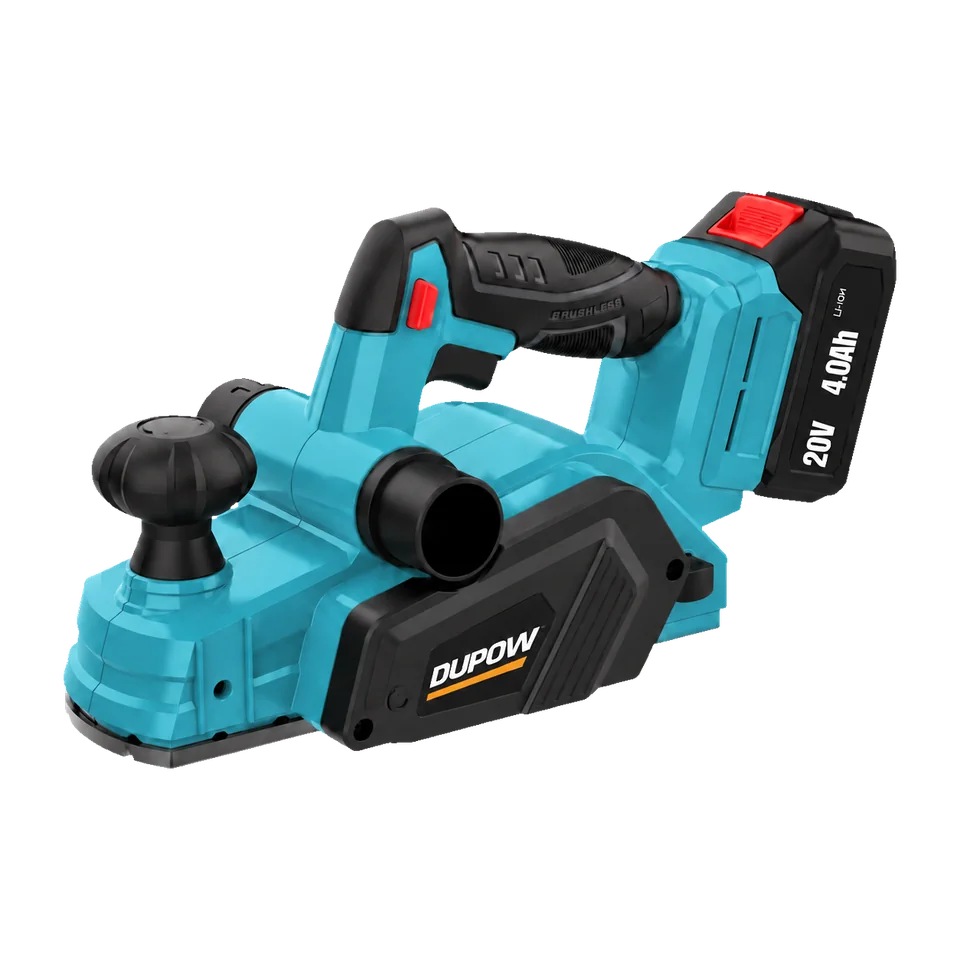

 | DUP-PL-003Lead configuration | Current reviewed configuration | Battery voltage: 20 VMotor type: Brushless / 5220No-load speed: 12,000 rpmPlaning width: 82 mmCutting depth: 0–2 mmRebating depth: 0–15 mmNet product weight: 2.5 kgStandard accessories: Parallel guide, depth guide and dust bagBattery and charger: Not included in quoted pricePackage: Individual box: 320 × 166 × 200 mm. Outer carton: 352 × 335 × 420 mm. Quantity: 4 pcs/ctn. Net / gross weight: 11.7 kg / 12.7 kg. Loading: To be confirmed/20 ft; To be confirmed/40 ft; To be confirmed/40 HQ.Certification documentation available upon request. |
