PRODUCT FAMILY

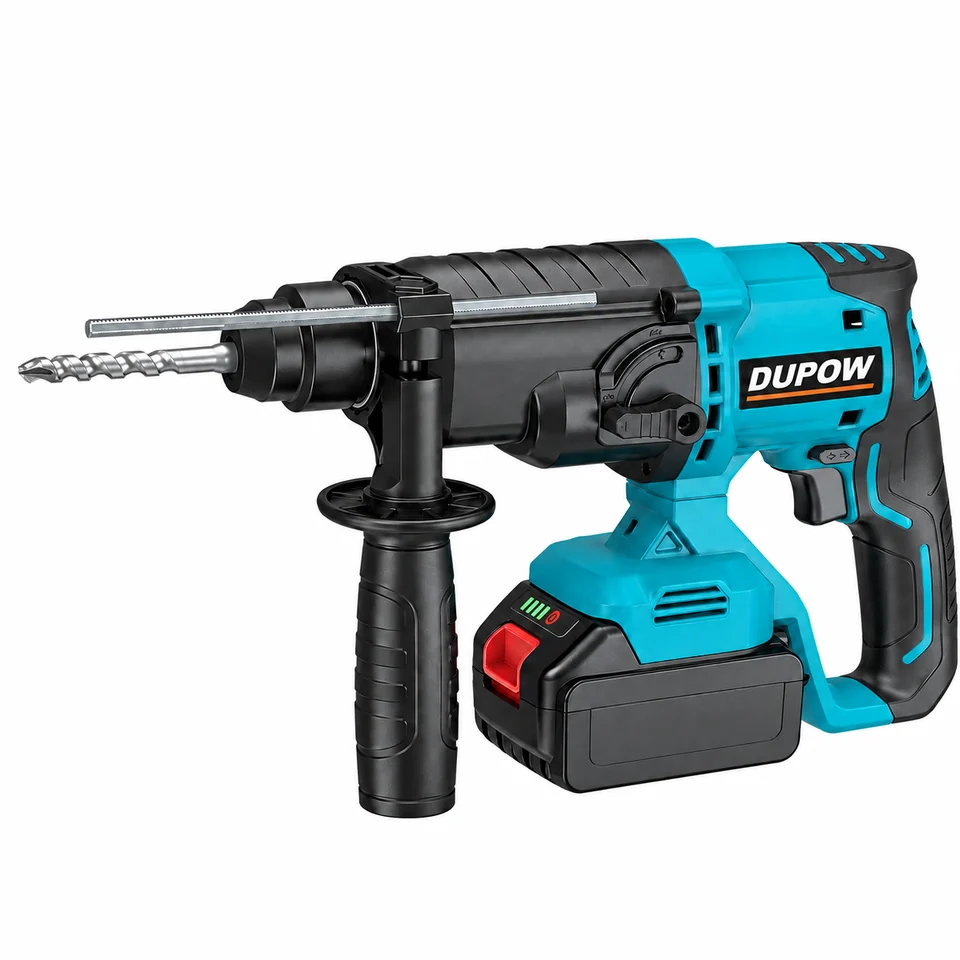

20V 22 mm Cordless Rotary Hammer
1 listed configuration · Family DUP-RH-003
A 2.2 J SDS-plus cordless rotary hammer with an auxiliary handle and 22 mm concrete capacity.
| Primary category | Drilling & Fastening |
|---|---|
| Product type | Rotary Hammers |
| Public family | Cordless Rotary Hammers |
| Configurations | 1 |
| Power source | Cordless |
| Battery platform | 20V Battery Platform |
| Motor type | Configuration to confirm |
Voltage, plug, exact configuration, compliance documents, packaging and branding are confirmed for the destination market before quotation or order placement. The commercial terms below are planning references; final terms are confirmed in the quotation.
QUICK FAMILY COMPARISON
Compare nearby Rotary Hammers options
Review the closest product families, then add the relevant options to one inquiry.
| Family | Product | Key specifications | Power | Inquiry |
|---|---|---|---|---|
| DUP-RH-002 | 20V 20 mm Cordless Rotary Hammer | Battery voltage: 18 V DC (20V Max platform) Impact rate: 0–5,000 bpm | 20V Battery Platform | |
| DUP-RH-003 Current page | 20V 22 mm Cordless Rotary Hammer | Battery voltage: 18 V DC (20V Max platform) Impact rate: 0–5,000 bpm | 20V Battery Platform | Current family |
| DUP-RH-004 | 20V 24 mm Cordless Rotary Hammer | Battery voltage: 18 V DC (20V Max platform) Impact rate: 0–5,000 bpm | 20V Battery Platform | |
| DUP-RH-005 | 1100W 30 mm SDS Rotary Hammer | Voltage/frequency: 220–240 V/50 Hz Rated input power: 1100 W | Corded Electric |
COMMERCIAL TERMS
Planning reference for this family
- Typical MOQ
- 500 units Drilling & Fastening
- Sample lead time
- Around 7 days After specifications are confirmed
- Production lead time
- Around 30 days After sample and packaging approval
- OEM
- Welcome Scope confirmed for each program
These are planning references for typical standard configurations, not a binding quotation. MOQ may vary with the model, OEM scope, customized colors, packaging, voltage, plug type and certification requirements. The final MOQ and schedule are confirmed for each quotation and order.
CONFIGURATION MATRIX
Choose the right configuration
Use the DUPOW configuration reference in your inquiry. Final market version, accessories and packaging remain subject to confirmation.
| Product view | Inquiry reference | Configuration | Reviewed specifications |
|---|---|---|---|
 | DUP-RH-003Lead configuration | Current reviewed configuration | Battery voltage: 18 V DC (20V Max platform)Impact rate: 0–5,000 bpmNo-load speed: 0–1,000 rpmMaximum impact energy: 2.2 JMaximum drilling: steel 13 mm; concrete 22 mm; wood 28 mmToolholder: SDS-plusBare tool plus battery weight: 2.3 kgKit gross/net weight: 4.7/2.9 kgPackage: Outer carton: 49.5 × 48 × 29.5 cm. Quantity: 4 pcs/ctn. Net weight: 2.9 kg/kit. Gross weight: 4.7 kg/kit. Container loading (20 ft / 40 ft / 40 ft HQ): 1,344 pcs / 2,688 pcs / To be confirmed.Certification documentation available upon request. |
