PRODUCT FAMILY

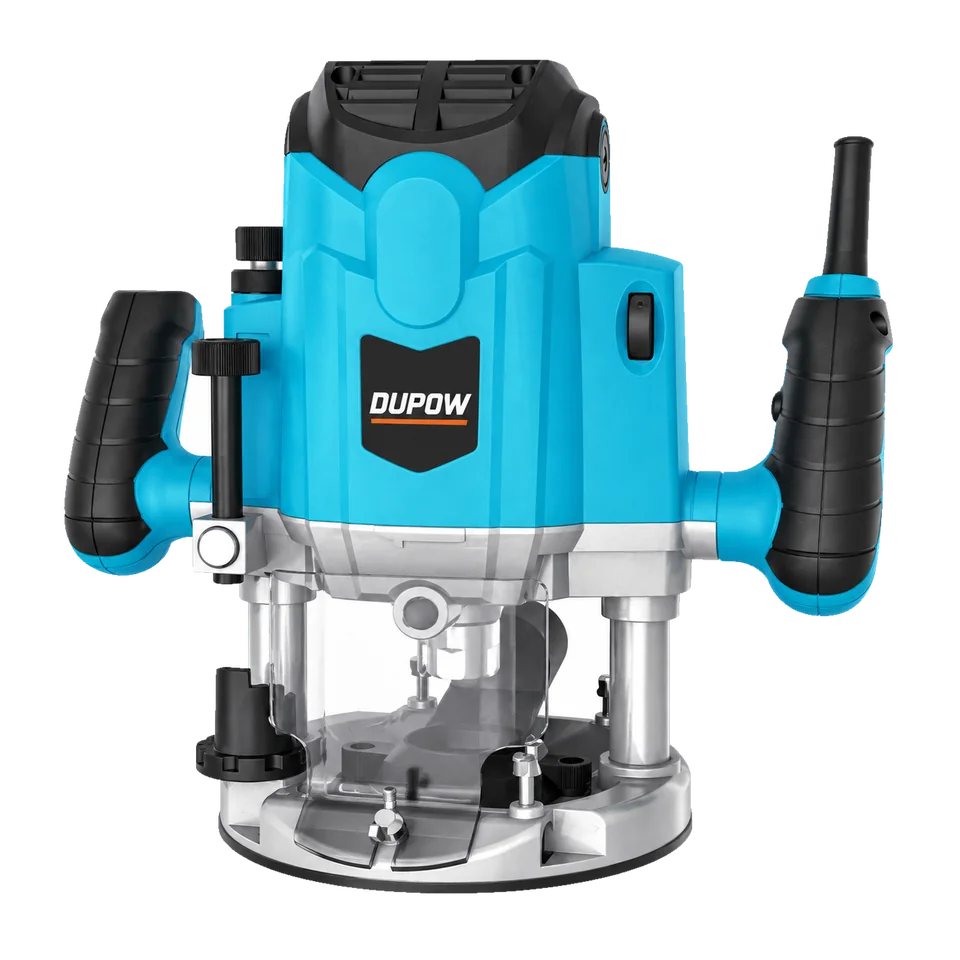

2100W Variable-Speed Plunge Router
1 listed configuration · Family DUP-RT-005
A high-output plunge router for deeper routing, large profiles and demanding workshop use, with a 12 mm / 1/2 in collet format and controlled plunge adjustment.
| Primary category | Woodworking & Benchtop Tools |
|---|---|
| Product type | Routers & Trimmers |
| Public family | Routers & Trimmers |
| Configurations | 1 |
| Power source | Corded Electric |
| Battery platform | Not applicable |
| Motor type | Configuration to confirm |
Voltage, plug, exact configuration, compliance documents, packaging and branding are confirmed for the destination market before quotation or order placement. The commercial terms below are planning references; final terms are confirmed in the quotation.
QUICK FAMILY COMPARISON
Compare nearby Routers & Trimmers options
Review the closest product families, then add the relevant options to one inquiry.
| Family | Product | Key specifications | Power | Inquiry |
|---|---|---|---|---|
| DUP-RT-002 | 710W Variable-Speed Compact Router | Voltage: 220–240 V / 120 V Frequency: 50/60 Hz | Corded Electric | |
| DUP-RT-003 | 550W Compact Router | Voltage: 220–240 V Frequency: 50/60 Hz | Corded Electric | |
| DUP-RT-004 | 1200W Variable-Speed Plunge Router | Voltage: 220–240 V Frequency: 50/60 Hz | Corded Electric | |
| DUP-RT-005 Current page | 2100W Variable-Speed Plunge Router | Voltage: 220–240 V / 120 V Frequency: 50/60 Hz | Corded Electric | Current family |
COMMERCIAL TERMS
Planning reference for this family
- Typical MOQ
- 300 units Woodworking & Benchtop Tools
- Sample lead time
- Around 7 days After specifications are confirmed
- Production lead time
- Around 30 days After sample and packaging approval
- OEM
- Welcome Scope confirmed for each program
These are planning references for typical standard configurations, not a binding quotation. MOQ may vary with the model, OEM scope, customized colors, packaging, voltage, plug type and certification requirements. The final MOQ and schedule are confirmed for each quotation and order.
COMPLIANCE DOCUMENTS
Redacted previews available for this family
An internal source-model cross-check found an exact textual match between this DUPOW family and the supplier-held document represented below. The public image is a further-sanitized summary, not the original document.
Important: A preview link is evidence of a reviewed source-model match, not a product certification badge or a promise that every configuration is currently covered. Exact applicability, validity and destination-market requirements are reconfirmed for the ordered configuration before quotation or document release.
CONFIGURATION MATRIX
Choose the right configuration
Use the DUPOW configuration reference in your inquiry. Final market version, accessories and packaging remain subject to confirmation.
| Product view | Inquiry reference | Configuration | Reviewed specifications |
|---|---|---|---|
 | DUP-RT-005Lead configuration | Current reviewed configuration | Voltage: 220–240 V / 120 VFrequency: 50/60 HzRated input: 2,100 W / 15 ANo-load speed: 12,000–23,000 rpmCollet size: 12 mm / 1/2 inPlunge depth: 0–50 mmBase diameter: 160 mm2,100 W rated input for demanding routing work12,000–23,000 rpm variable-speed range0–50 mm plunge adjustment and 160 mm basePackage: To be confirmed. Outer carton: 66 × 36 × 33 cm. Quantity: 4 pcs/ctn. Net/gross weight: To be confirmed / 28 kg. Container loading (20 ft / 40 ft / 40 ft HQ): To be confirmed / To be confirmed / To be confirmed.Certification documentation available upon request. |
