PRODUCT FAMILY
500/750W 100–125 mm Angle Grinder
1 listed configuration · Family DUP-AG-003
A corded angle grinder platform offered with 100 mm / 115 mm / 125 mm wheel configurations for general grinding and metalworking applications.
| Primary category | Grinding & Polishing |
|---|---|
| Product type | Angle Grinders |
| Public family | Angle Grinders |
| Configurations | 1 |
| Power source | Corded |
| Battery platform | Not applicable |
| Motor type | Brushed |
Voltage, plug, exact configuration, compliance documents, packaging and branding are confirmed for the destination market before quotation or order placement. The commercial terms below are planning references; final terms are confirmed in the quotation.
QUICK FAMILY COMPARISON
Compare nearby Angle Grinders options
Review the closest product families, then add the relevant options to one inquiry.
| Family | Product | Key specifications | Power | Inquiry |
|---|---|---|---|---|
| DUP-AG-002 | 500/650W 100–125 mm Compact Angle Grinder | Rated voltage: 110–120 V / 220–240 V Frequency: 50/60 Hz | Corded | |
| DUP-AG-003 Current page | 500/750W 100–125 mm Angle Grinder | Rated voltage: 110–120 V / 220–240 V Frequency: 50/60 Hz | Corded | Current family |
| DUP-AG-004 | 710/800/850W 100–125 mm Angle Grinder | Rated voltage: 110–120 V / 220–240 V Frequency: 50/60 Hz | Corded | |
| DUP-AG-005 | 850/1100W 100–125 mm Angle Grinder | Rated voltage: 110–120 V / 220–240 V Frequency: 50/60 Hz | Corded |
COMMERCIAL TERMS
Planning reference for this family
- Typical MOQ
- 500 units Grinding & Polishing
- Sample lead time
- Around 7 days After specifications are confirmed
- Production lead time
- Around 30 days After sample and packaging approval
- OEM
- Welcome Scope confirmed for each program
These are planning references for typical standard configurations, not a binding quotation. MOQ may vary with the model, OEM scope, customized colors, packaging, voltage, plug type and certification requirements. The final MOQ and schedule are confirmed for each quotation and order.
COMPLIANCE DOCUMENTS
Redacted previews available for this family
An internal source-model cross-check found an exact textual match between this DUPOW family and the supplier-held document represented below. The public image is a further-sanitized summary, not the original document.
EMC · REDACTED PREVIEW
Public document preview
StandardsEN 61000-3-3:2013+A1:2019 · EN IEC 55014-1:2021 · EN IEC 55014-2:2021 · EN IEC 61000-3-2:2019+A1:2021 · IEC 55014-1:2021 · IEC 55014-2:2021 · IEC 61000-3-2:2019
Date shown2025-07-25
Open preview ↗
CE Safety · REDACTED PREVIEW
Public document preview
StandardsEN 62841-1:2015+A11:2022 · EN IEC 62841-2-3:2021+A11:2021 · IEC 62841-2-3:2021
Date shown2025-07-25
Open preview ↗
Important: A preview link is evidence of a reviewed source-model match, not a product certification badge or a promise that every configuration is currently covered. Exact applicability, validity and destination-market requirements are reconfirmed for the ordered configuration before quotation or document release.
CONFIGURATION MATRIX
Choose the right configuration
Use the DUPOW configuration reference in your inquiry. Final market version, accessories and packaging remain subject to confirmation.
| Product view | Inquiry reference | Configuration | Reviewed specifications |
|---|---|---|---|

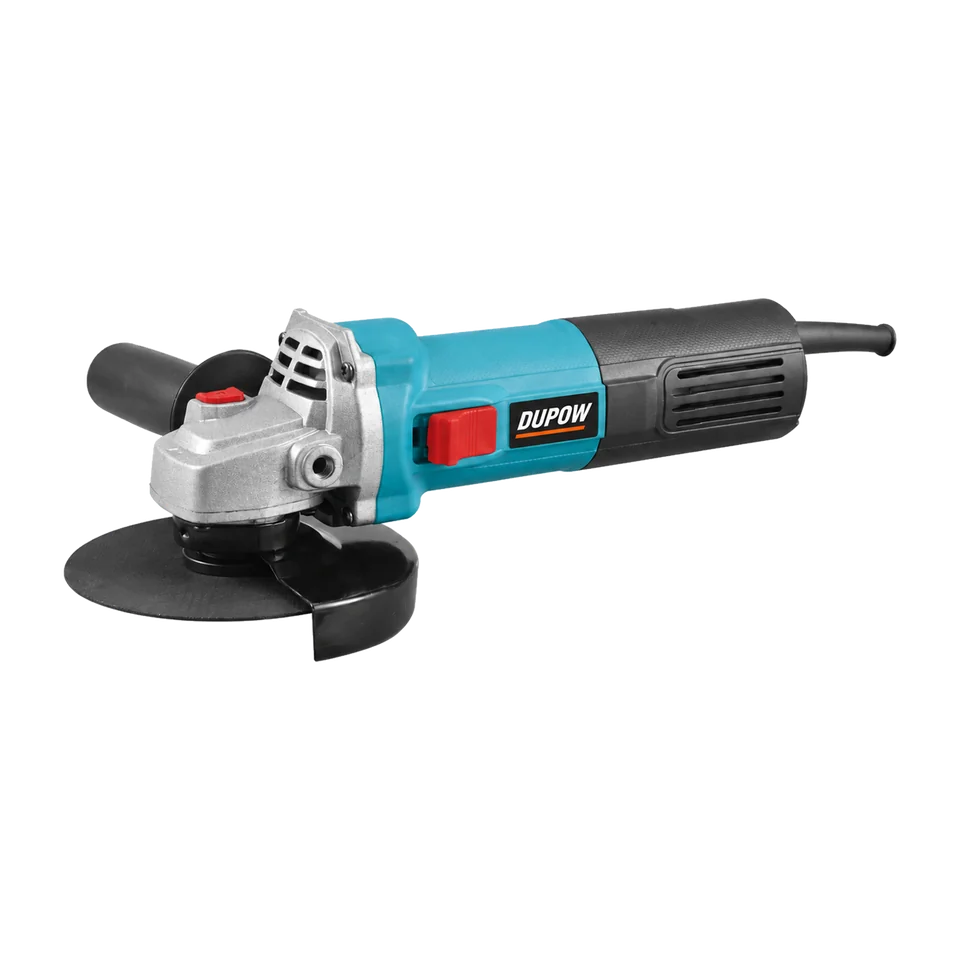

 | DUP-AG-003Lead configuration | Current reviewed configuration | Rated voltage: 110–120 V / 220–240 VFrequency: 50/60 HzRated input: 500 W / 750 WNo-load speed: 10,500 rpm / 0–10,500 rpmCompatible wheel diameters: 100 mm / 115 mm / 125 mmRated input options: 500 W / 750 WStandard accessories: Wheel guard, Side handle, Inner and outer flanges, Spanner, Spare carbon-brush pair, Instruction manualPackage: Individual box: 315 × 90 × 120 mm. Outer carton: 470 × 330 × 260 mm. Quantity: 10 pcs/ctn. Net weight: To be confirmed. Gross weight: 20 kg. Container loading quantities: To be confirmed.Certification documentation available upon request. |
