PRODUCT FAMILY

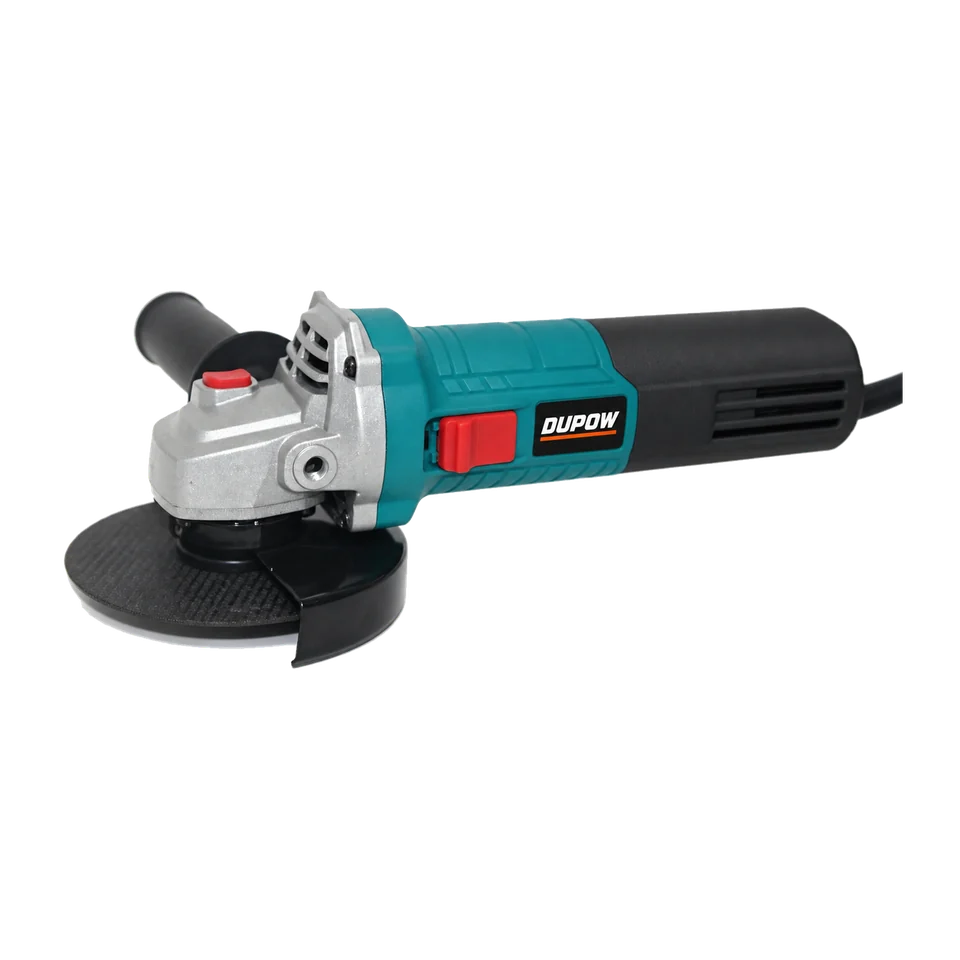

650W 100–125 mm Compact Angle Grinder
1 listed configuration · Family DUP-AG-010
A corded angle grinder platform offered with 100 mm / 115 mm / 125 mm wheel configurations for general grinding and metalworking applications.
| Primary category | Grinding & Polishing |
|---|---|
| Product type | Angle Grinders |
| Public family | Angle Grinders |
| Configurations | 1 |
| Power source | Corded |
| Battery platform | Not applicable |
| Motor type | Brushed |
Voltage, plug, exact configuration, compliance documents, packaging and branding are confirmed for the destination market before quotation or order placement. The commercial terms below are planning references; final terms are confirmed in the quotation.
QUICK FAMILY COMPARISON
Compare nearby Angle Grinders options
Review the closest product families, then add the relevant options to one inquiry.
| Family | Product | Key specifications | Power | Inquiry |
|---|---|---|---|---|
| DUP-AG-009 | 850/1050W 115/125 mm Angle Grinder | Rated voltage: 110–120 V / 220–240 V Frequency: 50/60 Hz | Corded | |
| DUP-AG-010 Current page | 650W 100–125 mm Compact Angle Grinder | Rated voltage: 110–120 V / 220–240 V Frequency: 50/60 Hz | Corded | Current family |
| DUP-AG-011 | 650W 100–125 mm Variable-Speed Angle Grinder | Rated voltage: 110–120 V / 220–240 V Frequency: 50/60 Hz | Corded | |
| DUP-AG-012 | 20V Brushless 115 mm Cordless Angle Grinder | Battery voltage: 18 V DC (20V Max platform) No-load speed: 7,500 rpm | 20V Battery Platform |
COMMERCIAL TERMS
Planning reference for this family
- Typical MOQ
- 500 units Grinding & Polishing
- Sample lead time
- Around 7 days After specifications are confirmed
- Production lead time
- Around 30 days After sample and packaging approval
- OEM
- Welcome Scope confirmed for each program
These are planning references for typical standard configurations, not a binding quotation. MOQ may vary with the model, OEM scope, customized colors, packaging, voltage, plug type and certification requirements. The final MOQ and schedule are confirmed for each quotation and order.
CONFIGURATION MATRIX
Choose the right configuration
Use the DUPOW configuration reference in your inquiry. Final market version, accessories and packaging remain subject to confirmation.
| Product view | Inquiry reference | Configuration | Reviewed specifications |
|---|---|---|---|
 | DUP-AG-010Lead configuration | Current reviewed configuration | Rated voltage: 110–120 V / 220–240 VFrequency: 50/60 HzRated input: 650 WNo-load speed: 10,500 rpmCompatible wheel diameters: 100 mm / 115 mm / 125 mmStandard accessories: Wheel guard, Side handle, Inner and outer flanges, Spanner, Spare carbon-brush pair, Instruction manualPackage: Individual box: 315 × 90 × 120 mm. Outer carton: 470 × 330 × 260 mm. Quantity: 10 pcs/ctn. Net weight: To be confirmed. Gross weight: 20 kg. Container loading quantities: To be confirmed.Certification documentation available upon request. |
