PRODUCT FAMILY

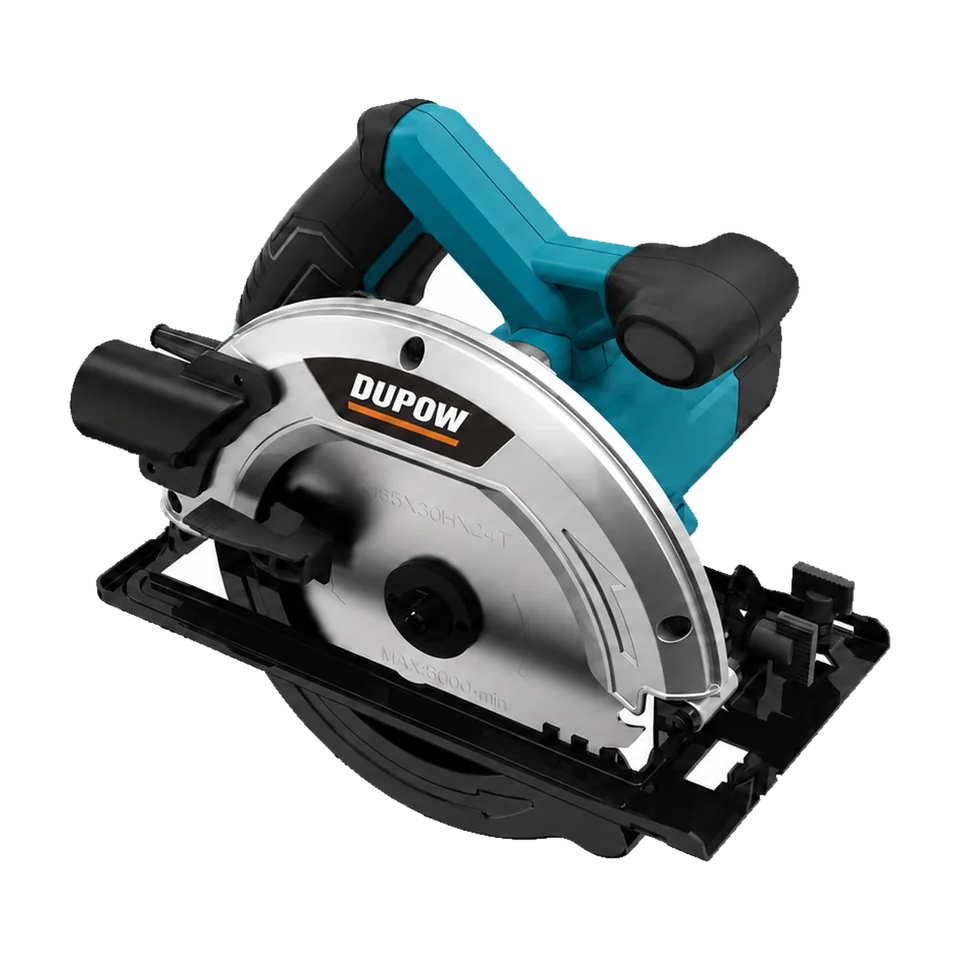

1400W 185 mm Circular Saw — Design A
1 listed configuration · Family DUP-CS-008
A distributor-ready 1400W 185 mm Circular Saw — Design A for site cutting and general woodworking, combining no-load speed: 5500 rpm with straightforward service-oriented construction.
| Primary category | Handheld Saws & Cutting |
|---|---|
| Product type | Circular Saws |
| Public family | Circular Saws |
| Configurations | 1 |
| Power source | Corded Electric |
| Battery platform | Not applicable |
| Motor type | Universal motor |
Voltage, plug, exact configuration, compliance documents, packaging and branding are confirmed for the destination market before quotation or order placement. The commercial terms below are planning references; final terms are confirmed in the quotation.
QUICK FAMILY COMPARISON
Compare nearby Circular Saws options
Review the closest product families, then add the relevant options to one inquiry.
| Family | Product | Key specifications | Power | Inquiry |
|---|---|---|---|---|
| DUP-CS-007 | 1200W 165 mm Plunge Saw | Voltage/frequency: 230–240 V/50 Hz Rated input power: 1200 W | Corded Electric | |
| DUP-CS-008 Current page | 1400W 185 mm Circular Saw — Design A | Voltage/frequency: 230–240 V/50 Hz Rated input power: 1400 W | Corded Electric | Current family |
| DUP-CS-009 | 1600W 185 mm Circular Saw — Design A | Voltage/frequency: 230–240 V/50 Hz Rated input power: 1600 W | Corded Electric | |
| DUP-CS-010 | 1800W 210 mm Circular Saw | Voltage/frequency: 230–240 V/50 Hz Rated input power: 1800 W | Corded Electric |
COMMERCIAL TERMS
Planning reference for this family
- Typical MOQ
- 500 units Handheld Saws & Cutting
- Sample lead time
- Around 7 days After specifications are confirmed
- Production lead time
- Around 30 days After sample and packaging approval
- OEM
- Welcome Scope confirmed for each program
These are planning references for typical standard configurations, not a binding quotation. MOQ may vary with the model, OEM scope, customized colors, packaging, voltage, plug type and certification requirements. The final MOQ and schedule are confirmed for each quotation and order.
COMPLIANCE DOCUMENTS
Redacted previews available for this family
An internal source-model cross-check found an exact textual match between this DUPOW family and the supplier-held document represented below. The public image is a further-sanitized summary, not the original document.
CE Safety · REDACTED PREVIEW
Public document preview
StandardsNot shown in the public preview
Date shown2025-08-04
Open preview ↗
EMC · REDACTED PREVIEW
Public document preview
StandardsEN 61000-3-3:2013 · EN IEC 55014-1:2021 · EN IEC 55014-2:2021 · EN IEC 61000-3-2:2019 · IEC 55014-1:2021 · IEC 55014-2:2021 · IEC 61000-3-2:2019
Date shown2025-07-15
Open preview ↗
Important: A preview link is evidence of a reviewed source-model match, not a product certification badge or a promise that every configuration is currently covered. Exact applicability, validity and destination-market requirements are reconfirmed for the ordered configuration before quotation or document release.
CONFIGURATION MATRIX
Choose the right configuration
Use the DUPOW configuration reference in your inquiry. Final market version, accessories and packaging remain subject to confirmation.
| Product view | Inquiry reference | Configuration | Reviewed specifications |
|---|---|---|---|
 | DUP-CS-008Lead configuration | Current reviewed configuration | Voltage/frequency: 230–240 V/50 HzRated input power: 1400 WNo-load speed: 5500 rpmBlade diameter: 185 mmCutting depth at 90° angle: 65 mm with steel base ; aluminium base reduces depth by 2 mmCutting depth at 45° angle: 43 mm with steel base ; aluminium base reduces depth by 2 mmStandard accessories: 1 × 24 T Saw blade, 1 × Guide ruler, 1 × hex keyPackage: Individual pack: Color Box; 32 × 24.5 × 24.5 cm. Outer carton: 52 × 33.5 × 52 cm. Quantity: 4 pcs/ctn. Net/gross weight: 19.1 kg / 19.6 kg. Container loading (20 ft / 40 ft / 40 ft HQ): 1200 pcs / 2400 pcs / 3000 pcs.Certification: GS, EMC, ROHS; destination-market documents to be confirmed before quotation. |
