PRODUCT FAMILY

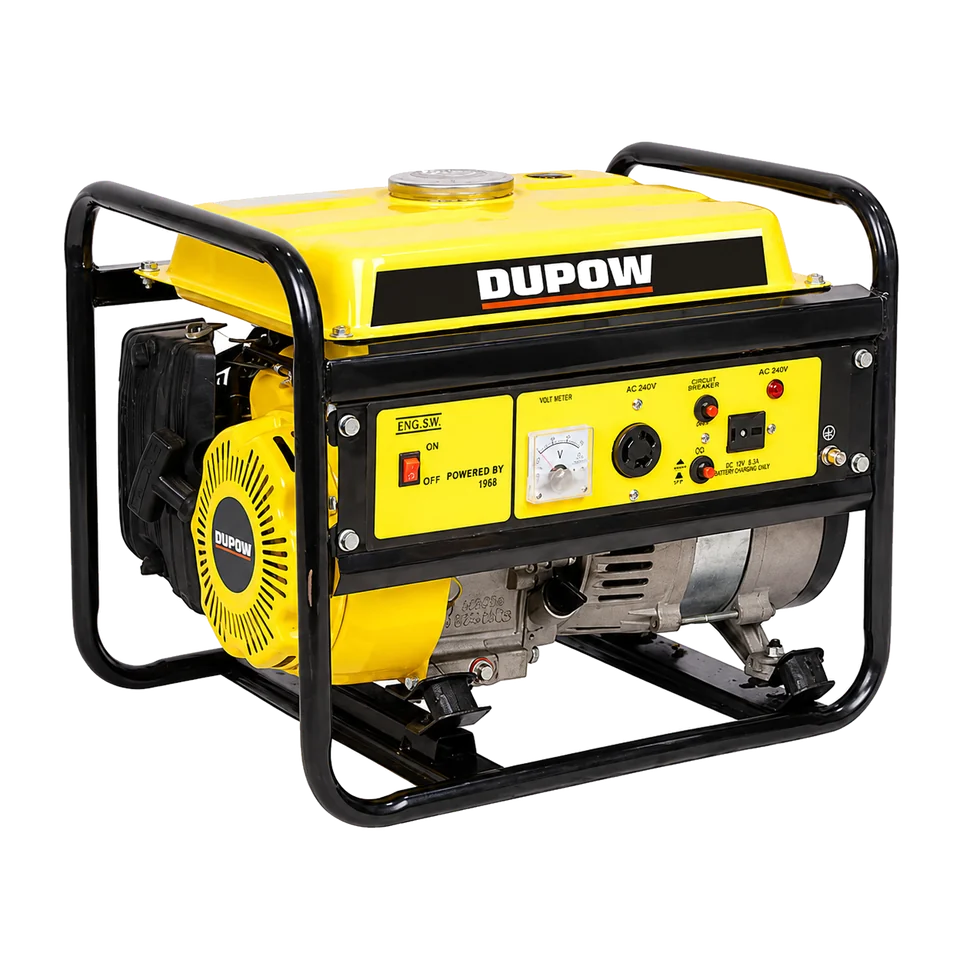

0.9–1.0 kVA Rated Standard Open-Frame Gasoline Generator
1 listed configuration · Family DUP-GG-004
A compact four-stroke open-frame gasoline generator with recoil start and configurable copper or aluminium alternator output.
| Primary category | Power Generation & Engines |
|---|---|
| Product type | Gasoline Generators |
| Public family | 1.2 kVA Class Gasoline Generators |
| Configurations | 1 |
| Power source | Gasoline |
| Battery platform | Not applicable |
| Motor type | Configuration to confirm |
Voltage, plug, exact configuration, compliance documents, packaging and branding are confirmed for the destination market before quotation or order placement. The commercial terms below are planning references; final terms are confirmed in the quotation.
QUICK FAMILY COMPARISON
Compare nearby Gasoline Generators options
Review the closest product families, then add the relevant options to one inquiry.
| Family | Product | Key specifications | Power | Inquiry |
|---|---|---|---|---|
| DUP-GG-003 | 0.65 kVA Rated Carry-Handle Two-Stroke Gasoline Generator | Frequency: 50 / 60 Hz Maximum output: 0.8 kVA copper / 0.65 kVA aluminium | Gasoline | |
| DUP-GG-004 Current page | 0.9–1.0 kVA Rated Standard Open-Frame Gasoline Generator | Frequency: 50 / 60 Hz Maximum output: 1.2 kVA copper / 1.0 kVA aluminium | Gasoline | Current family |
| DUP-GG-005 | 0.9–1.0 kVA Rated Panel-Frame Gasoline Generator | Frequency: 50 / 60 Hz Maximum output: 1.2 kVA copper / 1.0 kVA aluminium | Gasoline | |
| DUP-GG-006 | 0.9–1.0 kVA Rated Sloped-Panel Gasoline Generator | Frequency: 50 / 60 Hz Maximum output: 1.2 kVA copper / 1.0 kVA aluminium | Gasoline |
COMMERCIAL TERMS
Planning reference for this family
- Typical MOQ
- 100 units Power Generation & Engines
- Sample lead time
- Around 7 days After specifications are confirmed
- Production lead time
- Around 30 days After sample and packaging approval
- OEM
- Welcome Scope confirmed for each program
These are planning references for typical standard configurations, not a binding quotation. MOQ may vary with the model, OEM scope, customized colors, packaging, voltage, plug type and certification requirements. The final MOQ and schedule are confirmed for each quotation and order.
COMPLIANCE DOCUMENTS
Redacted model-family previews available
An internal supplier/model-family review found a documented base-model or explicit variant relationship for this DUPOW family. The public images are further-sanitized summaries, not original documents.
Important: A preview is evidence of a reviewed model-family relationship, not a product certification badge or a promise that every configuration is currently covered. Exact applicability, validity and destination-market requirements are reconfirmed for the ordered configuration before quotation or document release.
CONFIGURATION MATRIX
Choose the right configuration
Use the DUPOW configuration reference in your inquiry. Final market version, accessories and packaging remain subject to confirmation.
| Product view | Inquiry reference | Configuration | Reviewed specifications |
|---|---|---|---|
 | DUP-GG-004Lead configuration | Current reviewed configuration | Frequency: 50 / 60 HzMaximum output: 1.2 kVA copper / 1.0 kVA aluminiumRated output: 1.0 kVA copper / 0.9 kVA aluminiumRated AC voltage options: 115 / 230 / 120 / 240 VPhase / power factor: Single phase / cos φ = 1DC output: 12 V / 8.3 AStarting system: RecoilNoise level at 7 m: 65–68 dB(A)Fuel tank: 5 LContinuous operating time: 5 hEngine: 98 cc single-cylinder air-cooled OHV four-strokeLubricating oil: SAE 10W-30 / 0.35 LPackage: Outer carton: 460 × 370 × 375 mm. Quantity: 1 set/ctn. Net / gross weight: 24 / 25 kg. Loading: 450 sets/20 ft; 1,120 sets/40 HQ.Certification documentation available upon request. |
