PRODUCT FAMILY

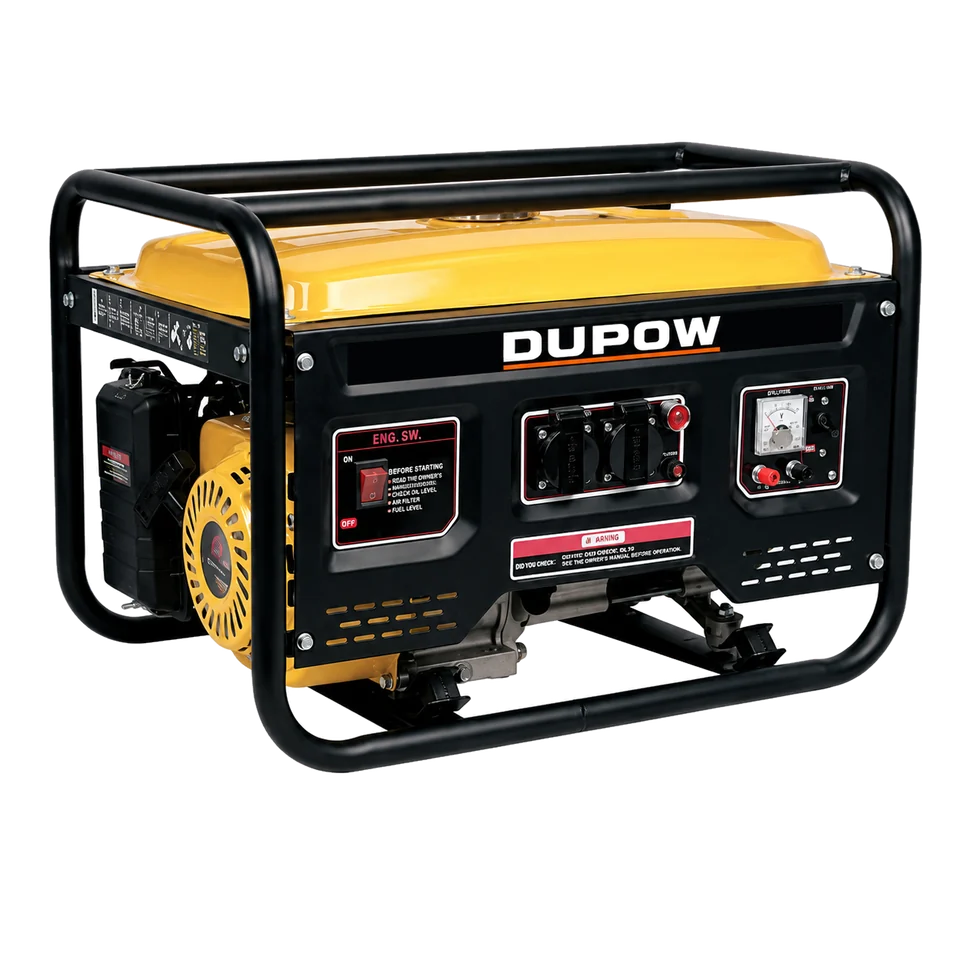

2.5–3.0 kVA Rated Wide-Panel Gasoline Generator
1 listed configuration · Family DUP-GG-009
A configurable 3 kVA-class gasoline generator with a wide control-panel layout for single- or three-phase programs.
| Primary category | Power Generation & Engines |
|---|---|
| Product type | Gasoline Generators |
| Public family | 3 kVA Class Gasoline Generators |
| Configurations | 1 |
| Power source | Gasoline |
| Battery platform | Not applicable |
| Motor type | Configuration to confirm |
Voltage, plug, exact configuration, compliance documents, packaging and branding are confirmed for the destination market before quotation or order placement. The commercial terms below are planning references; final terms are confirmed in the quotation.
QUICK FAMILY COMPARISON
Compare nearby Gasoline Generators options
Review the closest product families, then add the relevant options to one inquiry.
| Family | Product | Key specifications | Power | Inquiry |
|---|---|---|---|---|
| DUP-GG-008 | 2.5–3.0 kVA Rated Open-Frame Gasoline Generator | Frequency: 50 / 60 Hz Maximum output options: 3.0 kVA copper / 2.8 kVA aluminium; 3.2 kVA copper / 3.0 kVA aluminium | Gasoline | |
| DUP-GG-009 Current page | 2.5–3.0 kVA Rated Wide-Panel Gasoline Generator | Frequency: 50 / 60 Hz Maximum output options: 3.0 kVA copper / 2.8 kVA aluminium; 3.2 kVA copper / 3.0 kVA aluminium | Gasoline | Current family |
| DUP-GG-010 | 2.5–3.0 kVA Rated Enclosed-Top Gasoline Generator | Frequency: 50 / 60 Hz Maximum output options: 3.0 kVA copper / 2.8 kVA aluminium; 3.2 kVA copper / 3.0 kVA aluminium | Gasoline | |
| DUP-GG-011 | 2.5–3.0 kVA Rated Wheeled Gasoline Generator | Frequency: 50 / 60 Hz Maximum output options: 3.0 kVA copper / 2.8 kVA aluminium; 3.2 kVA copper / 3.0 kVA aluminium | Gasoline |
COMMERCIAL TERMS
Planning reference for this family
- Typical MOQ
- 100 units Power Generation & Engines
- Sample lead time
- Around 7 days After specifications are confirmed
- Production lead time
- Around 30 days After sample and packaging approval
- OEM
- Welcome Scope confirmed for each program
These are planning references for typical standard configurations, not a binding quotation. MOQ may vary with the model, OEM scope, customized colors, packaging, voltage, plug type and certification requirements. The final MOQ and schedule are confirmed for each quotation and order.
COMPLIANCE DOCUMENTS
Redacted model-family previews available
An internal supplier/model-family review found a documented base-model or explicit variant relationship for this DUPOW family. The public images are further-sanitized summaries, not original documents.
Important: A preview is evidence of a reviewed model-family relationship, not a product certification badge or a promise that every configuration is currently covered. Exact applicability, validity and destination-market requirements are reconfirmed for the ordered configuration before quotation or document release.
CONFIGURATION MATRIX
Choose the right configuration
Use the DUPOW configuration reference in your inquiry. Final market version, accessories and packaging remain subject to confirmation.
| Product view | Inquiry reference | Configuration | Reviewed specifications |
|---|---|---|---|
 | DUP-GG-009Lead configuration | Current reviewed configuration | Frequency: 50 / 60 HzMaximum output options: 3.0 kVA copper / 2.8 kVA aluminium; 3.2 kVA copper / 3.0 kVA aluminiumRated output options: 2.8 kVA copper / 2.5 kVA aluminium; 3.0 kVA copper / 2.6 kVA aluminiumRated AC voltage options: 115 / 230 / 120 / 240 / 230–400 VPhase / power factor: Single phase cos φ = 1 or three phase cos φ = 0.8DC output: 12 V / 8.3 AStarting options: Recoil / electricNoise level at 7 m: 68–72 dB(A)Fuel tank: 12 LContinuous operating time options: 5.5 / 5 hEngine options: 212 / 223 cc single-cylinder air-cooled OHV four-strokeLubricating oil: SAE 10W-30 / 0.6 LPackage: Outer carton: 605 × 440 × 440 mm. Quantity: 1 set/ctn. Net / gross weight: 44.5 / 46 kg. Loading: 240 sets/20 ft; 598 sets/40 HQ.Certification documentation available upon request. |
