PRODUCT FAMILY

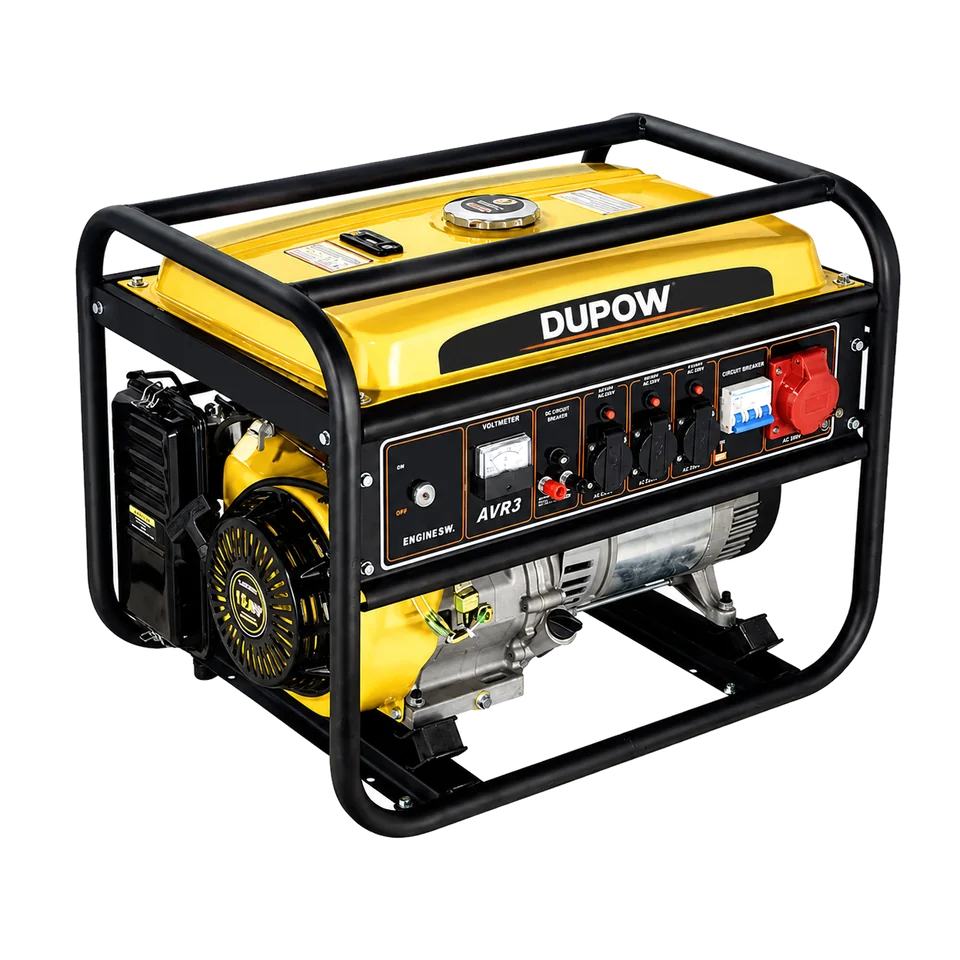

5.5–7.0 kVA Rated Multi-Socket Gasoline Generator
1 listed configuration · Family DUP-GG-013
A heavy-duty open-frame gasoline generator with an expanded control-panel layout and configurable output options.
| Primary category | Power Generation & Engines |
|---|---|
| Product type | Gasoline Generators |
| Public family | 7.5 kVA Class Gasoline Generators |
| Configurations | 1 |
| Power source | Gasoline |
| Battery platform | Not applicable |
| Motor type | Configuration to confirm |
Voltage, plug, exact configuration, compliance documents, packaging and branding are confirmed for the destination market before quotation or order placement. The commercial terms below are planning references; final terms are confirmed in the quotation.
QUICK FAMILY COMPARISON
Compare nearby Gasoline Generators options
Review the closest product families, then add the relevant options to one inquiry.
| Family | Product | Key specifications | Power | Inquiry |
|---|---|---|---|---|
| DUP-GG-012 | 5.5–7.0 kVA Rated Open-Frame Gasoline Generator | Frequency: 50 / 60 Hz Maximum output: 7.5 kVA copper / 6.0 kVA aluminium | Gasoline | |
| DUP-GG-013 Current page | 5.5–7.0 kVA Rated Multi-Socket Gasoline Generator | Frequency: 50 / 60 Hz Maximum output: 7.5 kVA copper / 6.0 kVA aluminium | Gasoline | Current family |
| DUP-GG-014 | 5.5–7.0 kVA Rated Recessed-Panel Gasoline Generator | Frequency: 50 / 60 Hz Maximum output: 7.5 kVA copper / 6.0 kVA aluminium | Gasoline | |
| DUP-GG-015 | 5.5–7.0 kVA Rated Wheeled Gasoline Generator | Frequency: 50 / 60 Hz Maximum output: 7.5 kVA copper / 6.0 kVA aluminium | Gasoline |
COMMERCIAL TERMS
Planning reference for this family
- Typical MOQ
- 100 units Power Generation & Engines
- Sample lead time
- Around 7 days After specifications are confirmed
- Production lead time
- Around 30 days After sample and packaging approval
- OEM
- Welcome Scope confirmed for each program
These are planning references for typical standard configurations, not a binding quotation. MOQ may vary with the model, OEM scope, customized colors, packaging, voltage, plug type and certification requirements. The final MOQ and schedule are confirmed for each quotation and order.
CONFIGURATION MATRIX
Choose the right configuration
Use the DUPOW configuration reference in your inquiry. Final market version, accessories and packaging remain subject to confirmation.
| Product view | Inquiry reference | Configuration | Reviewed specifications |
|---|---|---|---|
 | DUP-GG-013Lead configuration | Current reviewed configuration | Frequency: 50 / 60 HzMaximum output: 7.5 kVA copper / 6.0 kVA aluminiumRated output: 7.0 kVA copper / 5.5 kVA aluminiumRated AC voltage options: 115 / 230 / 120 / 240 / 230–400 VPhase / power factor: Single phase cos φ = 1 or three phase cos φ = 0.8DC output: 12 V / 8.3 AStarting options: Recoil / electricNoise level at 7 m: 74–78 dB(A)Fuel tank: 25 LContinuous operating time: 5 hEngine: 458 cc single-cylinder air-cooled OHV four-strokeLubricating oil: SAE 10W-30 / 1.1 LPackage: Outer carton: 695 × 530 × 550 mm. Quantity: 1 set/ctn. Net / gross weight: 87.5 / 89 kg. Loading: 136 sets/20 ft; 292 sets/40 HQ.Certification documentation available upon request. |
