PRODUCT FAMILY
3.5 kVA Rated Open-Frame Inverter Generator
1 listed configuration · Family DUP-IG-009

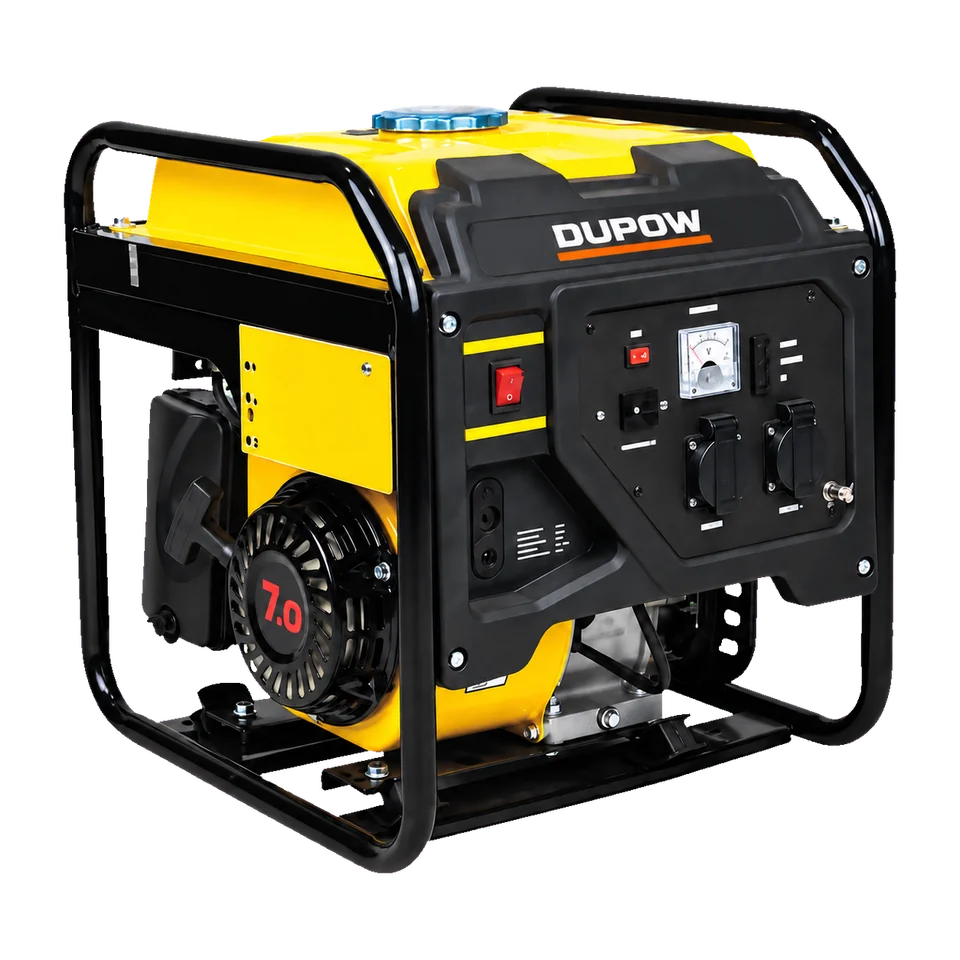

A yellow open-frame gasoline inverter generator rated at 3.5 kVA, with recoil start, AC voltage options and USB plus 12 V DC output.
| Primary category | Power Generation & Engines |
|---|---|
| Product type | Inverter Generators |
| Public family | Open-Frame Inverter Generators |
| Configurations | 1 |
| Power source | Gasoline |
| Battery platform | Not applicable |
| Motor type | Configuration to confirm |
Voltage, plug, exact configuration, compliance documents, packaging and branding are confirmed for the destination market before quotation or order placement. The commercial terms below are planning references; final terms are confirmed in the quotation.
QUICK FAMILY COMPARISON
Compare nearby Inverter Generators options
Review the closest product families, then add the relevant options to one inquiry.
| Family | Product | Key specifications | Power | Inquiry |
|---|---|---|---|---|
| DUP-IG-006 | 6.0 kW Rated Remote-Start Inverter Generator | Frequency: 50 Hz Running / maximum power: 6,000 W / 6,200 W | Gasoline | |
| DUP-IG-007 | 8.2 kW Rated Remote-Start Inverter Generator | Frequency: 50 Hz Running / maximum power: 8,200 W / 8,500 W | Gasoline | |
| DUP-IG-008 | 2.8 kVA Rated Open-Frame Inverter Generator | Frequency: 50 / 60 Hz Rated / maximum output: 2.8 kVA / 3.0 kVA | Gasoline | |
| DUP-IG-009 Current page | 3.5 kVA Rated Open-Frame Inverter Generator | Frequency: 50 / 60 Hz Rated / maximum output: 3.5 kVA / 3.8 kVA | Gasoline | Current family |
COMMERCIAL TERMS
Planning reference for this family
- Typical MOQ
- 100 units Power Generation & Engines
- Sample lead time
- Around 7 days After specifications are confirmed
- Production lead time
- Around 30 days After sample and packaging approval
- OEM
- Welcome Scope confirmed for each program
These are planning references for typical standard configurations, not a binding quotation. MOQ may vary with the model, OEM scope, customized colors, packaging, voltage, plug type and certification requirements. The final MOQ and schedule are confirmed for each quotation and order.
CONFIGURATION MATRIX
Choose the right configuration
Use the DUPOW configuration reference in your inquiry. Final market version, accessories and packaging remain subject to confirmation.
| Product view | Inquiry reference | Configuration | Reviewed specifications |
|---|---|---|---|
 | DUP-IG-009Lead configuration | Current reviewed configuration | Frequency: 50 / 60 HzRated / maximum output: 3.5 kVA / 3.8 kVARated AC voltage options: 110 / 120 / 220 / 230 / 240 / 120–240 VDC output: USB 5 V / 2.1 A plus 12 V DCStarting system: RecoilNoise level at 7 m: 60–65 dB(A)Fuel tank: 11.5 LContinuous operating time: 5.5 hEngine: Four-stroke gasoline / 212 ccIgnition: T.C.I. transistor ignitionPackage: Outer carton: 480 × 410 × 490 mm. Quantity: 1 set/ctn. Net / gross weight: 30 kg / 31.5 kg. Loading: 228 sets/20 ft; 675 sets/40 HQ.Certification documentation available upon request. |
