Reviewed configuration
- Rated voltage: 110–240 V
- Frequency: 50/60 Hz
- Rated input: 850 W
- No-load speed: 0–3,000 rpm
DUP-JS-001
PRODUCT FAMILY

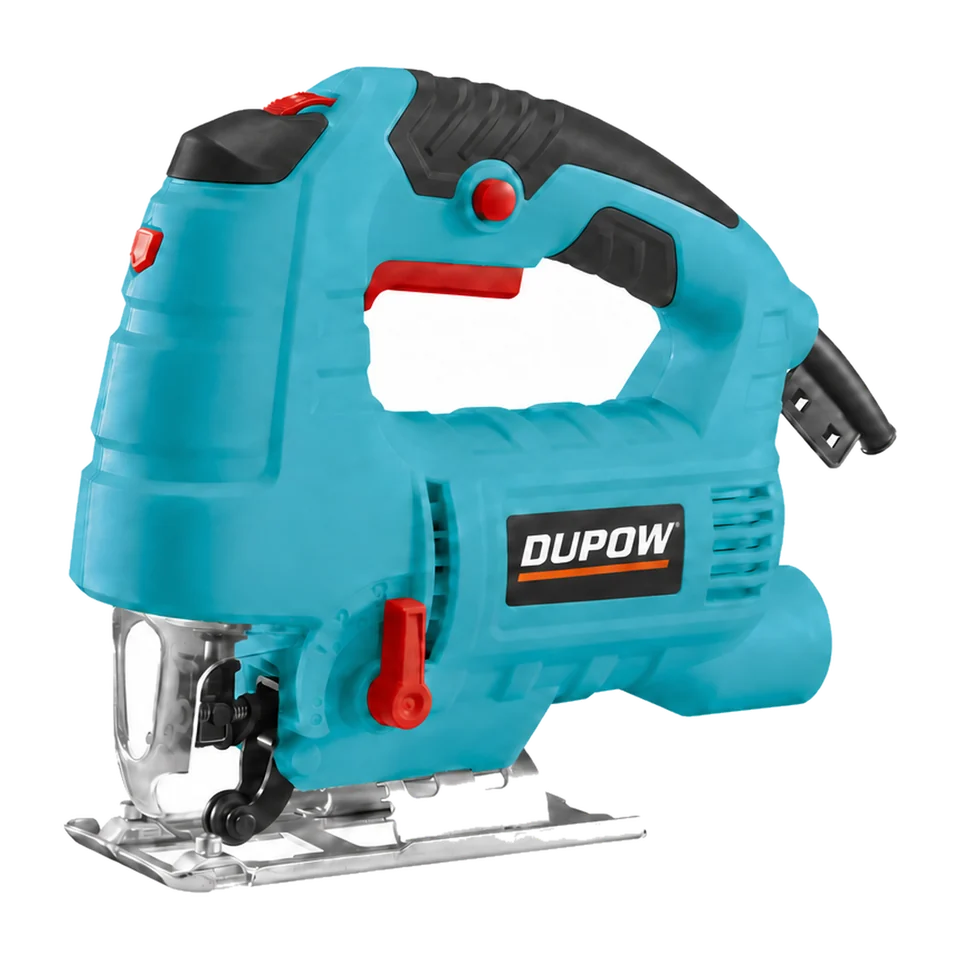

850W Laser Orbital Jigsaw with Tool-Free Blade Change
1 listed configuration · Family DUP-JS-001
A corded jigsaw configured for 80 mm wood and 8 mm steel, with a no-load speed up to 3,000 rpm.
| Primary category | Handheld Saws & Cutting |
|---|---|
| Product type | Jig Saws |
| Public family | Jig Saws |
| Configurations | 1 |
| Power source | Corded |
| Battery platform | Not applicable |
| Motor type | Brushed |
Configuration and evidence check
Voltage, plug, exact configuration, compliance documents, packaging and branding are confirmed for the destination market before quotation or order placement. The commercial terms below are planning references; final terms are confirmed in the quotation.
B2B BUYER'S GUIDE
Review DUP-JS-001 for your product program
A corded jigsaw configured for 80 mm wood and 8 mm steel, with a no-load speed up to 3,000 rpm. This review keeps application, exact configuration, commercial terms and document status connected.
Buyer applications
- Curved and straight cutting in specified materials
- Orbital-action, speed-control and blade-system comparison
- Workshop, installer and DIY range development
Confirm before quotation
- Confirm the intended application against Rated voltage: 110–240 V
- Confirm the complete corded configuration and included accessories
- Approve branding, packaging, labels and manual language against the sample
- Review exact-model documents for the destination market before any claim
Application examples are selection guidance, not a performance guarantee. The exact sample, ordered configuration and destination-market requirements remain the approval basis.
QUICK FAMILY COMPARISON
Compare nearby Jig Saws options
Review the closest product families, then add the relevant options to one inquiry.
| Family | Product | Key specifications | Power | Inquiry |
|---|---|---|---|---|
| DUP-JS-001 Current page | 850W Laser Orbital Jigsaw with Tool-Free Blade Change | Rated voltage: 110–240 V Frequency: 50/60 Hz | Corded | Current family |
| DUP-JS-002 | 750W Variable-Speed Orbital Jigsaw | Rated voltage: 110–240 V Frequency: 50/60 Hz | Corded | |
| DUP-JS-003 | 650W Variable-Speed Orbital Jigsaw | Rated voltage: 110–240 V Frequency: 50/60 Hz | Corded | |
| DUP-JS-004 | 400/500W 6-Speed Compact Jigsaw | Rated voltage: 110–240 V Frequency: 50/60 Hz | Corded |
COMMERCIAL TERMS
Planning reference for this family
- Typical MOQ
- 500 units Handheld Saws & Cutting
- Sample lead time
- Around 7 days After specifications are confirmed
- Production lead time
- Around 30 days After sample and packaging approval
- OEM
- Welcome Scope confirmed for each program
These are planning references for typical standard configurations, not a binding quotation. MOQ may vary with the model, OEM scope, customized colors, packaging, voltage, plug type and certification requirements. The final MOQ and schedule are confirmed for each quotation and order.
COMPLIANCE DOCUMENTS
Redacted previews available for this family
An internal source-model cross-check found an exact textual match between this DUPOW family and the supplier-held document represented below. The public image is a further-sanitized summary, not the original document.
Important: A preview link is evidence of a reviewed source-model match, not a product certification badge or a promise that every configuration is currently covered. Exact applicability, validity and destination-market requirements are reconfirmed for the ordered configuration before quotation or document release.
CONFIGURATION MATRIX
Choose the right configuration
Use the DUPOW configuration reference in your inquiry. Final market version, accessories and packaging remain subject to confirmation.
| Product view | Inquiry reference | Configuration | Reviewed specifications |
|---|---|---|---|
 | DUP-JS-001Lead configuration | Current reviewed configuration | Rated voltage: 110–240 VFrequency: 50/60 HzRated input: 850 WNo-load speed: 0–3,000 rpmMaximum cutting capacity in wood: 80 mmMaximum cutting capacity in steel: 8 mm6-position speed controlOrbital-action settingTool-free blade changeLaser guide availableStandard accessories: Hex key, Wood-cutting blade, Parallel guide, Spare carbon-brush pair, Instruction manualPackage: Individual box: 250 × 85 × 225 mm. Outer carton: 515 × 445 × 240 mm. Quantity: 10 pcs/ctn. Net weight: To be confirmed. Gross weight: 24.5 kg. Container loading quantities: To be confirmed.Certification documentation available upon request. |
BUYER QUESTIONS
Before you request a quotation
Model-level answers for sourcing, OEM and document review.
What is DUP-JS-001 intended for?
A corded jigsaw configured for 80 mm wood and 8 mm steel, with a no-load speed up to 3,000 rpm.
What should be confirmed before requesting DUP-JS-001?
Confirm the destination market, intended application, quantity, corded configuration, required accessories, packaging and branding scope. The exact sample remains the approval reference.
Can DUP-JS-001 be supplied for OEM or private-label programs?
OEM coordination is available subject to exact-model and order review. The current MOQ planning reference is 500 units; final MOQ, cost, timing and customization scope are confirmed in the quotation.
What is the document status for DUP-JS-001?
A privacy-safe public summary is linked on this product page because an internal source-model cross-check found an exact textual match. It is not a certification badge; validity, ordered configuration and destination-market applicability are reconfirmed before quotation or document release.
