PRODUCT FAMILY

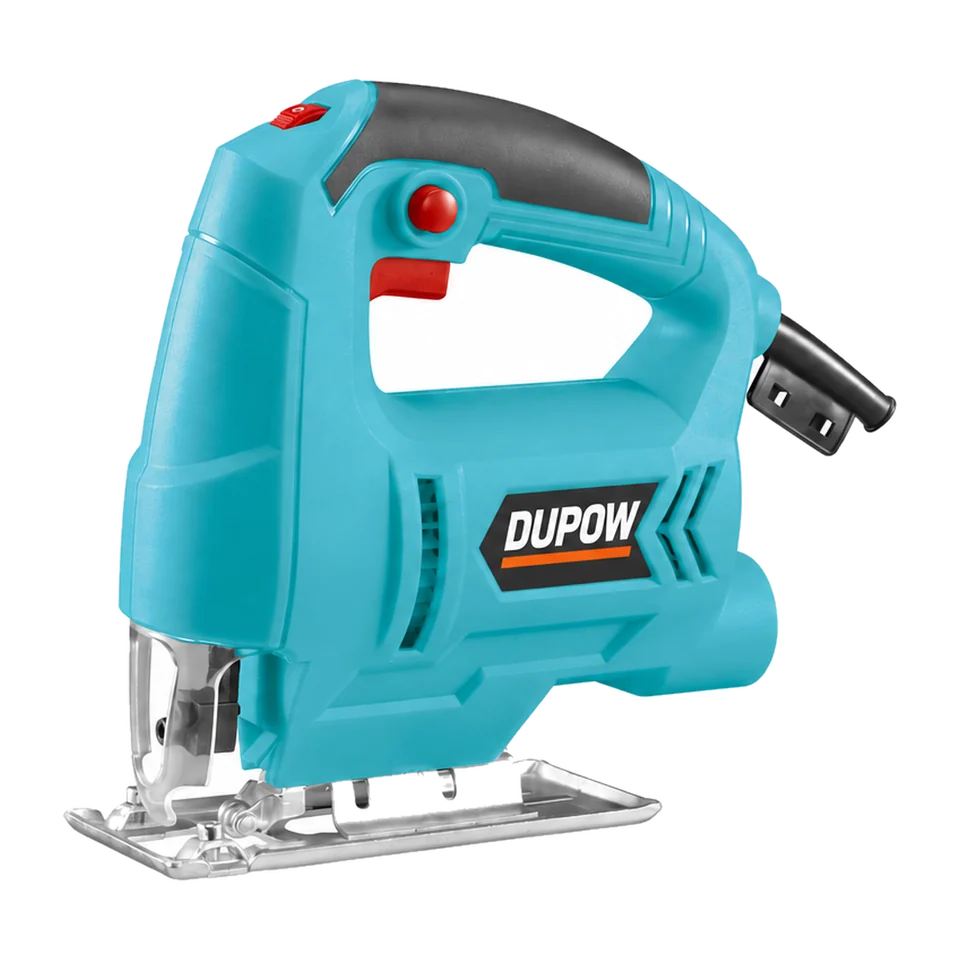

400/500W Fixed or Variable-Speed Jigsaw
1 listed configuration · Family DUP-JS-012
A corded jigsaw configured for 55 mm wood and 5 mm steel, with a no-load speed up to 3,000 rpm.
| Primary category | Handheld Saws & Cutting |
|---|---|
| Product type | Jig Saws |
| Public family | Jig Saws |
| Configurations | 1 |
| Power source | Corded |
| Battery platform | Not applicable |
| Motor type | Brushed |
Voltage, plug, exact configuration, compliance documents, packaging and branding are confirmed for the destination market before quotation or order placement. The commercial terms below are planning references; final terms are confirmed in the quotation.
QUICK FAMILY COMPARISON
Compare nearby Jig Saws options
Review the closest product families, then add the relevant options to one inquiry.
| Family | Product | Key specifications | Power | Inquiry |
|---|---|---|---|---|
| DUP-JS-011 | 850W LED Orbital Jigsaw with Optional Laser | Rated voltage: 110–240 V Frequency: 50/60 Hz | Corded | |
| DUP-JS-012 Current page | 400/500W Fixed or Variable-Speed Jigsaw | Rated voltage: 110–240 V Frequency: 50/60 Hz | Corded | Current family |
| DUP-JS-013 | 500W Fixed or Variable-Speed Compact Jigsaw | Rated voltage: 110–240 V Frequency: 50/60 Hz | Corded | |
| DUP-JS-014 | 400/500W 6-Speed Slim-Body Jigsaw | Rated voltage: 110–240 V Frequency: 50/60 Hz | Corded |
COMMERCIAL TERMS
Planning reference for this family
- Typical MOQ
- 500 units Handheld Saws & Cutting
- Sample lead time
- Around 7 days After specifications are confirmed
- Production lead time
- Around 30 days After sample and packaging approval
- OEM
- Welcome Scope confirmed for each program
These are planning references for typical standard configurations, not a binding quotation. MOQ may vary with the model, OEM scope, customized colors, packaging, voltage, plug type and certification requirements. The final MOQ and schedule are confirmed for each quotation and order.
COMPLIANCE DOCUMENTS
Redacted previews available for this family
An internal source-model cross-check found an exact textual match between this DUPOW family and the supplier-held document represented below. The public image is a further-sanitized summary, not the original document.
Important: A preview link is evidence of a reviewed source-model match, not a product certification badge or a promise that every configuration is currently covered. Exact applicability, validity and destination-market requirements are reconfirmed for the ordered configuration before quotation or document release.
CONFIGURATION MATRIX
Choose the right configuration
Use the DUPOW configuration reference in your inquiry. Final market version, accessories and packaging remain subject to confirmation.
| Product view | Inquiry reference | Configuration | Reviewed specifications |
|---|---|---|---|
 | DUP-JS-012Lead configuration | Current reviewed configuration | Rated voltage: 110–240 VFrequency: 50/60 HzRated input: 400 W / 500 WNo-load speed: 3,000 rpm / 0–3,000 rpmMaximum cutting capacity in wood: 55 mmMaximum cutting capacity in steel: 5 mmRated input options: 400 W / 500 WA configuration: fixed speed; T configuration: variable speedStandard accessories: Hex key, Wood-cutting blade, Spare carbon-brush pair, Instruction manualPackage: Individual box: 235 × 75 × 220 mm. Outer carton: 485 × 395 × 235 mm. Quantity: 10 pcs/ctn. Net weight: To be confirmed. Gross weight: 17 kg. Container loading quantities: To be confirmed.Certification documentation available upon request. |
