PRODUCT FAMILY

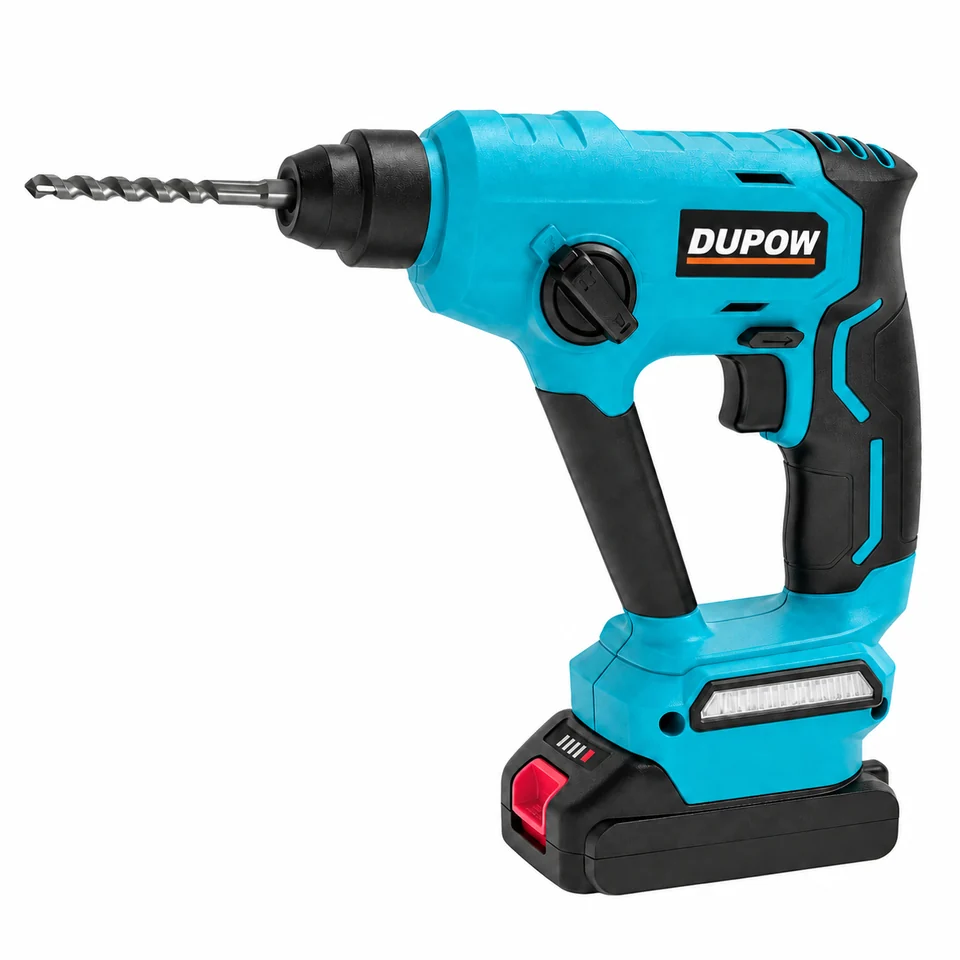

20V Brushless 13 mm Cordless Rotary Hammer
1 listed configuration · Family DUP-RH-001
A compact SDS-plus rotary hammer for drilling concrete, steel and wood, with 1.2 J impact energy.
| Primary category | Drilling & Fastening |
|---|---|
| Product type | Rotary Hammers |
| Public family | Cordless Rotary Hammers |
| Configurations | 1 |
| Power source | Cordless |
| Battery platform | 20V Battery Platform |
| Motor type | Brushless |
Voltage, plug, exact configuration, compliance documents, packaging and branding are confirmed for the destination market before quotation or order placement. The commercial terms below are planning references; final terms are confirmed in the quotation.
QUICK FAMILY COMPARISON
Compare nearby Rotary Hammers options
Review the closest product families, then add the relevant options to one inquiry.
| Family | Product | Key specifications | Power | Inquiry |
|---|---|---|---|---|
| DUP-RH-001 Current page | 20V Brushless 13 mm Cordless Rotary Hammer | Battery: 18 V, 4 Ah (20V Max platform) Impact rate: 0–4,800 bpm | 20V Battery Platform | Current family |
| DUP-RH-002 | 20V 20 mm Cordless Rotary Hammer | Battery voltage: 18 V DC (20V Max platform) Impact rate: 0–5,000 bpm | 20V Battery Platform | |
| DUP-RH-003 | 20V 22 mm Cordless Rotary Hammer | Battery voltage: 18 V DC (20V Max platform) Impact rate: 0–5,000 bpm | 20V Battery Platform | |
| DUP-RH-004 | 20V 24 mm Cordless Rotary Hammer | Battery voltage: 18 V DC (20V Max platform) Impact rate: 0–5,000 bpm | 20V Battery Platform |
COMMERCIAL TERMS
Planning reference for this family
- Typical MOQ
- 500 units Drilling & Fastening
- Sample lead time
- Around 7 days After specifications are confirmed
- Production lead time
- Around 30 days After sample and packaging approval
- OEM
- Welcome Scope confirmed for each program
These are planning references for typical standard configurations, not a binding quotation. MOQ may vary with the model, OEM scope, customized colors, packaging, voltage, plug type and certification requirements. The final MOQ and schedule are confirmed for each quotation and order.
CONFIGURATION MATRIX
Choose the right configuration
Use the DUPOW configuration reference in your inquiry. Final market version, accessories and packaging remain subject to confirmation.
| Product view | Inquiry reference | Configuration | Reviewed specifications |
|---|---|---|---|
 | DUP-RH-001Lead configuration | Current reviewed configuration | Battery: 18 V, 4 Ah (20V Max platform)Impact rate: 0–4,800 bpmNo-load speed: 0–1,100 rpmMaximum impact energy: 1.2 JMaximum drilling: steel 10 mm; concrete 13 mm; wood 16 mmToolholder: SDS-plusWeight including battery: 1.6 kg (catalogue wording also states bare tool)Package: Outer carton: 61 × 36 × 30 cm. Quantity: 5 pcs/ctn. Net weight: To be confirmed. Gross weight: To be confirmed. Container loading (20 ft / 40 ft / 40 ft HQ): 2,100 pcs / 4,340 pcs / To be confirmed.Certification documentation available upon request. |
