Key performance & functions
- Rated output: 5.5 kVA
- Maximum output: 6.0 kVA
DUP-SDG-003
Silent Diesel Generators

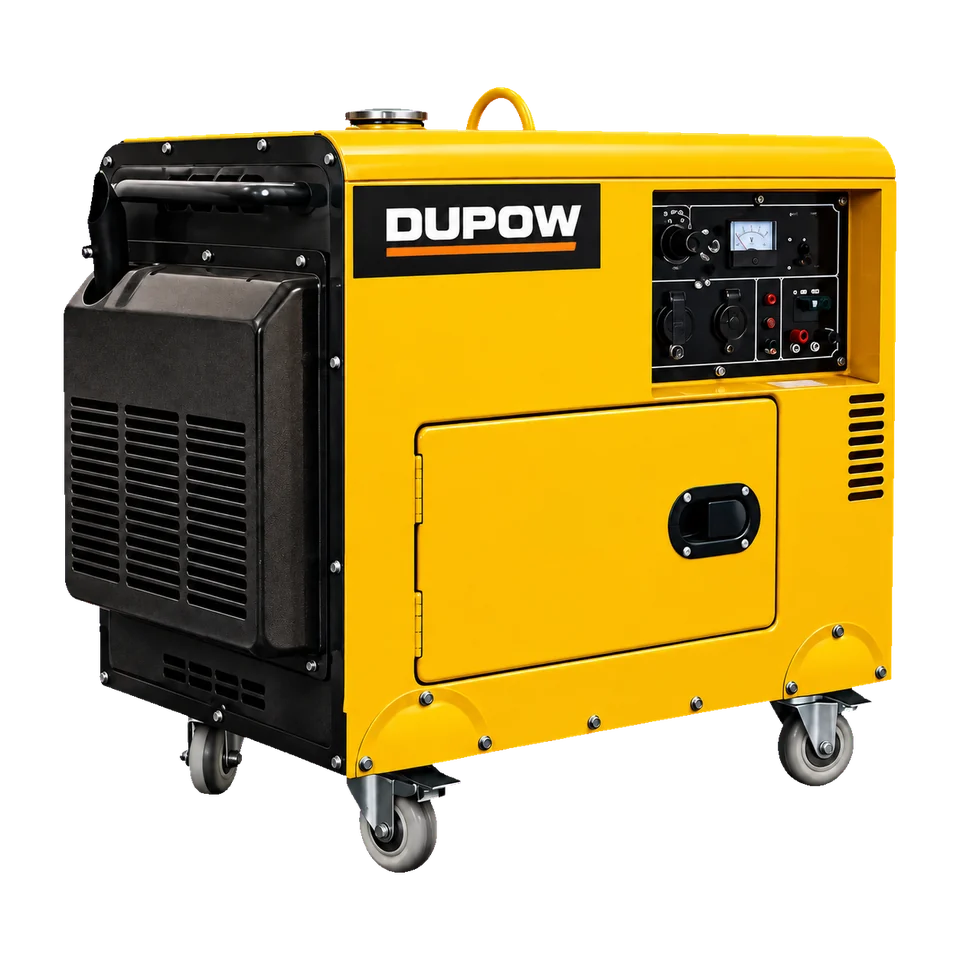

5.5 kVA Rated Silent Diesel Generator — DUP-SDG-003
Model DUP-SDG-003
An enclosed silent diesel generator rated at 5.5 kVA, with recoil or electric start options and an enclosed low-noise service-access housing for backup and commercial power programs.
- 5.5 kVA · Rated output
The stated operating rating for this model.
- 6.0 kVA · Maximum output
Maximum rating; distinguish this value from the continuous operating rating.
- Single phase cos φ = 1 or three phase cos φ = 0.8 · Phase / power factor
The stated power rating for this configuration.
Email this familyWhatsApp Ivan
Direct B2B contact: model and page link are prefilled; add your market and quantity.
5.5 kVARated output
6.0 kVAMaximum output
Single phase cos φ = 1 or three phase cos φ = 0.8Phase / power factor
FEATURES IN FOCUS
Enclosed diesel power
Rated output: 5.5 kVA · Maximum output: 6.0 kVA · Phase / power factor: Single phase cos φ = 1 or three phase cos φ = 0.8
THE MODEL, CLEARLY SPECIFIED
Product specifications
View the complete specifications for DUP-SDG-003
| Primary category | Power Generation & Engines |
|---|---|
| Product type | Silent Diesel Generators |
| Public family | Silent Diesel Generators |
| Order configuration | Confirmed in quotation |
| Power source | Diesel |
CONFIGURATION MATRIX
Choose the right configuration
Tell us the model, order quantity and destination market. We will put together the accessory, branding and packaging options in your quotation.
| Product view | Inquiry reference | Configuration | Product specifications |
|---|---|---|---|
 | DUP-SDG-003Lead configuration | Generator enclosure and control-panel view. | Frequency: 50 / 60 HzRated output: 5.5 kVAMaximum output: 6.0 kVARated AC voltage options: 110 / 230 / 120–240 / 230–400 V or destination-market configurationPhase / power factor: Single phase cos φ = 1 or three phase cos φ = 0.8DC output: 12 V / 8.3 A where specifiedStarting system: Recoil or electric startNoise level at 7 m: 68–72 dB(A)Fuel tank: 16 LRuntime: 6.2 hEngine: LBD192F / 498 cc direct-injection air-cooled dieselPackage: Outer carton: 940 × 540 × 670 mm. Net / gross weight: 147 kg / 157 kg. Loading: 72 sets/20 ft; 191 sets/40 HQ. |
WHOLESALE & PRIVATE LABEL
Build your order around DUP-SDG-003.
Send the model, quantity and destination market, together with the required accessories, branding and packing. For cordless tools, include the tool-only or kit format, battery model and charger requirements.
- Typical MOQ
- 100 units
- Sample time
- Around 7 days
- Production
- Around 30 days
- OEM / Private Label
- Welcome
COMMERCIAL TERMS
Order options and lead times
Find MOQ and lead time above. We can prepare samples, private-label packaging and shipping details with your quotation.
MOQ and lead time depend on the model, kit and branding scope. Your quotation sets out the order quantity, price and production schedule.
B2B BUYER'S GUIDE
Is DUP-SDG-003 right for your product program?
For importers and distributors comparing enclosed silent diesel generators by output, electrical configuration, start system, enclosure, service access and installation requirements.
Typical applications
- Outdoor backup-power programs sized from running and starting loads
- Commercial power ranges requiring enclosed service access
- Destination-market programs with confirmed panel and connection scope
Build your quotation
- Choose your 5.5 kVA version and connected-load profile
- Confirm frequency, voltage, phase, panel, sockets, breaker and start system
- Approve ventilation, exhaust, service clearance, branding, packaging and documentation
We help importers, distributors and private-label buyers build their tool range through product sourcing, samples, branding, packaging and export delivery.
We help you select the tool and accessories for your application, with samples, private-label packaging and export support.
QUICK FAMILY COMPARISON
Compare nearby Silent Diesel Generators options
Compare related models and add your shortlist to one inquiry.
| Model | Product & design | Rated & maximum output | Engine, phase & starting | Fuel | Inquiry |
|---|---|---|---|---|---|
| DUP-SDG-002 |  4.8 kVA Rated Silent Diesel Generator for Commercial Power Programs | Rated output: 4.8 kVA Maximum output: 5.0 kVA | Engine: LBD190F / 477 cc direct-injection air-cooled diesel Starting system: Recoil or electric start Phase / power factor: Single phase cos φ = 1 or three phase cos φ = 0.8 | Diesel | |
| DUP-SDG-003 Current page | 5.5 kVA Rated Silent Diesel Generator for Commercial Power Programs | Rated output: 5.5 kVA Maximum output: 6.0 kVA | Engine: LBD192F / 498 cc direct-injection air-cooled diesel Starting system: Recoil or electric start Phase / power factor: Single phase cos φ = 1 or three phase cos φ = 0.8 | Diesel | Current family |
| DUP-SDG-004 |  6.5 kVA Rated Silent Diesel Generator | Rated output: 6.5 kVA Maximum output: 7.0 kVA | Engine: LBD192F / 498 cc direct-injection air-cooled diesel Starting system: Electric Phase / power factor: Single phase cos φ = 1 or three phase cos φ = 0.8 | Diesel | |
| DUP-SDG-005 |  7.5 kVA Rated Silent Diesel Generator for Commercial Power Programs | Rated output: 7.5 kVA Maximum output: 8.0 kVA | Engine: LBD195F / 532 cc direct-injection air-cooled diesel Starting system: Recoil or electric start Phase / power factor: Single phase cos φ = 1 or three phase cos φ = 0.8 | Diesel |
Compare rated and maximum output, engine, phase and starting method using the published generator data. We prepare the accessory kit, packaging and delivery details with your quotation.
BUYER RESOURCES
Continue the sourcing review
Three focused routes cover product comparison, OEM planning and a clearer RFQ.
Compare Silent Diesel GeneratorsReview nearby output, electrical, enclosure and service-access configurations.→
OEM & private-label processPlan branding, packaging, sample approval and order coordination.→
Build a comparable RFQSend the market, quantity, output, voltage, phase, panel, start and installation requirements and document needs.→
MODEL FAQ
Questions before adding DUP-SDG-003 to an RFQ
Choose the model for your application, then send us your quantity and destination market.
What is DUP-SDG-003 best suited to?
An enclosed silent diesel generator rated at 5.5 kVA, with recoil or electric start options and an enclosed low-noise service-access housing for backup and commercial power programs. It is intended for importers and distributors comparing enclosed silent diesel-generator configurations for commercial and backup power ranges.
Can DUP-SDG-003 be supplied for OEM or private-label orders?
Yes. We support your branding, housing color, labels, manuals and packaging. Typical MOQ is 100 units; send us the model and quantity for your quotation.
What compliance documents are available for DUP-SDG-003?
Ask us about the product documentation required for your destination market when requesting your quotation.
How does DUPOW support my product range?
DUPOW is our tools brand at Ningbo Hopes Import and Export Co., Ltd. We bring together product sourcing, private-label development, quality follow-up and export delivery for your tool range.
What information should I send for a model-specific quotation?
Send the destination market, estimated quantity, voltage and plug, rated and maximum output, voltage, phase, frequency, panel, socket, breaker, start, ventilation and enclosure configuration, intended application, accessories, OEM or packaging scope, and document requirements. DUPOW normally replies by email within one business day.
MODEL-SPECIFIC RFQ
Review DUP-SDG-003 for your market
Add the family to one shortlist, or open the inquiry form with the model already selected.
Compare silent diesel generator models
Compare silent diesel generators by power format, working capacity and the specifications of each model.
