PRODUCT FAMILY

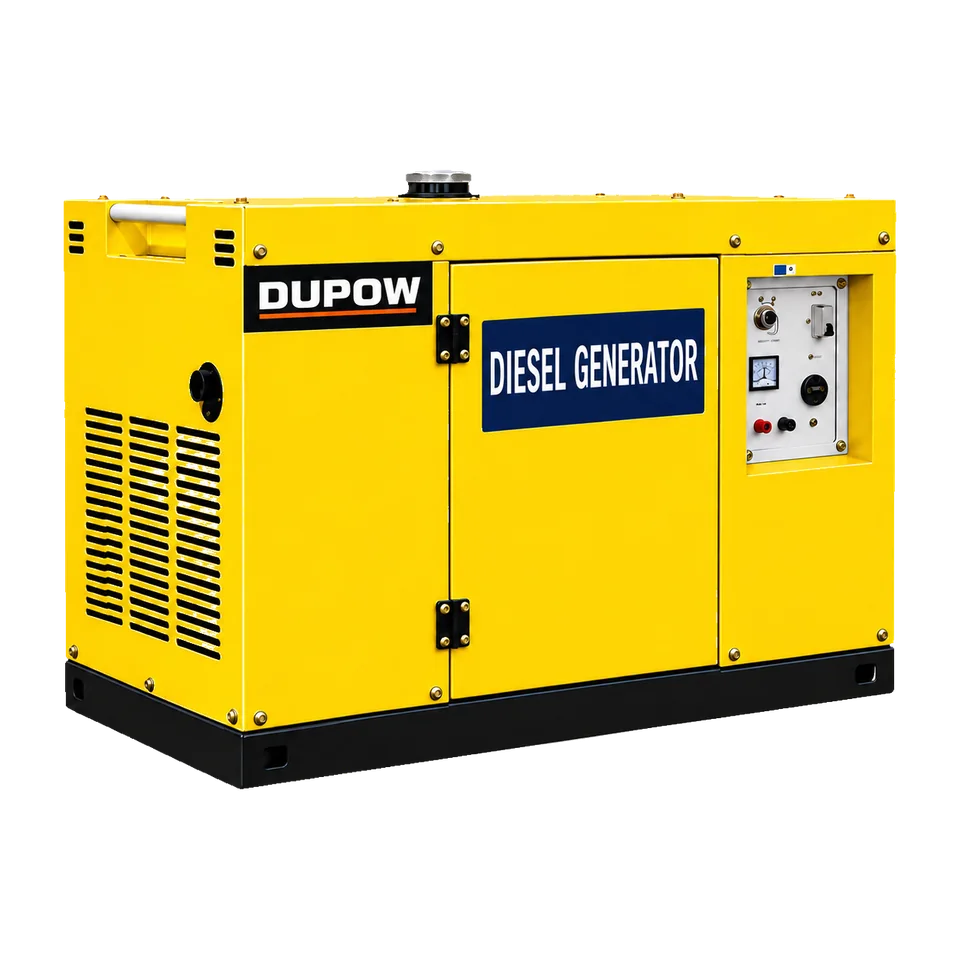

9.5 kVA Rated Silent Diesel Generator
1 listed configuration · Family DUP-SDG-007
An enclosed silent diesel generator rated at 9.5 kVA, with electric start and a weather-protective service-access enclosure for backup and commercial power programs.
| Primary category | Power Generation & Engines |
|---|---|
| Product type | Silent Diesel Generators |
| Public family | Silent Diesel Generators |
| Configurations | 1 |
| Power source | Diesel |
| Battery platform | Not applicable |
| Motor type | Configuration to confirm |
Voltage, plug, exact configuration, compliance documents, packaging and branding are confirmed for the destination market before quotation or order placement. The commercial terms below are planning references; final terms are confirmed in the quotation.
QUICK FAMILY COMPARISON
Compare nearby Silent Diesel Generators options
Review the closest product families, then add the relevant options to one inquiry.
| Family | Product | Key specifications | Power | Inquiry |
|---|---|---|---|---|
| DUP-SDG-006 | 8.0 kVA Rated Silent Diesel Generator | Frequency: 60 Hz Rated output: 8.0 kVA | Diesel | |
| DUP-SDG-007 Current page | 9.5 kVA Rated Silent Diesel Generator | Frequency: 60 Hz Rated output: 9.5 kVA | Diesel | Current family |
| DUP-SDG-008 | 10 / 11 kVA Rated Silent Diesel Generator | Frequency: 50 / 60 Hz Rated output: 10 / 11 kVA | Diesel | |
| DUP-SDG-009 | 12 / 13 kVA Rated Silent Diesel Generator | Frequency: 50 / 60 Hz Rated output: 12 / 13 kVA | Diesel |
COMMERCIAL TERMS
Planning reference for this family
- Typical MOQ
- 100 units Power Generation & Engines
- Sample lead time
- Around 7 days After specifications are confirmed
- Production lead time
- Around 30 days After sample and packaging approval
- OEM
- Welcome Scope confirmed for each program
These are planning references for typical standard configurations, not a binding quotation. MOQ may vary with the model, OEM scope, customized colors, packaging, voltage, plug type and certification requirements. The final MOQ and schedule are confirmed for each quotation and order.
CONFIGURATION MATRIX
Choose the right configuration
Use the DUPOW configuration reference in your inquiry. Final market version, accessories and packaging remain subject to confirmation.
| Product view | Inquiry reference | Configuration | Reviewed specifications |
|---|---|---|---|
 | DUP-SDG-007Lead configuration | Current reviewed configuration | Frequency: 60 HzRated output: 9.5 kVAMaximum output: 10 kVARated AC voltage options: 110 / 230 / 120–240 / 230–400 V or destination-market configurationPhase / power factor: Single phase cos φ = 1 or three phase cos φ = 0.8DC output: 12 V / 8.3 A where specifiedStarting system: ElectricNoise level at 7 m: 72 dB(A)Fuel tank: 28 LRuntime: To be confirmedEngine: LBD1105FE / 740 cc direct-injection air-cooled dieselPackage: Outer carton: 1,145 × 695 × 815 mm. Quantity: 1 set/ctn. Net / gross weight: 220 kg / 223 kg. Loading: 32 sets/20 ft; 102 sets/40 HQ.Certification documentation available upon request. |
