PRODUCT FAMILY

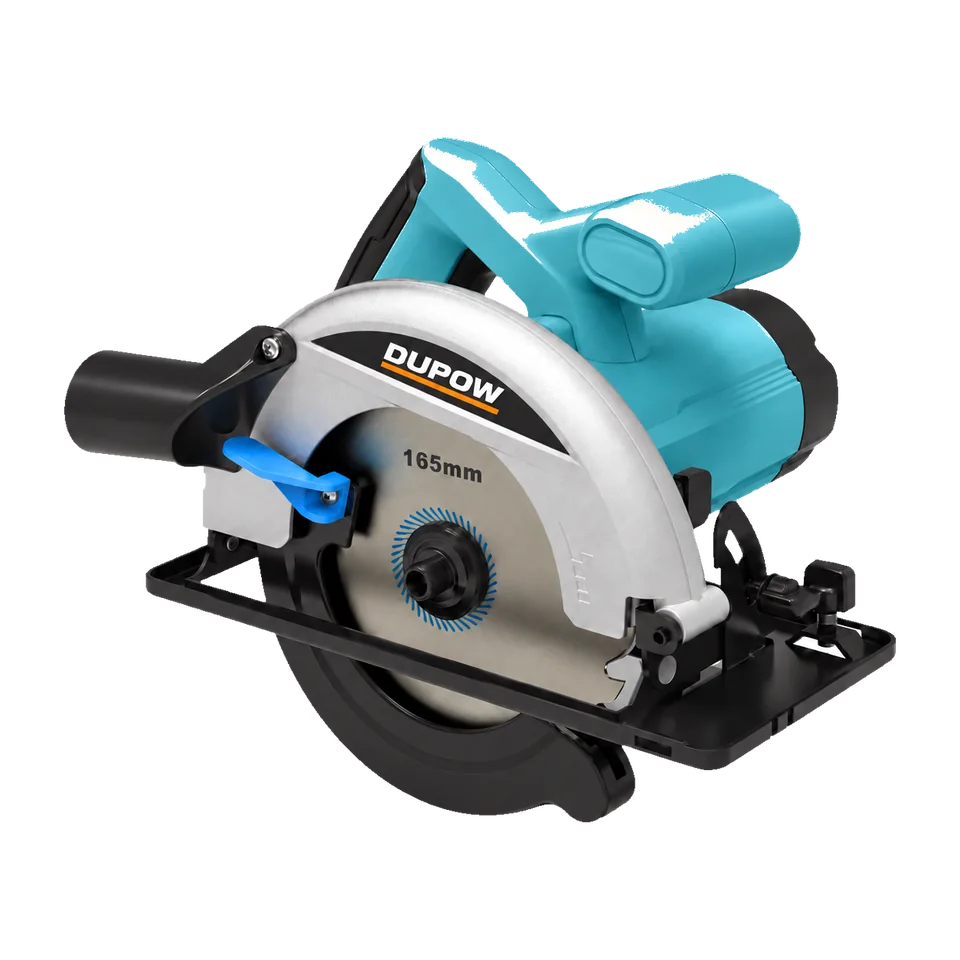

1300W 165 mm Circular Saw
1 listed configuration · Family DUP-CS-001
A 165 mm corded circular saw with a 55 mm maximum 90-degree cutting depth for general timber and sheet-material cutting.
| Primary category | Handheld Saws & Cutting |
|---|---|
| Product type | Circular Saws |
| Public family | Corded Circular Saws |
| Configurations | 1 |
| Power source | Corded |
| Battery platform | Not applicable |
| Motor type | Brushed |
Voltage, plug, exact configuration, compliance documents, packaging and branding are confirmed for the destination market before quotation or order placement. The commercial terms below are planning references; final terms are confirmed in the quotation.
QUICK FAMILY COMPARISON
Compare nearby Circular Saws options
Review the closest product families, then add the relevant options to one inquiry.
| Family | Product | Key specifications | Power | Inquiry |
|---|---|---|---|---|
| DUP-CS-001 Current page | 1300W 165 mm Circular Saw | Rated voltage / frequency: 220–240 V / 50 Hz Rated input: 1,300 W | Corded | Current family |
| DUP-CS-002 | 1600W 190 mm Circular Saw | Rated voltage / frequency: 220–240 V / 50 Hz Rated input: 1,600 W | Corded | |
| DUP-CS-003 | 1800W 210 mm Circular Saw | Rated voltage / frequency: 220–240 V / 50 Hz Rated input: 1,800 W | Corded | |
| DUP-CS-004 | 20V / 40V Brushless 165 mm Circular Saw | Battery voltage: 20 V / 40 V Motor type: Brushless / 6025 | 20V / 40V Battery Platform |
COMMERCIAL TERMS
Planning reference for this family
- Typical MOQ
- 500 units Handheld Saws & Cutting
- Sample lead time
- Around 7 days After specifications are confirmed
- Production lead time
- Around 30 days After sample and packaging approval
- OEM
- Welcome Scope confirmed for each program
These are planning references for typical standard configurations, not a binding quotation. MOQ may vary with the model, OEM scope, customized colors, packaging, voltage, plug type and certification requirements. The final MOQ and schedule are confirmed for each quotation and order.
CONFIGURATION MATRIX
Choose the right configuration
Use the DUPOW configuration reference in your inquiry. Final market version, accessories and packaging remain subject to confirmation.
| Product view | Inquiry reference | Configuration | Reviewed specifications |
|---|---|---|---|
 | DUP-CS-001Lead configuration | Current reviewed configuration | Rated voltage / frequency: 220–240 V / 50 HzRated input: 1,300 WNo-load speed: 5,000 rpmBlade diameter: 165 mmMaximum cut at 90°: 55 mmMaximum cut at 45°: 38 mmNet product weight: 3.8 kgStandard accessories: Blade, parallel guide and hex keyLaser guide: OptionalPackage: Individual box: 335 × 255 × 180 mm. Outer carton: 530 × 350 × 380 mm. Quantity: 4 pcs/ctn. Net / gross weight: 16 kg / 17 kg. Loading: To be confirmed/20 ft; To be confirmed/40 ft; To be confirmed/40 HQ.Certification documentation available upon request. |
