Reviewed configuration
- Battery voltage: 20 V / 40 V
- Motor type: Brushless / 6025
- No-load speed: 5,500 rpm
- Blade diameter: 165 mm
DUP-CS-004
PRODUCT FAMILY

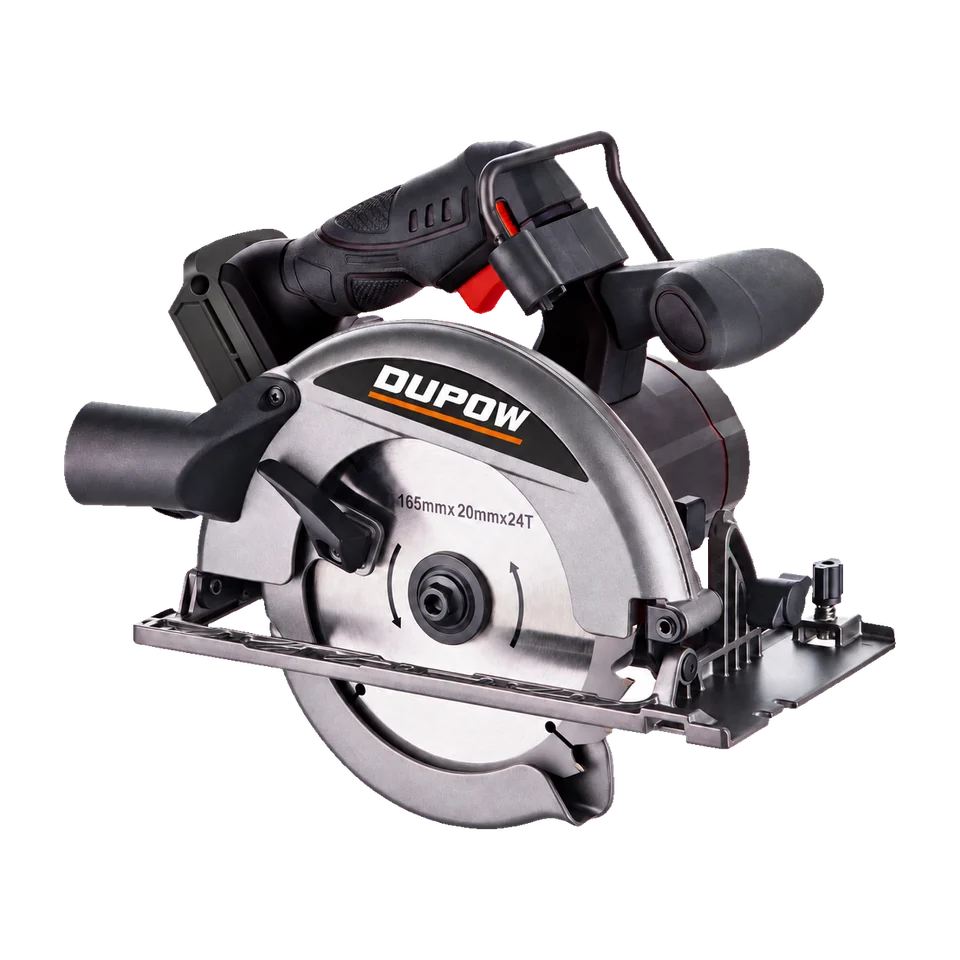

20V / 40V Brushless 165 mm Circular Saw
1 listed configuration · Family DUP-CS-004
A brushless cordless circular saw with a 165 mm blade, electric brake and LED work light for portable cutting applications.
| Primary category | Handheld Saws & Cutting |
|---|---|
| Product type | Circular Saws |
| Public family | Cordless Circular Saws |
| Configurations | 1 |
| Power source | Cordless |
| Battery platform | 20V / 40V Battery Platform |
| Motor type | Brushless |
Configuration and evidence check
Voltage, plug, exact configuration, compliance documents, packaging and branding are confirmed for the destination market before quotation or order placement. The commercial terms below are planning references; final terms are confirmed in the quotation.
B2B BUYER'S GUIDE
Review DUP-CS-004 for your product program
A brushless cordless circular saw with a 165 mm blade, electric brake and LED work light for portable cutting applications. This review keeps application, exact configuration, commercial terms and document status connected.
Buyer applications
- Portable timber and sheet-material cutting
- Workshop and jobsite range development
- Blade, cutting-depth and guide-system comparison
Confirm before quotation
- Confirm the intended application against Battery voltage: 20 V / 40 V
- Confirm the complete cordless configuration and included accessories
- Approve branding, packaging, labels and manual language against the sample
- Review exact-model documents for the destination market before any claim
Application examples are selection guidance, not a performance guarantee. The exact sample, ordered configuration and destination-market requirements remain the approval basis.
QUICK FAMILY COMPARISON
Compare nearby Circular Saws options
Review the closest product families, then add the relevant options to one inquiry.
| Family | Product | Key specifications | Power | Inquiry |
|---|---|---|---|---|
| DUP-CS-003 | 1800W 210 mm Circular Saw | Rated voltage / frequency: 220–240 V / 50 Hz Rated input: 1,800 W | Corded | |
| DUP-CS-004 Current page | 20V / 40V Brushless 165 mm Circular Saw | Battery voltage: 20 V / 40 V Motor type: Brushless / 6025 | 20V / 40V Battery Platform | Current family |
| DUP-CS-005 | 20V / 40V Brushless 190 mm Circular Saw | Battery voltage: 20 V / 40 V Motor type: Brushless / 6030 | 20V / 40V Battery Platform | |
| DUP-MCS-001 | 500W 76 mm Compact Circular Saw | Rated voltage / frequency: 220–240 V / 50 Hz Rated input: 500 W | Corded |
COMMERCIAL TERMS
Planning reference for this family
- Typical MOQ
- 500 units Handheld Saws & Cutting
- Sample lead time
- Around 7 days After specifications are confirmed
- Production lead time
- Around 30 days After sample and packaging approval
- OEM
- Welcome Scope confirmed for each program
These are planning references for typical standard configurations, not a binding quotation. MOQ may vary with the model, OEM scope, customized colors, packaging, voltage, plug type and certification requirements. The final MOQ and schedule are confirmed for each quotation and order.
COMPLIANCE DOCUMENTS
Redacted previews available for this family
An internal source-model cross-check found an exact textual match between this DUPOW family and the supplier-held document represented below. The public image is a further-sanitized summary, not the original document.
CE Safety · REDACTED PREVIEW
Public document preview
StandardsEN 62841-1:2015+A11:2022 · EN 62841-2-5:2014
Date shownNot shown in the public preview
Open preview ↗
EMC · REDACTED PREVIEW
Public document preview
StandardsEN IEC 55014-1:2021 · EN IEC 55014-2:2021 · IEC 55014-1:2021 · IEC 55014-2:2021
Date shownNot shown in the public preview
Open preview ↗
Important: A preview link is evidence of a reviewed source-model match, not a product certification badge or a promise that every configuration is currently covered. Exact applicability, validity and destination-market requirements are reconfirmed for the ordered configuration before quotation or document release.
CONFIGURATION MATRIX
Choose the right configuration
Use the DUPOW configuration reference in your inquiry. Final market version, accessories and packaging remain subject to confirmation.
| Product view | Inquiry reference | Configuration | Reviewed specifications |
|---|---|---|---|
 | DUP-CS-004Lead configuration | Current reviewed configuration | Battery voltage: 20 V / 40 VMotor type: Brushless / 6025No-load speed: 5,500 rpmBlade diameter: 165 mmMaximum cut at 90°: 55 mmMaximum cut at 45°: 36 mmUpper guard, lower guard and base: AluminiumStandard accessories: 165 × 20 × 1.6 mm 24T blade, hex key and parallel guideBattery and charger: Not included in quoted pricePackage: Individual box: 320 × 205 × 209 mm. Outer carton: 430 × 335 × 438 mm. Quantity: 4 pcs/ctn. Net / gross weight: 13.5 kg / 14.5 kg. Loading: To be confirmed/20 ft; To be confirmed/40 ft; To be confirmed/40 HQ.Certification documentation available upon request. |
BUYER QUESTIONS
Before you request a quotation
Model-level answers for sourcing, OEM and document review.
What is DUP-CS-004 intended for?
A brushless cordless circular saw with a 165 mm blade, electric brake and LED work light for portable cutting applications.
What should be confirmed before requesting DUP-CS-004?
Confirm the destination market, intended application, quantity, cordless configuration, required accessories, packaging and branding scope. The exact sample remains the approval reference.
Can DUP-CS-004 be supplied for OEM or private-label programs?
OEM coordination is available subject to exact-model and order review. The current MOQ planning reference is 500 units; final MOQ, cost, timing and customization scope are confirmed in the quotation.
What is the document status for DUP-CS-004?
A privacy-safe public summary is linked on this product page because an internal source-model cross-check found an exact textual match. It is not a certification badge; validity, ordered configuration and destination-market applicability are reconfirmed before quotation or document release.
