Key performance & functions
- Motor type: Brushless / 6030
- Blade diameter: 190 mm
- No-load speed: 5,000 rpm
DUP-CS-005
Circular Saws

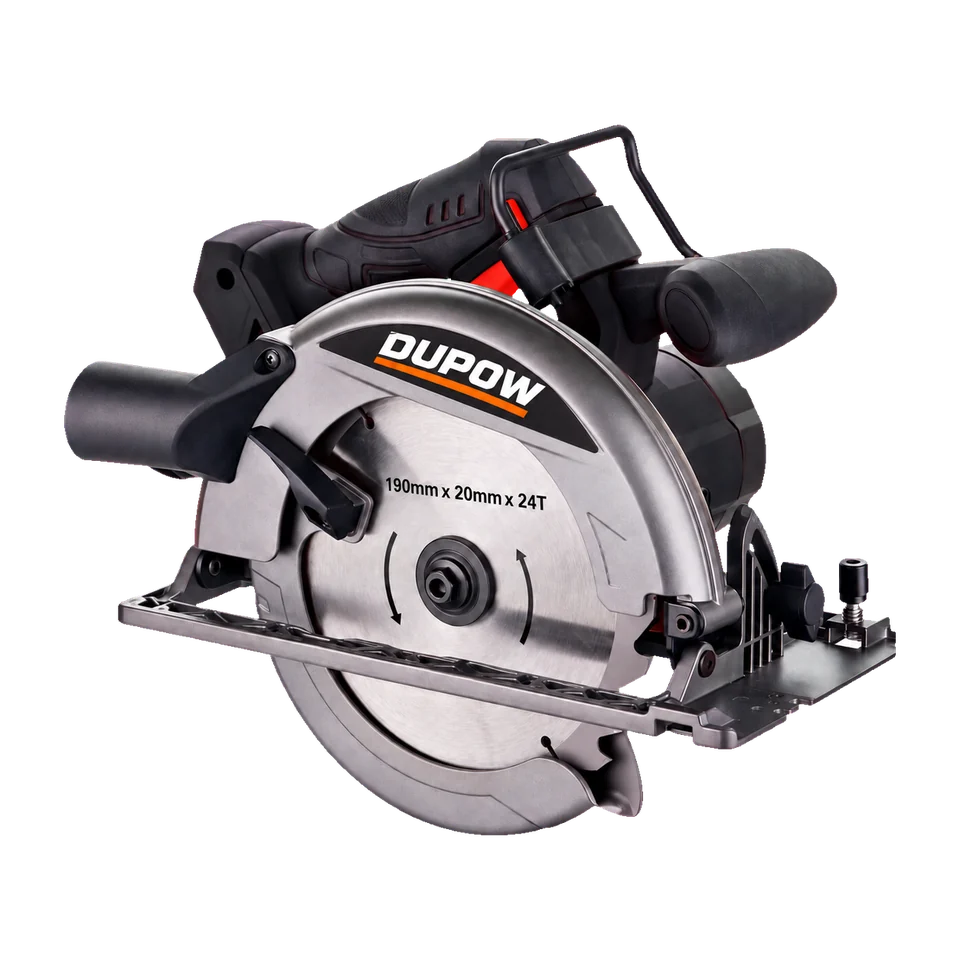

20V / 40V Brushless 190 mm Circular Saw — DUP-CS-005
Model DUP-CS-005
A 190 mm brushless cordless circular saw with electric brake and LED work light for higher-capacity portable cutting.
- 65 mm · Maximum cut at 90°
Maximum rating; distinguish this value from the continuous operating rating.
- 190 mm · Blade diameter
The working diameter for selecting the matching wheel or blade.
- 5,000 rpm · No-load speed
Speed with the tool running without load; select the working setup for the material and task.
Email this familyWhatsApp Ivan
Direct B2B contact: model and page link are prefilled; add your market and quantity.
65 mmMaximum cut at 90°
190 mmBlade diameter
5,000 rpmNo-load speed
FEATURES IN FOCUS
Timber and sheet-material cutting
Maximum cut at 90°: 65 mm · Blade diameter: 190 mm · No-load speed: 5,000 rpm
THE MODEL, CLEARLY SPECIFIED
Product specifications
View the complete specifications for DUP-CS-005
| Primary category | Handheld Saws & Cutting |
|---|---|
| Product type | Circular Saws |
| Public family | Cordless Circular Saws |
| Configurations | 1 |
| Power source | Cordless |
| Battery platform | 20V / 40V Battery Platform |
| Motor type | Brushless |
CONFIGURATION MATRIX
Choose the right configuration
Tell us the model, order quantity and destination market. We will put together the accessory, branding and packaging options in your quotation.
| Product view | Inquiry reference | Configuration | Product specifications |
|---|---|---|---|
 | DUP-CS-005Lead configuration | Product configuration | Battery voltage: 20 V / 40 VMotor type: Brushless / 6030No-load speed: 5,000 rpmBlade diameter: 190 mmMaximum cut at 90°: 65 mmMaximum cut at 45°: 44 mmUpper guard, lower guard and base: AluminiumStandard accessories: 190 × 20 × 1.6 mm 24T blade, hex key and parallel guideBattery and charger: Not included in quoted pricePackage: Individual box: 332 × 210 × 211 mm. Outer carton: 440 × 347 × 440 mm. Quantity: 4 pcs/ctn. Net / gross weight: 14 kg / 15 kg.Certification documentation available upon request. |
WHOLESALE & PRIVATE LABEL
Build your order around DUP-CS-005.
Send the model, quantity and destination market, together with the required accessories, branding and packing. For cordless tools, include the tool-only or kit format, battery model and charger requirements.
- Typical MOQ
- 500 units
- Sample time
- Around 7 days
- Production
- Around 30 days
- OEM / Private Label
- Welcome
COMMERCIAL TERMS
Order options and lead times
Find MOQ and lead time above. We can prepare samples, private-label packaging and shipping details with your quotation.
MOQ and lead time depend on the model, kit and branding scope. Your quotation sets out the order quantity, price and production schedule.
B2B BUYER'S GUIDE
Is DUP-CS-005 right for your product program?
For importers and distributors comparing circular saws by blade diameter, cutting depth, bevel capacity, guide setup and power platform.
Typical applications
- Straight cutting of compatible timber and sheet material
- Bevel cutting within the base-angle range
- Sizing work with the matched blade, guide and material support
Build your quotation
- Choose your 190 mm blade version, arbor and maximum cutting depth
- Confirm guard, base, bevel range, guide, dust outlet and included accessories
- Approve voltage or battery platform, branding, packaging and destination-market document requirements
We help importers, distributors and private-label buyers build their tool range through product sourcing, samples, branding, packaging and export delivery.
We help you select the tool and accessories for your application, with samples, private-label packaging and export support.
QUICK FAMILY COMPARISON
Compare nearby Circular Saws options
Compare related models and add your shortlist to one inquiry.
| Model | Product & design | Electrical rating | Functions & working capacity | Power source | Inquiry |
|---|---|---|---|---|---|
| DUP-CS-004 |  20V / 40V Brushless 165 mm Circular Saw for Wood and Sheet Cutting | — | Motor type: Brushless / 6025 Blade diameter: 165 mm No-load speed: 5,500 rpm | Cordless · 20V / 40V Battery Platform | |
| DUP-CS-005 Current page | 20V / 40V Brushless 190 mm Circular Saw for Wood and Sheet Cutting | — | Motor type: Brushless / 6030 Blade diameter: 190 mm No-load speed: 5,000 rpm | Cordless · 20V / 40V Battery Platform | Current family |
| DUP-MCS-001 |  500W 76 mm Compact Circular Saw for Wood and Sheet Cutting | Rated input: 500 W | Blade diameter: 76 mm Maximum cutting depth: 20 mm No-load speed: 7,600 rpm | Corded | |
| DUP-MCS-002 |  400W 80 mm Variable-Speed Compact Circular Saw for Wood and Sheet Cutting | Rated input: 400 W | Blade diameter: 80 mm Maximum cutting depth: 20 mm No-load speed: 0–3,300 rpm | Corded |
Compare power, working capacity and product format. We support private-label tool ranges with product selection, branding, packaging and export delivery.
COMPLIANCE DOCUMENTS
Redacted previews available for this family
The document summary below is associated with this model. Commercial and supplier identifiers have been removed from the public summary.
CE Safety · REDACTED PREVIEW
Public document preview
StandardsEN 62841-1:2015+A11:2022 · EN 62841-2-5:2014
Date shownNot shown in the public preview
Open preview ↗
EMC · REDACTED PREVIEW
Public document preview
StandardsEN IEC 55014-1:2021 · EN IEC 55014-2:2021 · IEC 55014-1:2021 · IEC 55014-2:2021
Date shownNot shown in the public preview
Open preview ↗
Important: Document scope follows the model and configuration described in the summary. Include your destination market and kit requirements when requesting the documentation pack.
BUYER RESOURCES
Continue the sourcing review
Three focused routes cover product comparison, OEM planning and a clearer RFQ.
Compare Circular SawsReview nearby blade-size, cutting-depth, bevel and power-platform configurations.→
OEM & private-label processPlan branding, packaging, sample approval and order coordination.→
Build a comparable RFQSend the market, quantity, blade size, arbor, cutting depth, voltage or battery platform, guide and accessories and document needs.→
MODEL FAQ
Questions before adding DUP-CS-005 to an RFQ
Choose the model for your application, then send us your quantity and destination market.
What is DUP-CS-005 best suited to?
A 190 mm brushless cordless circular saw with electric brake and LED work light for higher-capacity portable cutting. It is intended for importers and distributors comparing circular-saw configurations for construction, woodworking and sheet-cutting ranges.
Can DUP-CS-005 be supplied for OEM or private-label orders?
Yes. We support your branding, housing color, labels, manuals and packaging. Typical MOQ is 500 units; send us the model and quantity for your quotation.
What compliance documents are available for DUP-CS-005?
The product document summary below shows its model association and scope. We can discuss your destination-market documentation with your quotation.
How does DUPOW support my product range?
DUPOW is our tools brand at Ningbo Hopes Import and Export Co., Ltd. We bring together product sourcing, private-label development, quality follow-up and export delivery for your tool range.
What information should I send for a model-specific quotation?
Send the destination market, estimated quantity, voltage and plug, blade diameter, arbor, cutting depth, bevel, guide and power-platform configuration, intended application, accessories, OEM or packaging scope, and document requirements. DUPOW normally replies by email within one business day.
