PRODUCT FAMILY

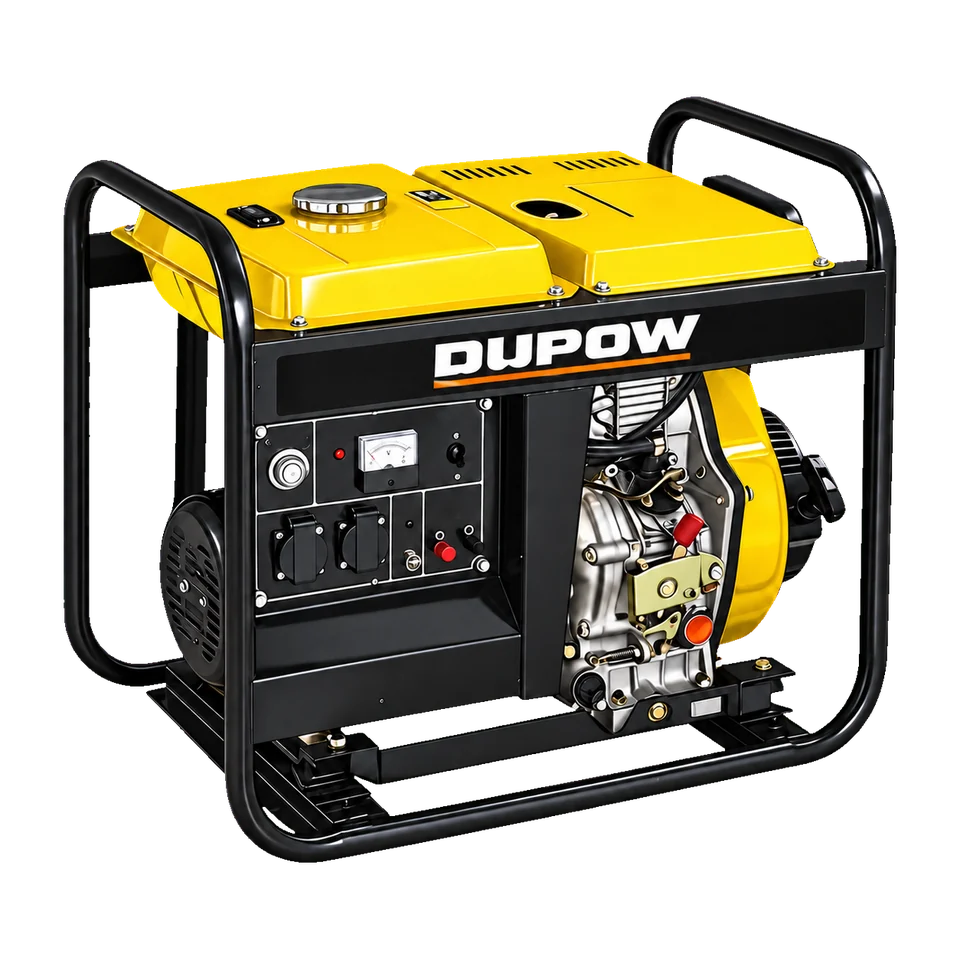

4.6 kVA Rated Open-Frame Diesel Generator
1 listed configuration · Family DUP-DG-003
An open-frame direct-injection diesel generator rated at 4.6 kVA, available in single- or three-phase configurations with recoil or electric start.
| Primary category | Power Generation & Engines |
|---|---|
| Product type | Open-Frame Diesel Generators |
| Public family | Open-Frame Diesel Generators |
| Configurations | 1 |
| Power source | Diesel |
| Battery platform | Not applicable |
| Motor type | Configuration to confirm |
Voltage, plug, exact configuration, compliance documents, packaging and branding are confirmed for the destination market before quotation or order placement. The commercial terms below are planning references; final terms are confirmed in the quotation.
QUICK FAMILY COMPARISON
Compare nearby Open-Frame Diesel Generators options
Review the closest product families, then add the relevant options to one inquiry.
| Family | Product | Key specifications | Power | Inquiry |
|---|---|---|---|---|
| DUP-DG-002 | 3.0 kVA Rated Open-Frame Diesel Generator | Frequency: 50 / 60 Hz Rated / maximum output: 3.0 kVA / 3.3 kVA | Diesel | |
| DUP-DG-003 Current page | 4.6 kVA Rated Open-Frame Diesel Generator | Frequency: 50 / 60 Hz Rated / maximum output: 4.6 kVA / 5.0 kVA | Diesel | Current family |
| DUP-DG-004 | 5.0 kVA Rated Open-Frame Diesel Generator | Frequency: 50 / 60 Hz Rated / maximum output: 5.0 kVA / 5.5 kVA | Diesel | |
| DUP-DG-005 | 5.5 kVA Rated Open-Frame Diesel Generator | Frequency: 50 / 60 Hz Rated / maximum output: 5.5 kVA / 6.0 kVA | Diesel |
COMMERCIAL TERMS
Planning reference for this family
- Typical MOQ
- 100 units Power Generation & Engines
- Sample lead time
- Around 7 days After specifications are confirmed
- Production lead time
- Around 30 days After sample and packaging approval
- OEM
- Welcome Scope confirmed for each program
These are planning references for typical standard configurations, not a binding quotation. MOQ may vary with the model, OEM scope, customized colors, packaging, voltage, plug type and certification requirements. The final MOQ and schedule are confirmed for each quotation and order.
CONFIGURATION MATRIX
Choose the right configuration
Use the DUPOW configuration reference in your inquiry. Final market version, accessories and packaging remain subject to confirmation.
| Product view | Inquiry reference | Configuration | Reviewed specifications |
|---|---|---|---|
 | DUP-DG-003Lead configuration | Current reviewed configuration | Frequency: 50 / 60 HzRated / maximum output: 4.6 kVA / 5.0 kVARated AC voltage options: 110 / 230 / 120–240 / 230–400 VPhase / power factor: Single phase cos φ = 1 or three phase cos φ = 0.8DC output: 12 V / 8.3 AAlternator: Self-excited, two-pole AVRStarting system: Recoil or electricNoise level at 7 m: 80–85 dB(A)Fuel tank / runtime: 16 L / 7.7 hEngine: LBD186FA / 418 cc direct-injection air-cooled dieselOil capacity: 1.65 LPackage: Outer carton: 730 × 495 × 620 mm. Quantity: 1 set/ctn. Net / gross weight: 100 kg / 102 kg. Loading: 105 sets/20 ft; 288 sets/40 HQ.Certification documentation available upon request. |
