Key performance & functions
- Rated / maximum output: 5.5 kVA / 6.0 kVA
- Phase / power factor: Single phase cos φ = 1 or three phase cos φ = 0.8
DUP-DG-005
Open-Frame Diesel Generators

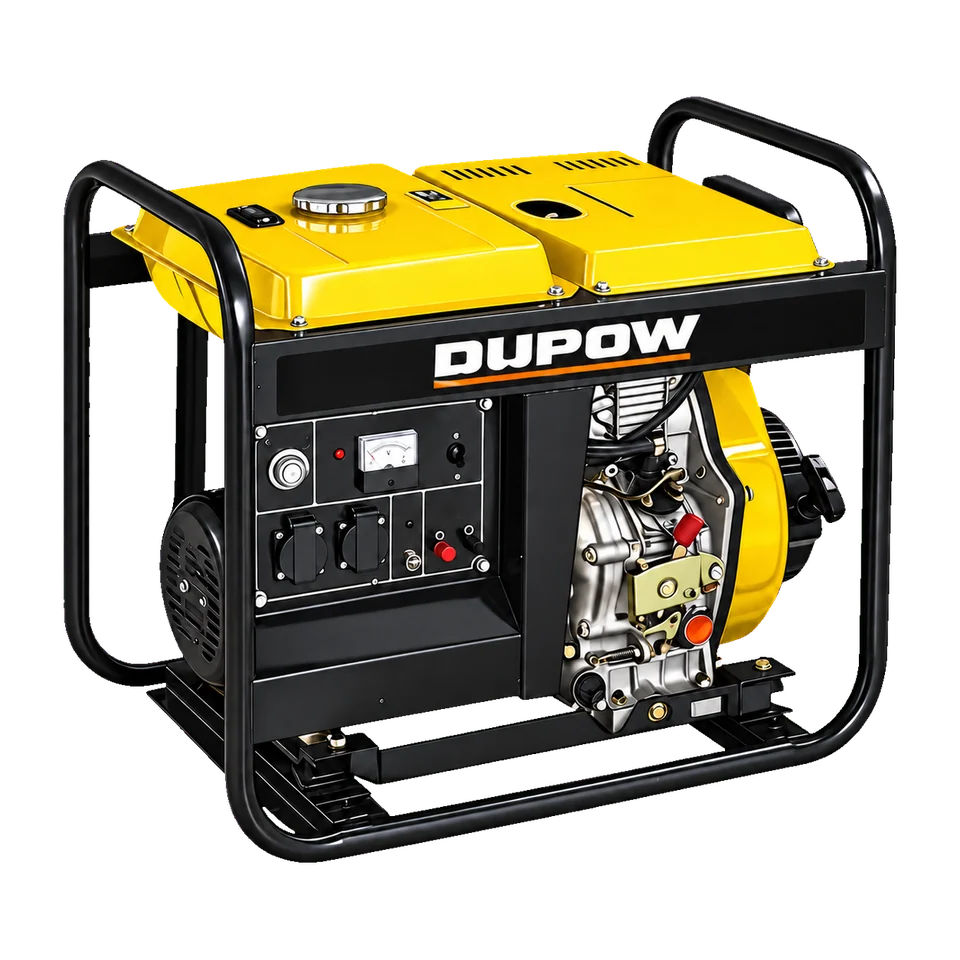

5.5 kVA Rated Open-Frame Diesel Generator — DUP-DG-005
Model DUP-DG-005
An open-frame direct-injection diesel generator rated at 5.5 kVA, available in single- or three-phase configurations with recoil or electric start.
- 5.5 kVA / 6.0 kVA · Rated / maximum output
The stated operating rating for this model.
- Recoil or electric · Starting system
Starting methods for this model’s engine.
- Single phase cos φ = 1 or three phase cos φ = 0.8 · Phase / power factor
The stated power rating for this configuration.
Email this familyWhatsApp Ivan
Direct B2B contact: model and page link are prefilled; add your market and quantity.
5.5 kVA / 6.0 kVARated / maximum output
Recoil or electricStarting system
Single phase cos φ = 1 or three phase cos φ = 0.8Phase / power factor
FEATURES IN FOCUS
Open-frame diesel power
Rated / maximum output: 5.5 kVA / 6.0 kVA · Starting system: Recoil or electric · Phase / power factor: Single phase cos φ = 1 or three phase cos φ = 0.8
THE MODEL, CLEARLY SPECIFIED
Product specifications
View the complete specifications for DUP-DG-005
| Primary category | Power Generation & Engines |
|---|---|
| Product type | Open-Frame Diesel Generators |
| Public family | Open-Frame Diesel Generators |
| Order configuration | Confirmed in quotation |
| Power source | Diesel |
CONFIGURATION MATRIX
Choose the right configuration
Tell us the model, order quantity and destination market. We will put together the accessory, branding and packaging options in your quotation.
| Product view | Inquiry reference | Configuration | Product specifications |
|---|---|---|---|
 | DUP-DG-005Lead configuration | Generator enclosure and control-panel view. | Frequency: 50 / 60 HzRated / maximum output: 5.5 kVA / 6.0 kVARated AC voltage options: 110 / 230 / 120–240 / 230–400 VPhase / power factor: Single phase cos φ = 1 or three phase cos φ = 0.8DC output: 12 V / 8.3 AAlternator: Self-excited, two-pole AVRStarting system: Recoil or electricNoise level at 7 m: 80–85 dB(A)Fuel tank / runtime: 16 L / 6.2 hEngine: LBD190F / 477 cc direct-injection air-cooled dieselOil capacity: 1.65 LPackage: Outer carton: 730 × 495 × 620 mm. Net / gross weight: 102 kg / 104 kg. Loading: 105 sets/20 ft; 288 sets/40 HQ. |
WHOLESALE & PRIVATE LABEL
Build your order around DUP-DG-005.
Send the model, quantity and destination market, together with the required accessories, branding and packing. For cordless tools, include the tool-only or kit format, battery model and charger requirements.
- Typical MOQ
- 100 units
- Sample time
- Around 7 days
- Production
- Around 30 days
- OEM / Private Label
- Welcome
COMMERCIAL TERMS
Order options and lead times
Find MOQ and lead time above. We can prepare samples, private-label packaging and shipping details with your quotation.
MOQ and lead time depend on the model, kit and branding scope. Your quotation sets out the order quantity, price and production schedule.
B2B BUYER'S GUIDE
Is DUP-DG-005 right for your product program?
For importers and distributors comparing open-frame diesel generators by rated output, phase, voltage, frequency, starting system, tank capacity and frame configuration.
Typical applications
- Outdoor portable-power programs sized from running and starting loads
- Backup-power ranges with destination-market electrical configuration
- Commercial equipment-support programs within the reviewed output limits
Build your quotation
- Choose your 5.5 kVA / 6.0 kVA version and connected-load profile
- Confirm frequency, voltage, phase, sockets, breaker, starting system and tank
- Approve branding, packaging, documentation and safe-use instructions for the destination market
We help importers, distributors and private-label buyers build their tool range through product sourcing, samples, branding, packaging and export delivery.
We help you select the tool and accessories for your application, with samples, private-label packaging and export support.
QUICK FAMILY COMPARISON
Compare nearby Open-Frame Diesel Generators options
Compare related models and add your shortlist to one inquiry.
| Model | Product & design | Rated & maximum output | Engine, phase & starting | Fuel | Inquiry |
|---|---|---|---|---|---|
| DUP-DG-003 |  4.6 kVA Rated Open-Frame Diesel Generator for Commercial Power Programs | Rated / maximum output: 4.6 kVA / 5.0 kVA | Engine: LBD186FA / 418 cc direct-injection air-cooled diesel Starting system: Recoil or electric Phase / power factor: Single phase cos φ = 1 or three phase cos φ = 0.8 | Diesel | |
| DUP-DG-004 |  5.0 kVA Rated Open-Frame Diesel Generator for Commercial Power Programs | Rated / maximum output: 5.0 kVA / 5.5 kVA | Engine: LBD188F / 456 cc direct-injection air-cooled diesel Starting system: Recoil or electric Phase / power factor: Single phase cos φ = 1 or three phase cos φ = 0.8 | Diesel | |
| DUP-DG-005 Current page | 5.5 kVA Rated Open-Frame Diesel Generator for Commercial Power Programs | Rated / maximum output: 5.5 kVA / 6.0 kVA | Engine: LBD190F / 477 cc direct-injection air-cooled diesel Starting system: Recoil or electric Phase / power factor: Single phase cos φ = 1 or three phase cos φ = 0.8 | Diesel | Current family |
| DUP-DG-006 |  6.0 kVA Rated Open-Frame Diesel Generator for Commercial Power Programs | Rated / maximum output: 6.0 kVA / 6.5 kVA | Engine: LBD192F / 496 cc direct-injection air-cooled diesel Starting system: Recoil or electric Phase / power factor: Single phase cos φ = 1 or three phase cos φ = 0.8 | Diesel |
Compare rated and maximum output, engine, phase and starting method using the published generator data. We prepare the accessory kit, packaging and delivery details with your quotation.
BUYER RESOURCES
Continue the sourcing review
Three focused routes cover product comparison, OEM planning and a clearer RFQ.
Compare Open-Frame Diesel GeneratorsReview nearby output, phase, voltage, start and frame configurations.→
OEM & private-label processPlan branding, packaging, sample approval and order coordination.→
Build a comparable RFQSend the market, quantity, output, voltage, phase, socket, starting system and tank capacity and document needs.→
MODEL FAQ
Questions before adding DUP-DG-005 to an RFQ
Choose the model for your application, then send us your quantity and destination market.
What is DUP-DG-005 best suited to?
An open-frame direct-injection diesel generator rated at 5.5 kVA, available in single- or three-phase configurations with recoil or electric start. It is intended for importers and distributors comparing open-frame diesel-generator configurations for commercial and backup power ranges.
Can DUP-DG-005 be supplied for OEM or private-label orders?
Yes. We support your branding, housing color, labels, manuals and packaging. Typical MOQ is 100 units; send us the model and quantity for your quotation.
What compliance documents are available for DUP-DG-005?
Ask us about the product documentation required for your destination market when requesting your quotation.
How does DUPOW support my product range?
DUPOW is our tools brand at Ningbo Hopes Import and Export Co., Ltd. We bring together product sourcing, private-label development, quality follow-up and export delivery for your tool range.
What information should I send for a model-specific quotation?
Send the destination market, estimated quantity, voltage and plug, rated and maximum output, voltage, phase, frequency, socket, breaker, start and tank configuration, intended application, accessories, OEM or packaging scope, and document requirements. DUPOW normally replies by email within one business day.
MODEL-SPECIFIC RFQ
Review DUP-DG-005 for your market
Add the family to one shortlist, or open the inquiry form with the model already selected.
Compare open frame diesel generator models
Compare open-frame diesel generators by power format, working capacity and the specifications of each model.
