Key performance & functions
- Type: Single-cylinder forced-air-cooled OHV four-stroke carburetor gasoline engine
- Displacement / horsepower: 420 cc / 15 HP
- Rated power: 8.8 kW / 3,600 rpm
- Maximum torque: 26.5 N·m / 2,500 rpm
DUP-GE-005
Gasoline Engines

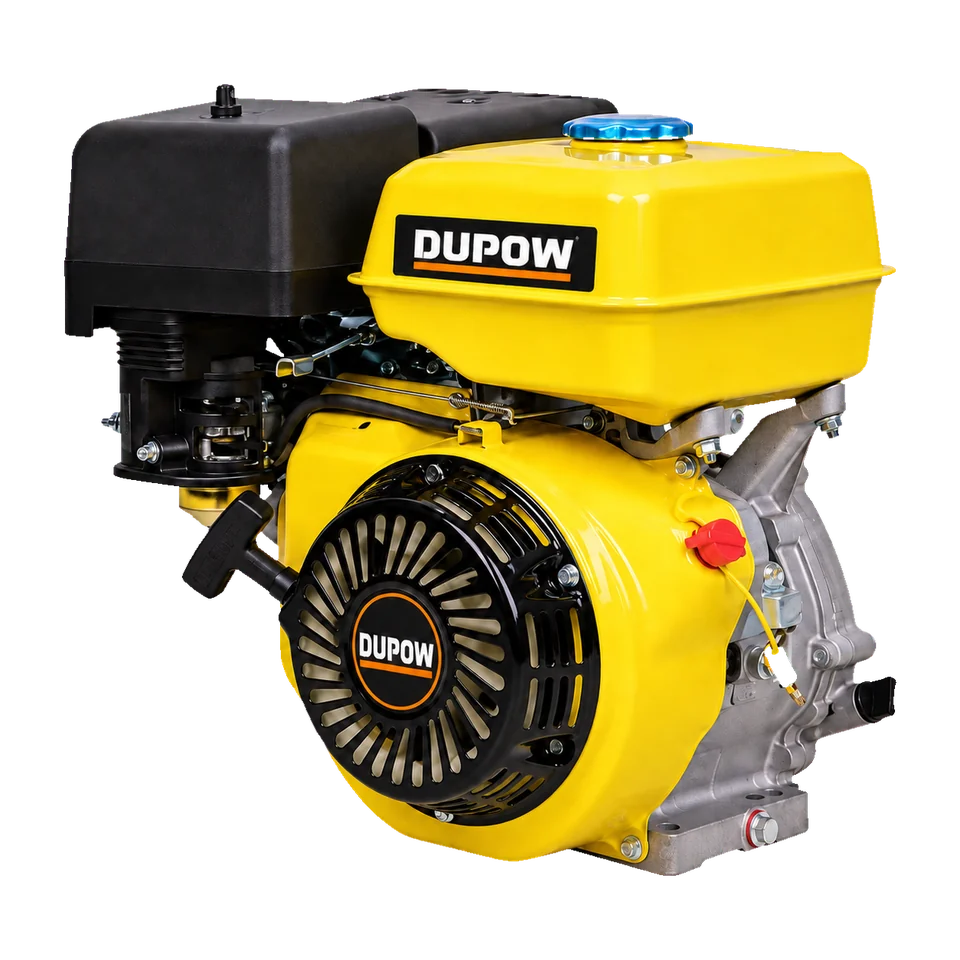

15 HP 420 cc OHV Gasoline Engine — DUP-GE-005
Model DUP-GE-005
A 420 cc single-cylinder forced-air-cooled OHV four-stroke gasoline engine rated at 15 HP, for equipment and OEM power-unit programs.
- 420 cc / 15 HP · Displacement / horsepower
The stated power rating for this configuration.
- 8.8 kW / 3,600 rpm · Rated power
The stated operating rating for this model.
- 26.5 N·m / 2,500 rpm · Maximum torque
Torque rating for comparing the tool’s fastening specification.
Email this familyWhatsApp Ivan
Direct B2B contact: model and page link are prefilled; add your market and quantity.
420 cc / 15 HPDisplacement / horsepower
8.8 kW / 3,600 rpmRated power
26.5 N·m / 2,500 rpmMaximum torque
FEATURES IN FOCUS
Engine selection and equipment integration
Displacement / horsepower: 420 cc / 15 HP · Rated power: 8.8 kW / 3,600 rpm · Maximum torque: 26.5 N·m / 2,500 rpm
THE MODEL, CLEARLY SPECIFIED
Product specifications
View the complete specifications for DUP-GE-005
| Primary category | Power Generation & Engines |
|---|---|
| Product type | Gasoline Engines |
| Public family | General-Purpose Gasoline Engines |
| Configurations | 1 |
| Power source | Gasoline |
CONFIGURATION MATRIX
Choose the right configuration
Tell us the model, order quantity and destination market. We will put together the accessory, branding and packaging options in your quotation.
| Product view | Inquiry reference | Configuration | Product specifications |
|---|---|---|---|
 | DUP-GE-005Lead configuration | Product configuration | Type: Single-cylinder forced-air-cooled OHV four-stroke carburetor gasoline engineDisplacement / horsepower: 420 cc / 15 HPRated power: 8.8 kW / 3,600 rpmMaximum torque: 26.5 N·m / 2,500 rpmFuel consumption: ≤374 g/kWhFuel tank: 6.5 LEngine oil capacity: 1.1 LStarting system: Recoil or electricAir filter: Dry or oil-immersedFuel: Unleaded petrolEngine oil: SAE 10W-30Output shaft rotation: Counterclockwise viewed from output shaftPackage: Outer carton: 515 × 435 × 480 mm. Quantity: 1 pc/ctn. Net / gross weight: 33 kg / 35 kg. Loading: 228 pcs/20 ft; 595 pcs/40 HQ.Certification documentation available upon request. |
WHOLESALE & PRIVATE LABEL
Build your order around DUP-GE-005.
Send the model, quantity and destination market, together with the required accessories, branding and packing. For cordless tools, include the tool-only or kit format, battery model and charger requirements.
- Typical MOQ
- 100 units
- Sample time
- Around 7 days
- Production
- Around 30 days
- OEM / Private Label
- Welcome
COMMERCIAL TERMS
Order options and lead times
Find MOQ and lead time above. We can prepare samples, private-label packaging and shipping details with your quotation.
MOQ and lead time depend on the model, kit and branding scope. Your quotation sets out the order quantity, price and production schedule.
B2B BUYER'S GUIDE
Is DUP-GE-005 right for your product program?
For OEM buyers comparing general-purpose gasoline engines by displacement, rated power, torque, starting system, air filter and mechanical interface.
Typical applications
- Power-unit integration for compatible pumps, construction equipment and workshop machinery
- Replacement-engine programs after shaft and mounting verification
- Private-label equipment programs requiring confirmed controls, fuel and service access
Build your quotation
- Choose your 420 cc / 15 HP engine version and driven-equipment load
- Confirm output shaft, rotation, mounting pattern, starting system, air filter and controls
- Approve branding, packaging, manuals and destination-market requirements after fitment review
We help importers, distributors and private-label buyers build their tool range through product sourcing, samples, branding, packaging and export delivery.
We help you select the tool and accessories for your application, with samples, private-label packaging and export support.
QUICK FAMILY COMPARISON
Compare nearby Gasoline Engines options
Compare related models and add your shortlist to one inquiry.
| Model | Product & design | Displacement, power & torque | Starting & equipment integration | Fuel | Inquiry |
|---|---|---|---|---|---|
| DUP-GE-003 |  6.5 HP 196 cc OHV Gasoline Engine | Displacement / horsepower: 196 cc / 6.5 HP Rated power: 4.1 kW / 3,600 rpm Maximum torque: 12.4 N·m / 2,500 rpm | Starting system: Recoil or electric Output shaft rotation: Counterclockwise viewed from output shaft Fuel consumption: ≤385 g/kWh | Gasoline | |
| DUP-GE-004 |  7 HP 212 cc OHV Gasoline Engine for OEM Equipment Integration | Displacement / horsepower: 212 cc / 7 HP Rated power: 4.4 kW / 3,600 rpm Maximum torque: 12.5 N·m / 2,500 rpm | Starting system: Recoil or electric Output shaft rotation: Counterclockwise viewed from output shaft Fuel consumption: ≤385 g/kWh | Gasoline | |
| DUP-GE-005 Current page | 15 HP 420 cc OHV Gasoline Engine for OEM Equipment Integration | Displacement / horsepower: 420 cc / 15 HP Rated power: 8.8 kW / 3,600 rpm Maximum torque: 26.5 N·m / 2,500 rpm | Starting system: Recoil or electric Output shaft rotation: Counterclockwise viewed from output shaft Fuel consumption: ≤374 g/kWh | Gasoline | Current family |
| DUP-GE-006 |  17 HP 458 cc OHV Gasoline Engine for OEM Equipment Integration | Displacement / horsepower: 458 cc / 17 HP Rated power: 9.7 kW / 3,600 rpm Maximum torque: 29.4 N·m / 2,500 rpm | Starting system: Recoil or electric Output shaft rotation: Counterclockwise viewed from output shaft Fuel consumption: ≤374 g/kWh | Gasoline |
Compare displacement, horsepower, rated power, torque, starting method and output-shaft information using the published engine data. Shaft dimensions and the final equipment interface must be confirmed for the exact OEM project.
BUYER RESOURCES
Continue the sourcing review
Three focused routes cover product comparison, OEM planning and a clearer RFQ.
Compare Gasoline EnginesReview nearby displacement, power, torque, start and mechanical-interface configurations.→
OEM & private-label processPlan branding, packaging, sample approval and order coordination.→
Build a comparable RFQSend the market, quantity, power, torque, output shaft, rotation, mounting and starting system and document needs.→
MODEL FAQ
Questions before adding DUP-GE-005 to an RFQ
Choose the model for your application, then send us your quantity and destination market.
What is DUP-GE-005 best suited to?
A 420 cc single-cylinder forced-air-cooled OHV four-stroke gasoline engine rated at 15 HP, for equipment and OEM power-unit programs. It is intended for importers and distributors comparing general-purpose gasoline-engine configurations for OEM equipment integration.
Can DUP-GE-005 be supplied for OEM or private-label orders?
Yes. We support your branding, housing color, labels, manuals and packaging. Typical MOQ is 100 units; send us the model and quantity for your quotation.
What compliance documents are available for DUP-GE-005?
Ask us about the product documentation required for your destination market when requesting your quotation.
How does DUPOW support my product range?
DUPOW is our tools brand at Ningbo Hopes Import and Export Co., Ltd. We bring together product sourcing, private-label development, quality follow-up and export delivery for your tool range.
What information should I send for a model-specific quotation?
Send the destination market, estimated quantity, voltage and plug, displacement, rated power, torque, output shaft, rotation, mounting, starting and air-filter configuration, intended application, accessories, OEM or packaging scope, and document requirements. DUPOW normally replies by email within one business day.
MODEL-SPECIFIC RFQ
Review DUP-GE-005 for your market
Add the family to one shortlist, or open the inquiry form with the model already selected.
Compare 420cc gasoline engine models
Compare gasoline engines by power format, working capacity and the specifications of each model.
