PRODUCT FAMILY

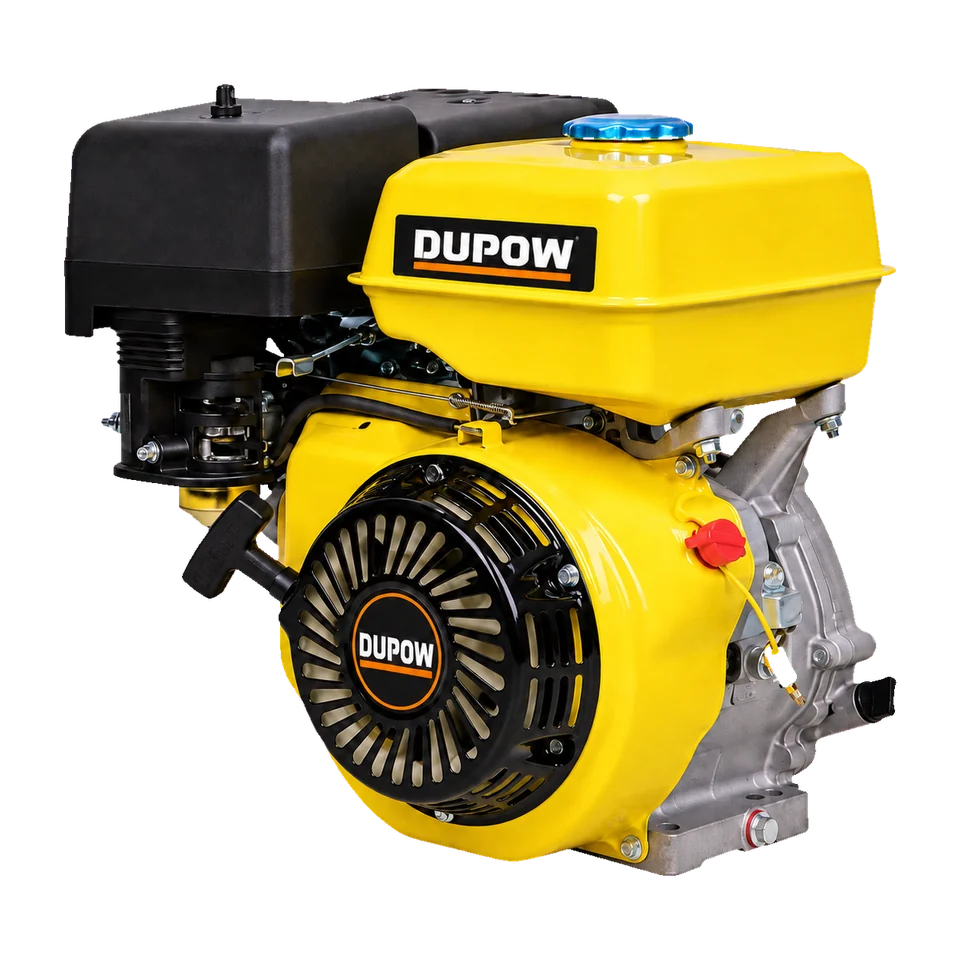

17 HP 458 cc OHV Gasoline Engine
1 listed configuration · Family DUP-GE-006
A 458 cc single-cylinder forced-air-cooled OHV four-stroke gasoline engine rated at 17 HP, for equipment and OEM power-unit programs.
| Primary category | Power Generation & Engines |
|---|---|
| Product type | Gasoline Engines |
| Public family | General-Purpose Gasoline Engines |
| Configurations | 1 |
| Power source | Gasoline |
| Battery platform | Not applicable |
| Motor type | Configuration to confirm |
Voltage, plug, exact configuration, compliance documents, packaging and branding are confirmed for the destination market before quotation or order placement. The commercial terms below are planning references; final terms are confirmed in the quotation.
QUICK FAMILY COMPARISON
Compare nearby Gasoline Engines options
Review the closest product families, then add the relevant options to one inquiry.
| Family | Product | Key specifications | Power | Inquiry |
|---|---|---|---|---|
| DUP-GE-003 | 6.5 HP 196 cc OHV Gasoline Engine | Type: Single-cylinder forced-air-cooled OHV four-stroke carburetor gasoline engine Displacement / horsepower: 196 cc / 6.5 HP | Gasoline | |
| DUP-GE-004 | 7 HP 212 cc OHV Gasoline Engine | Type: Single-cylinder forced-air-cooled OHV four-stroke carburetor gasoline engine Displacement / horsepower: 212 cc / 7 HP | Gasoline | |
| DUP-GE-005 | 15 HP 420 cc OHV Gasoline Engine | Type: Single-cylinder forced-air-cooled OHV four-stroke carburetor gasoline engine Displacement / horsepower: 420 cc / 15 HP | Gasoline | |
| DUP-GE-006 Current page | 17 HP 458 cc OHV Gasoline Engine | Type: Single-cylinder forced-air-cooled OHV four-stroke carburetor gasoline engine Displacement / horsepower: 458 cc / 17 HP | Gasoline | Current family |
COMMERCIAL TERMS
Planning reference for this family
- Typical MOQ
- 100 units Power Generation & Engines
- Sample lead time
- Around 7 days After specifications are confirmed
- Production lead time
- Around 30 days After sample and packaging approval
- OEM
- Welcome Scope confirmed for each program
These are planning references for typical standard configurations, not a binding quotation. MOQ may vary with the model, OEM scope, customized colors, packaging, voltage, plug type and certification requirements. The final MOQ and schedule are confirmed for each quotation and order.
CONFIGURATION MATRIX
Choose the right configuration
Use the DUPOW configuration reference in your inquiry. Final market version, accessories and packaging remain subject to confirmation.
| Product view | Inquiry reference | Configuration | Reviewed specifications |
|---|---|---|---|
 | DUP-GE-006Lead configuration | Current reviewed configuration | Type: Single-cylinder forced-air-cooled OHV four-stroke carburetor gasoline engineDisplacement / horsepower: 458 cc / 17 HPRated power: 9.7 kW / 3,600 rpmMaximum torque: 29.4 N·m / 2,500 rpmFuel consumption: ≤374 g/kWhFuel tank: 6.5 LEngine oil capacity: 1.1 LStarting system: Recoil or electricAir filter: Dry or oil-immersedFuel: Unleaded petrolEngine oil: SAE 10W-30Output shaft rotation: Counterclockwise viewed from output shaftPackage: Outer carton: 515 × 435 × 480 mm. Quantity: 1 pc/ctn. Net / gross weight: 33 kg / 35 kg. Loading: 228 pcs/20 ft; 595 pcs/40 HQ.Certification documentation available upon request. |
