Key performance & functions
- Maximum output: 12 kVA
- Rated output: 10.5 kVA
DUP-GG-016
Gasoline Generators

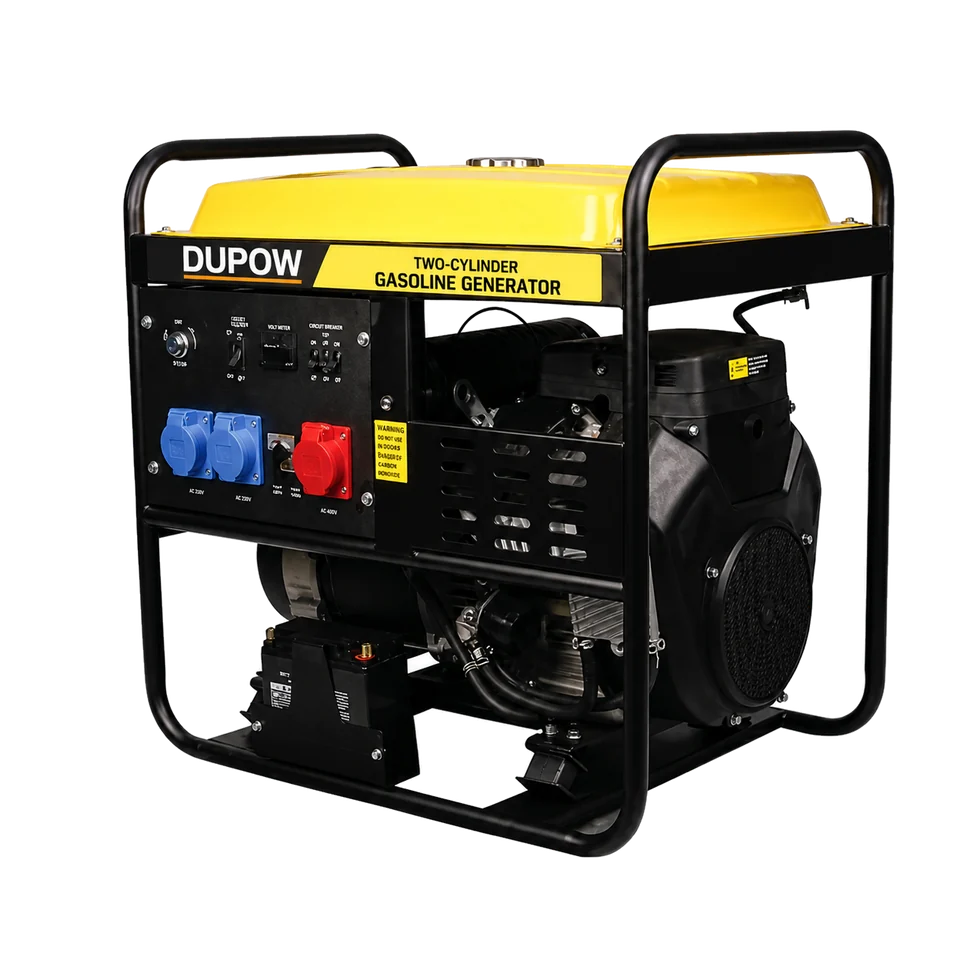

10.5 kVA Rated V-Twin Three-Phase Gasoline Generator — DUP-GG-016
Model DUP-GG-016
A 12 kVA maximum-output V-twin gasoline generator with electric start and three-phase equal-power output.
- 10.5 kVA · Rated output
The stated operating rating for this model.
- 12 kVA · Maximum output
Maximum rating; distinguish this value from the continuous operating rating.
- Electric · Starting system
Starting methods for this model’s engine.
Email this familyWhatsApp Ivan
Direct B2B contact: model and page link are prefilled; add your market and quantity.
10.5 kVARated output
12 kVAMaximum output
ElectricStarting system
FEATURES IN FOCUS
Portable gasoline power
Rated output: 10.5 kVA · Maximum output: 12 kVA · Starting system: Electric
THE MODEL, CLEARLY SPECIFIED
Product specifications
View the complete specifications for DUP-GG-016
| Primary category | Power Generation & Engines |
|---|---|
| Product type | Gasoline Generators |
| Public family | V-Twin Three-Phase Gasoline Generators |
| Configurations | 1 |
| Power source | Gasoline |
CONFIGURATION MATRIX
Choose the right configuration
Tell us the model, order quantity and destination market. We will put together the accessory, branding and packaging options in your quotation.
| Product view | Inquiry reference | Configuration | Product specifications |
|---|---|---|---|
 | DUP-GG-016Lead configuration | Product configuration | Frequency: 50 / 60 HzMaximum output: 12 kVARated output: 10.5 kVARated AC voltage: 220 / 380 VPhase / power factor: Three phase equal power / 0.8Starting system: ElectricFuel tank: 44 LEngine: 713 cc twin-cylinder forced-air-cooled OHV four-strokeLubricating oil: SAE 10W-30 / 1.5 LIgnition: Contactless TCIAir filter: Paper + foamPackage: Outer carton: 1,070 × 900 × 1,150 mm. Quantity: 1 set/ctn. Net / gross weight: 135.4 / 137.9 kg. Loading: 24 sets/20 ft; 52 sets/40 HQ.Certification documentation available upon request. |
WHOLESALE & PRIVATE LABEL
Build your order around DUP-GG-016.
Send the model, quantity and destination market, together with the required accessories, branding and packing. For cordless tools, include the tool-only or kit format, battery model and charger requirements.
- Typical MOQ
- 100 units
- Sample time
- Around 7 days
- Production
- Around 30 days
- OEM / Private Label
- Welcome
COMMERCIAL TERMS
Order options and lead times
Find MOQ and lead time above. We can prepare samples, private-label packaging and shipping details with your quotation.
MOQ and lead time depend on the model, kit and branding scope. Your quotation sets out the order quantity, price and production schedule.
B2B BUYER'S GUIDE
Is DUP-GG-016 right for your product program?
For importers and distributors comparing gasoline generators by rated output, phase, voltage, frequency, starting system, fuel capacity and portable-frame configuration.
Typical applications
- Portable power programs sized from continuous and starting loads
- Outdoor backup-power ranges with destination-market socket and breaker options
- Jobsite or equipment-support programs within the reviewed output and duty limits
Build your quotation
- Choose your 10.5 kVA version and the connected load profile
- Confirm frequency, AC voltage, phase, sockets, breaker, starting system and fuel tank
- Approve branding, packaging, documentation and safe-use instructions for the destination market
We help importers, distributors and private-label buyers build their tool range through product sourcing, samples, branding, packaging and export delivery.
We help you select the tool and accessories for your application, with samples, private-label packaging and export support.
QUICK FAMILY COMPARISON
Compare nearby Gasoline Generators options
Compare related models and add your shortlist to one inquiry.
| Model | Product & design | Rated & maximum output | Engine, phase & starting | Fuel | Inquiry |
|---|---|---|---|---|---|
| DUP-GG-014 |  5.5–7.0 kVA Rated Recessed-Panel Gasoline Generator for Portable Power Programs | Rated output: 7.0 kVA copper / 5.5 kVA aluminium Maximum output: 7.5 kVA copper / 6.0 kVA aluminium | Engine: 458 cc single-cylinder air-cooled OHV four-stroke Starting options: Recoil / electric Phase / power factor: Single phase cos φ = 1 or three phase cos φ = 0.8 | Gasoline | |
| DUP-GG-015 |  5.5–7.0 kVA Rated Wheeled Gasoline Generator for Portable Power Programs | Rated output: 7.0 kVA copper / 5.5 kVA aluminium Maximum output: 7.5 kVA copper / 6.0 kVA aluminium | Engine: 458 cc single-cylinder air-cooled OHV four-stroke Starting options: Recoil / electric Phase / power factor: Single phase cos φ = 1 or three phase cos φ = 0.8 | Gasoline | |
| DUP-GG-016 Current page | 10.5 kVA Rated V-Twin Three-Phase Gasoline Generator for Portable Power Programs | Rated output: 10.5 kVA Maximum output: 12 kVA | Engine: 713 cc twin-cylinder forced-air-cooled OHV four-stroke Starting system: Electric Phase / power factor: Three phase equal power / 0.8 | Gasoline | Current family |
| DUP-GG-017 |  18 kVA Rated V-Twin Three-Phase Gasoline Generator for Portable Power Programs | Rated output: 18 kVA Maximum output: 20 kVA | Engine: 999 cc twin-cylinder forced-air-cooled OHV four-stroke Starting system: Electric Phase / power factor: Three phase equal power / 0.8 | Gasoline |
Compare rated and maximum output, engine, phase and starting method using the published generator data. We prepare the accessory kit, packaging and delivery details with your quotation.
BUYER RESOURCES
Continue the sourcing review
Three focused routes cover product comparison, OEM planning and a clearer RFQ.
Compare Gasoline GeneratorsReview nearby rated-output, phase, voltage, socket, starting and frame configurations.→
OEM & private-label processPlan branding, packaging, sample approval and order coordination.→
Build a comparable RFQSend the market, quantity, rated output, voltage, phase, socket, starting system and fuel capacity and document needs.→
MODEL FAQ
Questions before adding DUP-GG-016 to an RFQ
Choose the model for your application, then send us your quantity and destination market.
What is DUP-GG-016 best suited to?
A 12 kVA maximum-output V-twin gasoline generator with electric start and three-phase equal-power output. It is intended for importers and distributors comparing gasoline-generator configurations for portable, backup and jobsite power ranges.
Can DUP-GG-016 be supplied for OEM or private-label orders?
Yes. We support your branding, housing color, labels, manuals and packaging. Typical MOQ is 100 units; send us the model and quantity for your quotation.
What compliance documents are available for DUP-GG-016?
Ask us about the product documentation required for your destination market when requesting your quotation.
How does DUPOW support my product range?
DUPOW is our tools brand at Ningbo Hopes Import and Export Co., Ltd. We bring together product sourcing, private-label development, quality follow-up and export delivery for your tool range.
What information should I send for a model-specific quotation?
Send the destination market, estimated quantity, voltage and plug, rated and maximum output, voltage, phase, frequency, socket, breaker, starting and fuel-tank configuration, intended application, accessories, OEM or packaging scope, and document requirements. DUPOW normally replies by email within one business day.
