PRODUCT FAMILY

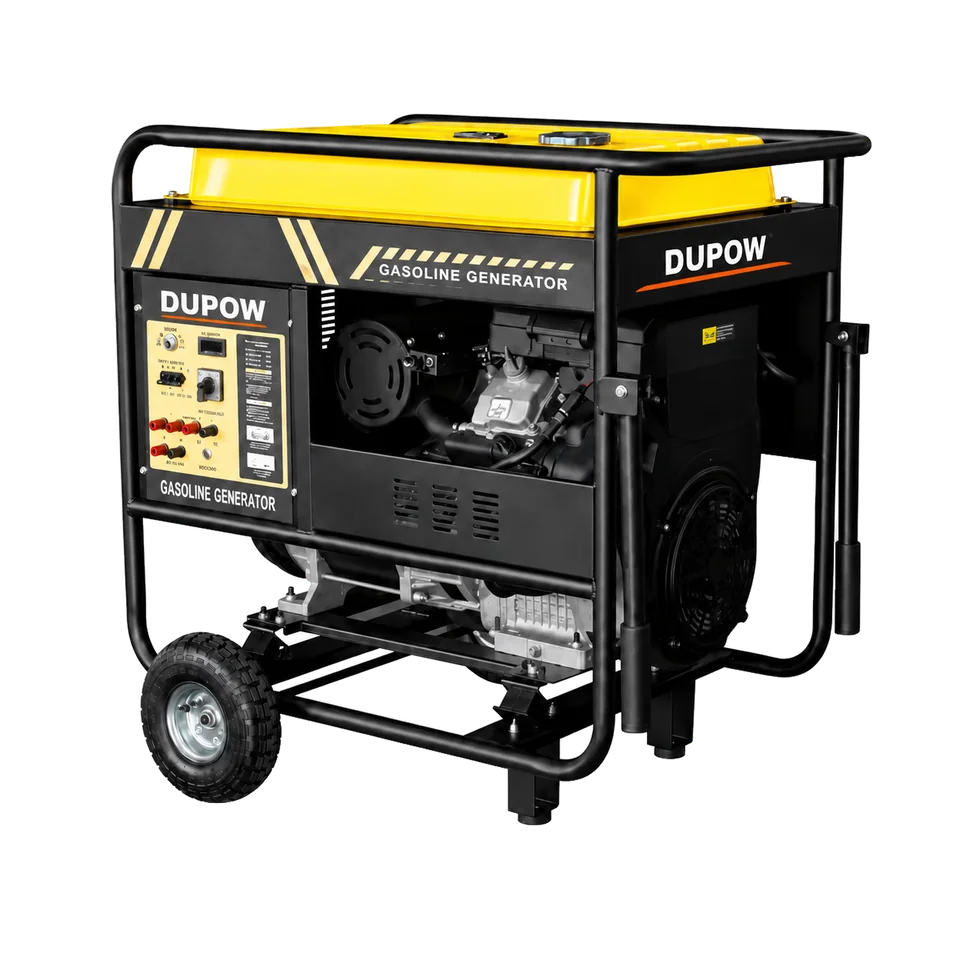

18 kVA Rated V-Twin Three-Phase Gasoline Generator
1 listed configuration · Family DUP-GG-017
A 20 kVA maximum-output V-twin gasoline generator with electric start, three-phase equal-power output and a wheeled frame.
| Primary category | Power Generation & Engines |
|---|---|
| Product type | Gasoline Generators |
| Public family | V-Twin Three-Phase Gasoline Generators |
| Configurations | 1 |
| Power source | Gasoline |
| Battery platform | Not applicable |
| Motor type | Configuration to confirm |
Voltage, plug, exact configuration, compliance documents, packaging and branding are confirmed for the destination market before quotation or order placement. The commercial terms below are planning references; final terms are confirmed in the quotation.
QUICK FAMILY COMPARISON
Compare nearby Gasoline Generators options
Review the closest product families, then add the relevant options to one inquiry.
| Family | Product | Key specifications | Power | Inquiry |
|---|---|---|---|---|
| DUP-GG-014 | 5.5–7.0 kVA Rated Recessed-Panel Gasoline Generator | Frequency: 50 / 60 Hz Maximum output: 7.5 kVA copper / 6.0 kVA aluminium | Gasoline | |
| DUP-GG-015 | 5.5–7.0 kVA Rated Wheeled Gasoline Generator | Frequency: 50 / 60 Hz Maximum output: 7.5 kVA copper / 6.0 kVA aluminium | Gasoline | |
| DUP-GG-016 | 10.5 kVA Rated V-Twin Three-Phase Gasoline Generator | Frequency: 50 / 60 Hz Maximum output: 12 kVA | Gasoline | |
| DUP-GG-017 Current page | 18 kVA Rated V-Twin Three-Phase Gasoline Generator | Frequency: 50 / 60 Hz Maximum output: 20 kVA | Gasoline | Current family |
COMMERCIAL TERMS
Planning reference for this family
- Typical MOQ
- 100 units Power Generation & Engines
- Sample lead time
- Around 7 days After specifications are confirmed
- Production lead time
- Around 30 days After sample and packaging approval
- OEM
- Welcome Scope confirmed for each program
These are planning references for typical standard configurations, not a binding quotation. MOQ may vary with the model, OEM scope, customized colors, packaging, voltage, plug type and certification requirements. The final MOQ and schedule are confirmed for each quotation and order.
CONFIGURATION MATRIX
Choose the right configuration
Use the DUPOW configuration reference in your inquiry. Final market version, accessories and packaging remain subject to confirmation.
| Product view | Inquiry reference | Configuration | Reviewed specifications |
|---|---|---|---|
 | DUP-GG-017Lead configuration | Current reviewed configuration | Frequency: 50 / 60 HzMaximum output: 20 kVARated output: 18 kVARated AC voltage: 220 / 380 VPhase / power factor: Three phase equal power / 0.8Starting system: ElectricFuel tank: 65 LEngine: 999 cc twin-cylinder forced-air-cooled OHV four-strokeLubricating oil: SAE 10W-30 / 2.2 LIgnition: Contactless TCIAir filter: Paper + foamPackage: Outer carton: 1,070 × 900 × 1,150 mm. Quantity: 1 set/ctn. Net / gross weight: 178 / 180.5 kg. Loading: 24 sets/20 ft; 52 sets/40 HQ.Certification documentation available upon request. |
