PRODUCT FAMILY

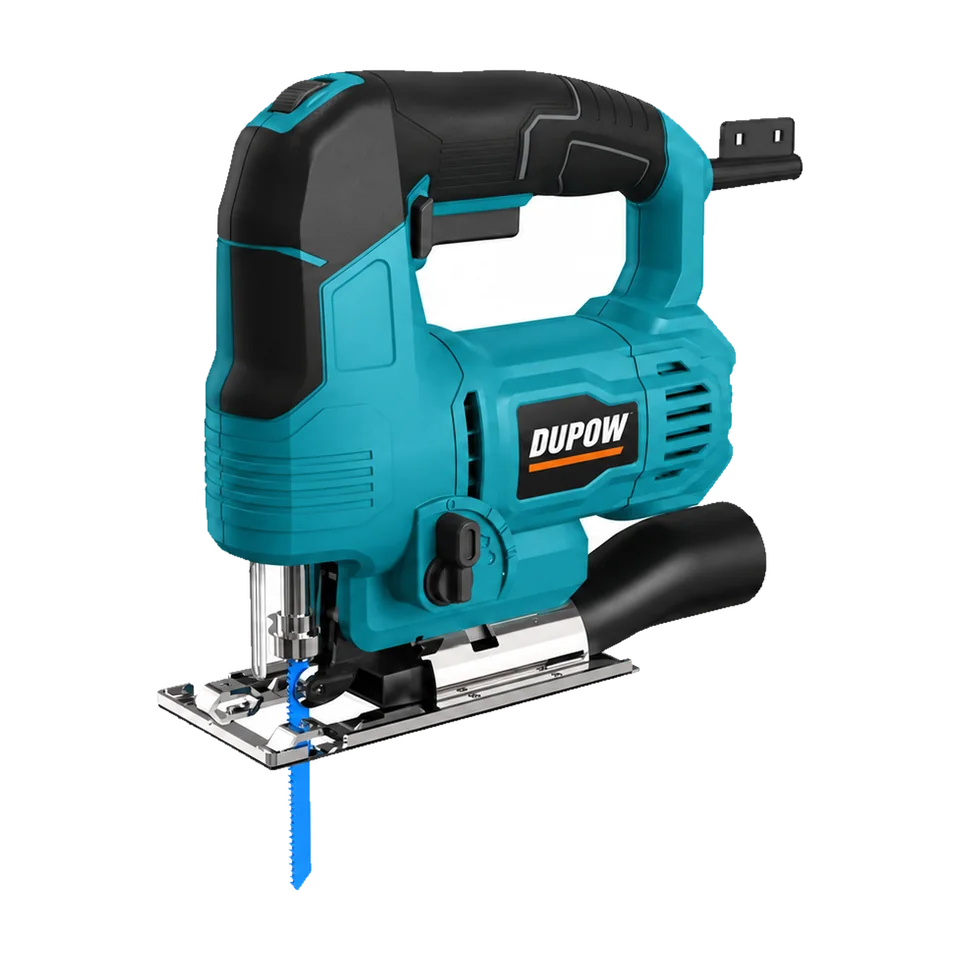

650W 80 mm Variable-Speed Jigsaw — Design A
1 listed configuration · Family DUP-JS-022
A distributor-ready 650W 80 mm Variable-Speed Jigsaw — Design A for curved, bevel and general sheet-material cutting, combining no-load speed: 800–3000 spm with straightforward service-oriented construction.
| Primary category | Handheld Saws & Cutting |
|---|---|
| Product type | Jig Saws |
| Public family | Jig Saws |
| Configurations | 1 |
| Power source | Corded Electric |
| Battery platform | Not applicable |
| Motor type | Universal motor |
Voltage, plug, exact configuration, compliance documents, packaging and branding are confirmed for the destination market before quotation or order placement. The commercial terms below are planning references; final terms are confirmed in the quotation.
QUICK FAMILY COMPARISON
Compare nearby Jig Saws options
Review the closest product families, then add the relevant options to one inquiry.
| Family | Product | Key specifications | Power | Inquiry |
|---|---|---|---|---|
| DUP-JS-021 | 550W 65 mm Variable-Speed Jigsaw | Voltage/frequency: 230–240 V/50 Hz Rated input power: 550 W | Corded Electric | |
| DUP-JS-022 Current page | 650W 80 mm Variable-Speed Jigsaw — Design A | Voltage/frequency: 230–240 V/50 Hz Rated input power: 650 W | Corded Electric | Current family |
| DUP-JS-023 | 400W 55 mm Variable-Speed Jigsaw — Design A | Voltage/frequency: 230–240 V/50 Hz Rated input power: 400 W | Corded Electric | |
| DUP-JS-024 | 750W 100 mm Variable-Speed Jigsaw — Design B | Voltage/frequency: 230–240 V/50 Hz Rated input power: 750 W | Corded Electric |
COMMERCIAL TERMS
Planning reference for this family
- Typical MOQ
- 500 units Handheld Saws & Cutting
- Sample lead time
- Around 7 days After specifications are confirmed
- Production lead time
- Around 30 days After sample and packaging approval
- OEM
- Welcome Scope confirmed for each program
These are planning references for typical standard configurations, not a binding quotation. MOQ may vary with the model, OEM scope, customized colors, packaging, voltage, plug type and certification requirements. The final MOQ and schedule are confirmed for each quotation and order.
COMPLIANCE DOCUMENTS
Redacted previews available for this family
An internal source-model cross-check found an exact textual match between this DUPOW family and the supplier-held document represented below. The public image is a further-sanitized summary, not the original document.
Important: A preview link is evidence of a reviewed source-model match, not a product certification badge or a promise that every configuration is currently covered. Exact applicability, validity and destination-market requirements are reconfirmed for the ordered configuration before quotation or document release.
CONFIGURATION MATRIX
Choose the right configuration
Use the DUPOW configuration reference in your inquiry. Final market version, accessories and packaging remain subject to confirmation.
| Product view | Inquiry reference | Configuration | Reviewed specifications |
|---|---|---|---|
 | DUP-JS-022Lead configuration | Current reviewed configuration | Voltage/frequency: 230–240 V/50 HzRated input power: 650 WNo-load speed: 800–3000 spmStroke length: 19 mmBevel range: −45° to +45°Maximum cutting capacity : 80 mm in wood6 mm in steelSteel baseTool-free blade changeOrbital/pendulum actionDust-extraction connectionStandard accessories: 1 × wood cutting blade, 1 × hex keyPackage: Individual pack: Color Box; 25.5 × 8.5 × 21 cm. Outer carton: 45.5 × 27 × 46 cm. Quantity: 10 pcs/ctn. Net/gross weight: 17 kg / 18 kg. Container loading (20 ft / 40 ft / 40 ft HQ): 4900 pcs / 9900 pcs / 12000 pcs.Certification: GS, EMC, ROHS; destination-market documents to be confirmed before quotation. |
