PRODUCT FAMILY

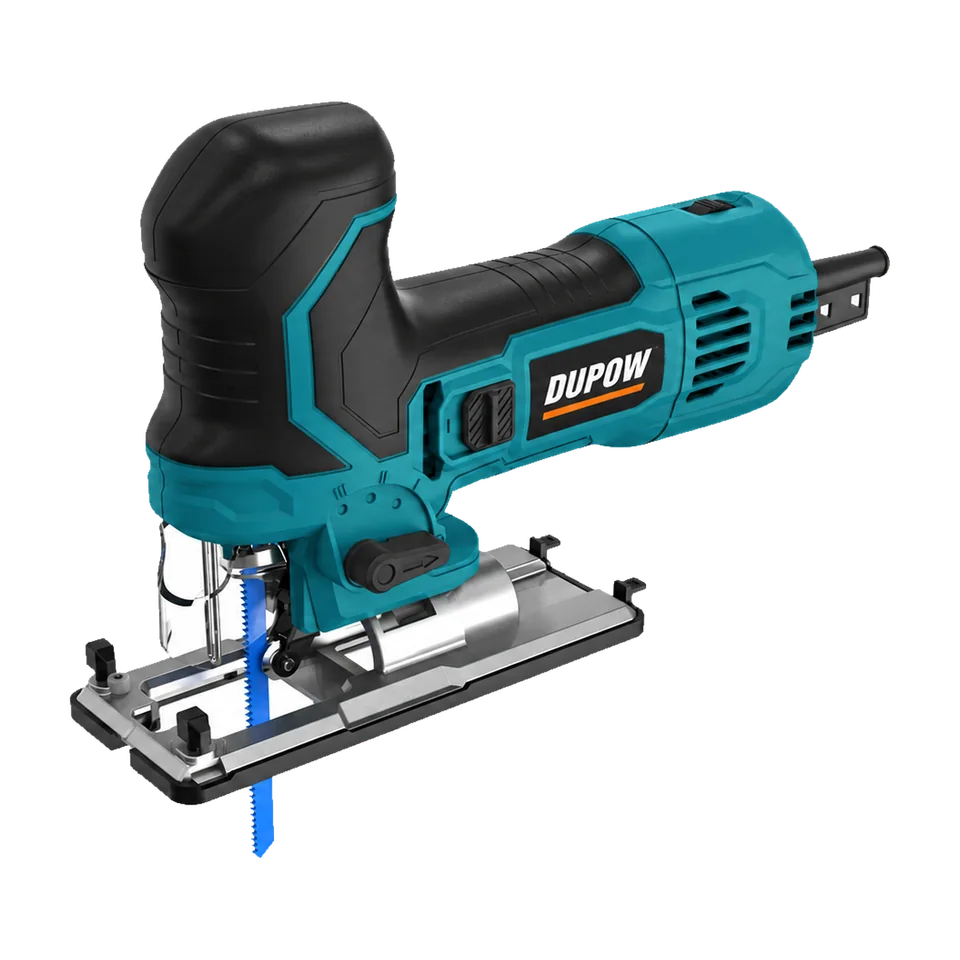

750W 100 mm Variable-Speed Jigsaw — Design B
1 listed configuration · Family DUP-JS-024
A distributor-ready 750W 100 mm Variable-Speed Jigsaw — Design B for curved, bevel and general sheet-material cutting, combining no-load speed: 800–3000 spm with straightforward service-oriented construction.
| Primary category | Handheld Saws & Cutting |
|---|---|
| Product type | Jig Saws |
| Public family | Jig Saws |
| Configurations | 1 |
| Power source | Corded Electric |
| Battery platform | Not applicable |
| Motor type | Universal motor |
Voltage, plug, exact configuration, compliance documents, packaging and branding are confirmed for the destination market before quotation or order placement. The commercial terms below are planning references; final terms are confirmed in the quotation.
QUICK FAMILY COMPARISON
Compare nearby Jig Saws options
Review the closest product families, then add the relevant options to one inquiry.
| Family | Product | Key specifications | Power | Inquiry |
|---|---|---|---|---|
| DUP-JS-023 | 400W 55 mm Variable-Speed Jigsaw — Design A | Voltage/frequency: 230–240 V/50 Hz Rated input power: 400 W | Corded Electric | |
| DUP-JS-024 Current page | 750W 100 mm Variable-Speed Jigsaw — Design B | Voltage/frequency: 230–240 V/50 Hz Rated input power: 750 W | Corded Electric | Current family |
| DUP-JS-025 | 800W 100 mm Variable-Speed Jigsaw — Design B | Voltage/frequency: 230–240 V/50 Hz Rated input power: 800 W | Corded Electric | |
| DUP-JS-026 | 650W 80 mm Variable-Speed Jigsaw — Design B | Voltage/frequency: 230–240 V/50 Hz Rated input power: 650 W | Corded Electric |
COMMERCIAL TERMS
Planning reference for this family
- Typical MOQ
- 500 units Handheld Saws & Cutting
- Sample lead time
- Around 7 days After specifications are confirmed
- Production lead time
- Around 30 days After sample and packaging approval
- OEM
- Welcome Scope confirmed for each program
These are planning references for typical standard configurations, not a binding quotation. MOQ may vary with the model, OEM scope, customized colors, packaging, voltage, plug type and certification requirements. The final MOQ and schedule are confirmed for each quotation and order.
CONFIGURATION MATRIX
Choose the right configuration
Use the DUPOW configuration reference in your inquiry. Final market version, accessories and packaging remain subject to confirmation.
| Product view | Inquiry reference | Configuration | Reviewed specifications |
|---|---|---|---|
 | DUP-JS-024Lead configuration | Current reviewed configuration | Voltage/frequency: 230–240 V/50 HzRated input power: 750 WNo-load speed: 800–3000 spmStroke length: 22 mmBevel range: −45° to +45°Maximum cutting capacity: 100 mm in woodIntegrated LED work lightTool-free blade changeStandard accessories: 1 × wood cutting blade, 1 × hex key, 1 × Guide rulerPackage: Individual pack: Color Box; 34 × 8.5 × 21 cm. Outer carton: 44 × 36 × 44.2 cm. Quantity: 10 pcs/ctn. Net/gross weight: 23 kg / 24 kg. Container loading (20 ft / 40 ft / 40 ft HQ): 4000 pcs / 8000 pcs / 9700 pcs.Certification: GS, EMC, ROHS; destination-market documents to be confirmed before quotation. |
