PRODUCT FAMILY

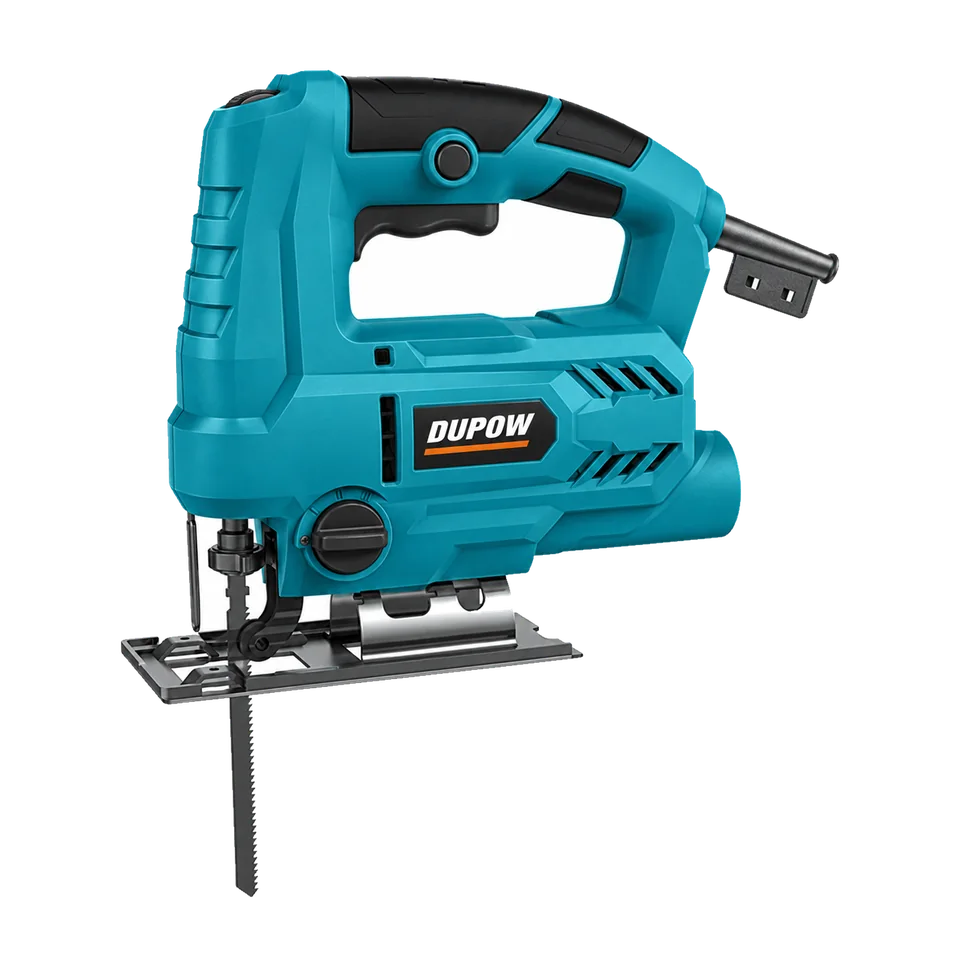

650W 80 mm Variable-Speed Jigsaw — Design B
1 listed configuration · Family DUP-JS-026
A distributor-ready 650W 80 mm Variable-Speed Jigsaw — Design B for curved, bevel and general sheet-material cutting, combining no-load speed: 0–3000 spm with straightforward service-oriented construction.
| Primary category | Handheld Saws & Cutting |
|---|---|
| Product type | Jig Saws |
| Public family | Jig Saws |
| Configurations | 1 |
| Power source | Corded Electric |
| Battery platform | Not applicable |
| Motor type | Universal motor |
Voltage, plug, exact configuration, compliance documents, packaging and branding are confirmed for the destination market before quotation or order placement. The commercial terms below are planning references; final terms are confirmed in the quotation.
QUICK FAMILY COMPARISON
Compare nearby Jig Saws options
Review the closest product families, then add the relevant options to one inquiry.
| Family | Product | Key specifications | Power | Inquiry |
|---|---|---|---|---|
| DUP-JS-025 | 800W 100 mm Variable-Speed Jigsaw — Design B | Voltage/frequency: 230–240 V/50 Hz Rated input power: 800 W | Corded Electric | |
| DUP-JS-026 Current page | 650W 80 mm Variable-Speed Jigsaw — Design B | Voltage/frequency: 230–240 V/50 Hz Rated input power: 650 W | Corded Electric | Current family |
| DUP-JS-027 | 400W 55 mm Variable-Speed Jigsaw — Design B | Voltage/frequency: 230–240 V/50 Hz Rated input power: 400 W | Corded Electric | |
| DUP-JS-028 | 20V Cordless 100 mm Variable-Speed Jigsaw | Voltage/frequency: 20 V DC No-load speed: 0–3000 spm | 20V Battery Platform |
COMMERCIAL TERMS
Planning reference for this family
- Typical MOQ
- 500 units Handheld Saws & Cutting
- Sample lead time
- Around 7 days After specifications are confirmed
- Production lead time
- Around 30 days After sample and packaging approval
- OEM
- Welcome Scope confirmed for each program
These are planning references for typical standard configurations, not a binding quotation. MOQ may vary with the model, OEM scope, customized colors, packaging, voltage, plug type and certification requirements. The final MOQ and schedule are confirmed for each quotation and order.
CONFIGURATION MATRIX
Choose the right configuration
Use the DUPOW configuration reference in your inquiry. Final market version, accessories and packaging remain subject to confirmation.
| Product view | Inquiry reference | Configuration | Reviewed specifications |
|---|---|---|---|
 | DUP-JS-026Lead configuration | Current reviewed configuration | Voltage/frequency: 230–240 V/50 HzRated input power: 650 WNo-load speed: 0–3000 spmStroke length: 19 mmBevel range: −45° to +45°Maximum cutting capacity : 80 mm in wood6 mm in steelSteel baseTool-free blade changeOrbital/pendulum actionDust-extraction connectionStandard accessories: 1 × wood cutting blade, 1 × hex key, 1 × Guide rulerPackage: Individual pack: Color Box; 25.5 × 8.5 × 23 cm. Outer carton: 45.5 × 27 × 47.5 cm. Quantity: 10 pcs/ctn. Net/gross weight: 18 kg / 19 kg. Container loading (20 ft / 40 ft / 40 ft HQ): 4800 pcs / 9600 pcs / 11600 pcs.Certification: GS, EMC, ROHS; destination-market documents to be confirmed before quotation. |
