PRODUCT FAMILY

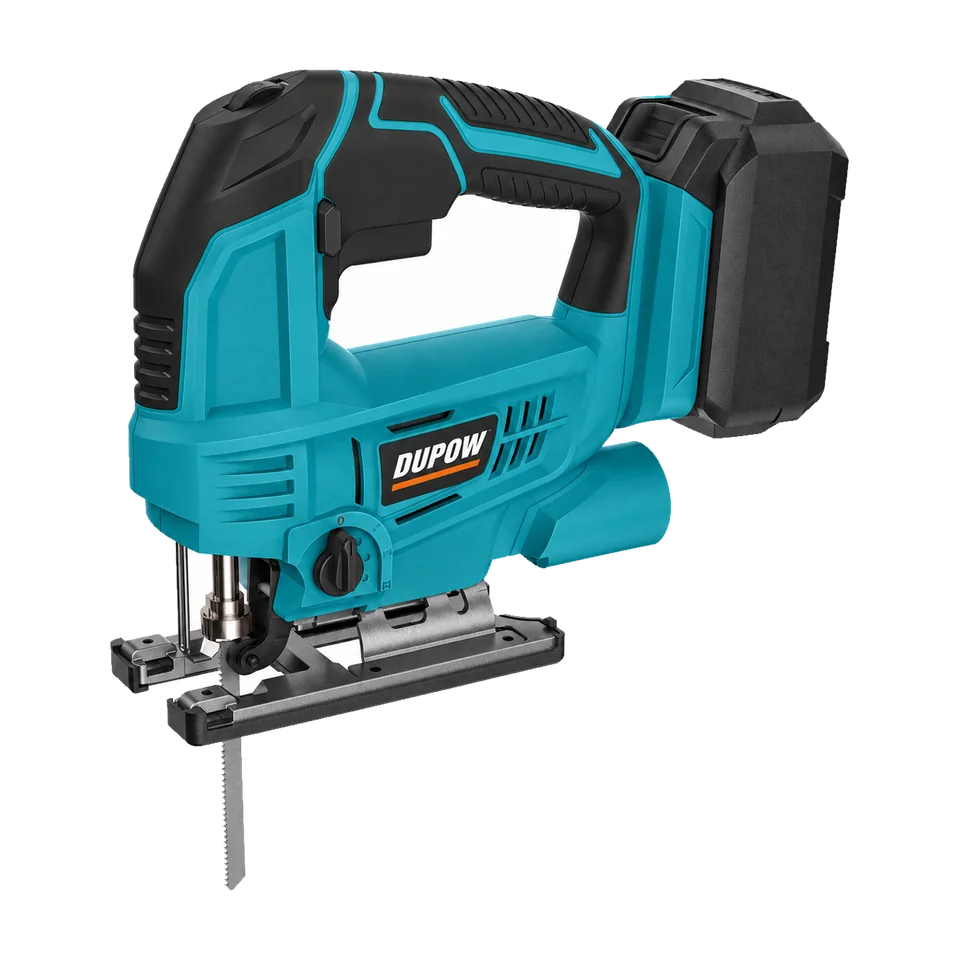

20V Cordless 100 mm Variable-Speed Jigsaw
1 listed configuration · Family DUP-JS-028
A distributor-ready 20V Cordless 100 mm Variable-Speed Jigsaw for curved, bevel and general sheet-material cutting, combining stroke length: 21 mm with straightforward service-oriented construction.
| Primary category | Handheld Saws & Cutting |
|---|---|
| Product type | Jig Saws |
| Public family | Jig Saws |
| Configurations | 1 |
| Power source | Cordless |
| Battery platform | 20V Battery Platform |
| Motor type | Brushed DC motor |
Voltage, plug, exact configuration, compliance documents, packaging and branding are confirmed for the destination market before quotation or order placement. The commercial terms below are planning references; final terms are confirmed in the quotation.
QUICK FAMILY COMPARISON
Compare nearby Jig Saws options
Review the closest product families, then add the relevant options to one inquiry.
| Family | Product | Key specifications | Power | Inquiry |
|---|---|---|---|---|
| DUP-JS-026 | 650W 80 mm Variable-Speed Jigsaw — Design B | Voltage/frequency: 230–240 V/50 Hz Rated input power: 650 W | Corded Electric | |
| DUP-JS-027 | 400W 55 mm Variable-Speed Jigsaw — Design B | Voltage/frequency: 230–240 V/50 Hz Rated input power: 400 W | Corded Electric | |
| DUP-JS-028 Current page | 20V Cordless 100 mm Variable-Speed Jigsaw | Voltage/frequency: 20 V DC No-load speed: 0–3000 spm | 20V Battery Platform | Current family |
| DUP-JS-029 | 20V Cordless 80 mm Variable-Speed Jigsaw | Voltage/frequency: 20 V DC No-load speed: 800–3000 spm | 20V Battery Platform |
COMMERCIAL TERMS
Planning reference for this family
- Typical MOQ
- 500 units Handheld Saws & Cutting
- Sample lead time
- Around 7 days After specifications are confirmed
- Production lead time
- Around 30 days After sample and packaging approval
- OEM
- Welcome Scope confirmed for each program
These are planning references for typical standard configurations, not a binding quotation. MOQ may vary with the model, OEM scope, customized colors, packaging, voltage, plug type and certification requirements. The final MOQ and schedule are confirmed for each quotation and order.
CONFIGURATION MATRIX
Choose the right configuration
Use the DUPOW configuration reference in your inquiry. Final market version, accessories and packaging remain subject to confirmation.
| Product view | Inquiry reference | Configuration | Reviewed specifications |
|---|---|---|---|
 | DUP-JS-028Lead configuration | Current reviewed configuration | Voltage/frequency: 20 V DCNo-load speed: 0–3000 spmStroke length: 21 mmBevel range: −45° to +45°Maximum cutting capacity : 100 mm in wood6 mm in steelIntegrated LED work lightTool-free blade changeOrbital/pendulum actionDust-extraction connectionStandard accessories: 1 × wood cutting blade, 1 × hex key, 1 × Guide rulePackage: Individual pack: Color Box; 25 × 9 × 23 cm. Outer carton: 45.8 × 27 × 48 cm. Quantity: 10 pcs/ctn. Net/gross weight: 15 kg / 16 kg. Container loading (20 ft / 40 ft / 40 ft HQ): 4700 pcs / 9400 pcs / 11400 pcs.Certification: GS, EMC, ROHS; destination-market documents to be confirmed before quotation. |
