PRODUCT FAMILY

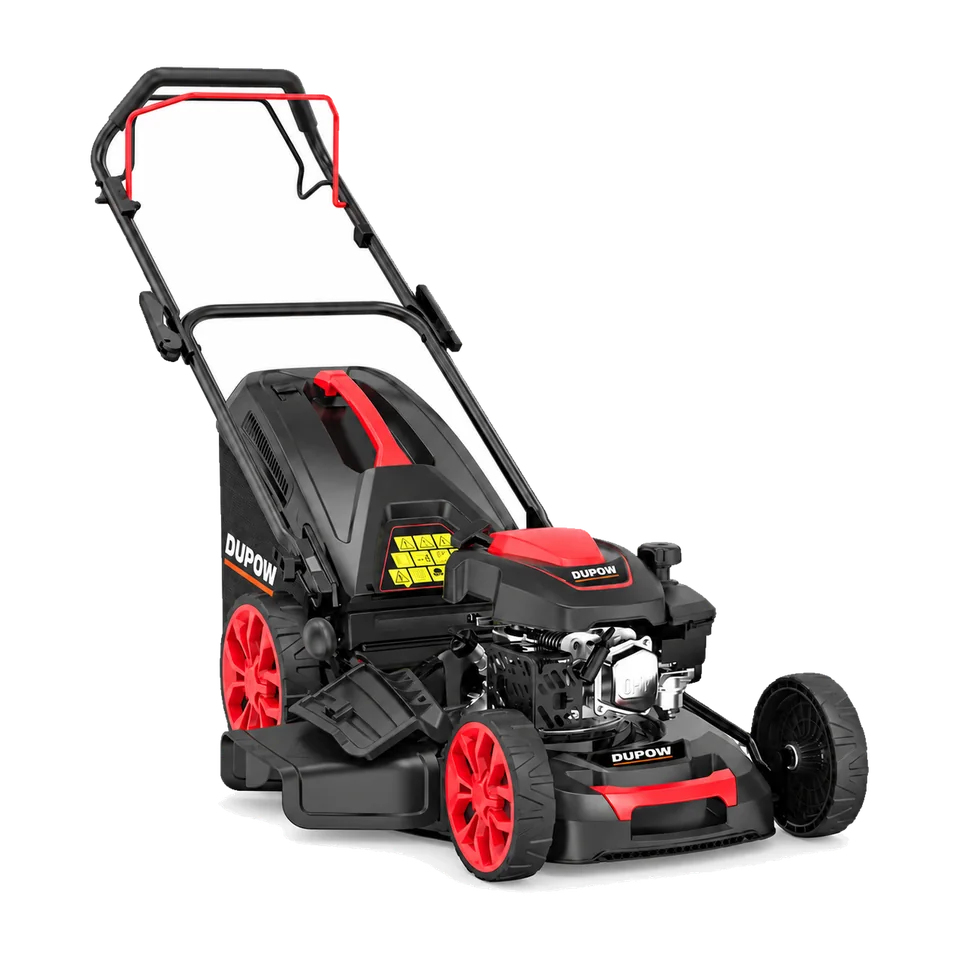

200cc 530 mm Self-Propelled Gasoline Lawn Mower
1 listed configuration · Family DUP-LM-019
A self-propelled 530 mm gasoline mower with a 200 cc engine, four cutting functions and high rear wheels.
| Primary category | Garden & Outdoor Equipment |
|---|---|
| Product type | Lawn Mowers |
| Public family | Gasoline Lawn Mowers |
| Configurations | 1 |
| Power source | Gasoline |
| Battery platform | Not applicable |
| Motor type | Four-stroke OHV |
Voltage, plug, exact configuration, compliance documents, packaging and branding are confirmed for the destination market before quotation or order placement. The commercial terms below are planning references; final terms are confirmed in the quotation.
QUICK FAMILY COMPARISON
Compare nearby Lawn Mowers options
Review the closest product families, then add the relevant options to one inquiry.
| Family | Product | Key specifications | Power | Inquiry |
|---|---|---|---|---|
| DUP-LM-017 | 173cc 510 mm Push Gasoline Lawn Mower | Engine: 173 cc single-cylinder four-stroke OHV gasoline engine Maximum engine output: 3.0 kW | Gasoline | |
| DUP-LM-018 | 200cc 510 mm Electric-Start Self-Propelled Gasoline Lawn Mower | Engine: 200 cc single-cylinder four-stroke OHV gasoline engine Maximum engine output: 3.8 kW | Gasoline | |
| DUP-LM-019 Current page | 200cc 530 mm Self-Propelled Gasoline Lawn Mower | Engine: 200 cc single-cylinder four-stroke OHV gasoline engine Maximum engine output: 3.8 kW | Gasoline | Current family |
| DUP-LM-020 | 224cc 560 mm Electric-Start Self-Propelled Gasoline Lawn Mower | Engine: 224 cc single-cylinder four-stroke OHV gasoline engine Maximum engine output: 4.4 kW | Gasoline |
COMMERCIAL TERMS
Planning reference for this family
- Typical MOQ
- 300 units Garden & Outdoor Equipment
- Sample lead time
- Around 7 days After specifications are confirmed
- Production lead time
- Around 30 days After sample and packaging approval
- OEM
- Welcome Scope confirmed for each program
These are planning references for typical standard configurations, not a binding quotation. MOQ may vary with the model, OEM scope, customized colors, packaging, voltage, plug type and certification requirements. The final MOQ and schedule are confirmed for each quotation and order.
COMPLIANCE DOCUMENTS
Redacted previews available for this family
An internal source-model cross-check found an exact textual match between this DUPOW family and the supplier-held document represented below. The public image is a further-sanitized summary, not the original document.
Important: A preview link is evidence of a reviewed source-model match, not a product certification badge or a promise that every configuration is currently covered. Exact applicability, validity and destination-market requirements are reconfirmed for the ordered configuration before quotation or document release.
CONFIGURATION MATRIX
Choose the right configuration
Use the DUPOW configuration reference in your inquiry. Final market version, accessories and packaging remain subject to confirmation.
| Product view | Inquiry reference | Configuration | Reviewed specifications |
|---|---|---|---|
 | DUP-LM-019Lead configuration | Current reviewed configuration | Engine: 200 cc single-cylinder four-stroke OHV gasoline engineMaximum engine output: 3.8 kWStarting system: recoil startRated engine speed: 2,800 rpmDrive type: self-propelledDeck material: steelCutting width: 530 mmCutting height: 25–75 mm; 7 positionsHeight adjustment: centralCutting functions: mowing, grass collection, mulching and side discharge (4-in-1)Grass collector: 60 L half-plastic box; 65 L fabric bag optionWheels: 8 in front / 10 or 11 in rearSound power level: 98 dB(A)Package: Outer carton: 885 × 580 × 480 mm (DV200 half-plastic-box configuration). Quantity: 1 pc/ctn. Net weight: To be confirmed. Gross weight: To be confirmed. Container loading (20 ft / 40 ft / 40 ft HQ): 104 pcs / 212 pcs / 265 pcs.Certification documentation available upon request. |
