Key performance & functions
- Engine: 224 cc single-cylinder four-stroke OHV gasoline engine
- Maximum engine output: 4.4 kW
- Starting system: electric start with recoil backup
- Rated engine speed: 2,800 rpm
DUP-LM-020
Lawn Mowers

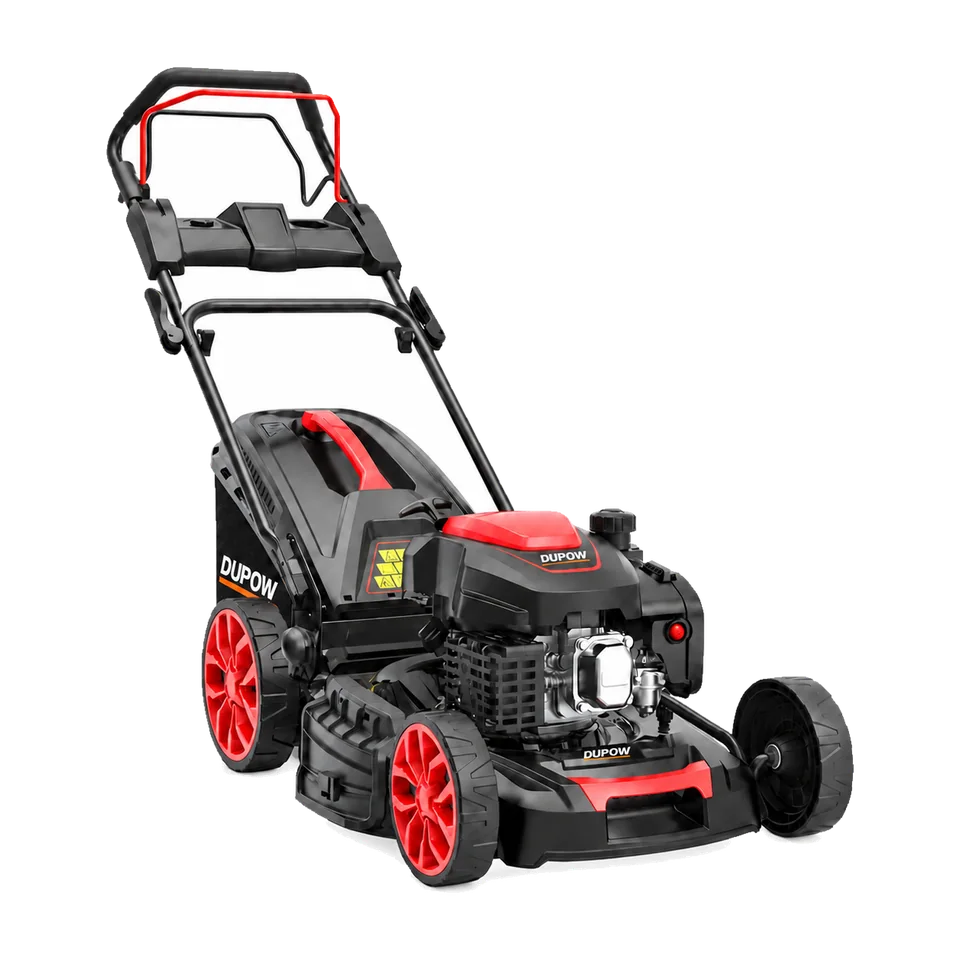

224cc 560 mm Electric-Start Self-Propelled Gasoline Lawn Mower — DUP-LM-020
224 cc · Electric start · DUP-LM-020
A 560 mm wide-cut mower with self-propelled drive, electric start and four cutting functions for maintaining larger lawns.
- Self-propelled drive
The mower drives forward, reducing the need for continuous pushing.
- Electric start + recoil backup
Two starting methods on the same model.
- Four cutting functions
Mowing, grass collection, mulching and side discharge.
Email this familyWhatsApp Ivan
Direct B2B contact: model and page link are prefilled; add your market and quantity.
560mm cutting width
25–75mm cutting height
65L fabric collector
FEATURES IN FOCUS
A wider cut.
More ways to manage clippings.
Choose the cutting height from seven positions with central adjustment. Collect clippings in the 65 L fabric bag, mulch them, or use side discharge to match your mowing routine.
Electric start, self-propelled drive and a steel deck.
The 224 cc four-stroke OHV engine powers a 560 mm cutting format. Front 8-inch and rear 11-inch wheels complete the listed mower configuration.
THE MODEL, CLEARLY SPECIFIED
Product specifications
View the complete specifications for DUP-LM-020
| Primary category | Garden & Outdoor Equipment |
|---|---|
| Product type | Lawn Mowers |
| Public family | Gasoline Lawn Mowers |
| Configurations | 1 |
| Power source | Gasoline |
| Net weight | 29.2 kg |
| Gross weight | 33.2 kg |
| Motor type | Four-stroke OHV |
CONFIGURATION MATRIX
Choose the right configuration
Tell us the model, order quantity and destination market. We will put together the accessory, branding and packaging options in your quotation.
| Product view | Inquiry reference | Configuration | Product specifications |
|---|---|---|---|
 | DUP-LM-020Lead configuration | Product configuration | Engine: 224 cc single-cylinder four-stroke OHV gasoline engineMaximum engine output: 4.4 kWStarting system: electric start with recoil backupRated engine speed: 2,800 rpmDrive type: self-propelledDeck material: steelCutting width: 560 mmCutting height: 25–75 mm; 7 positionsHeight adjustment: centralCutting functions: mowing, grass collection, mulching and side discharge (4-in-1)Grass collector: 65 L fabric bagWheels: 8 in front; 11 in rearSound power level: 98 dB(A)Package: Outer carton: 865 × 605 × 480 mm (half-plastic-box configuration). Quantity: 1 pc/ctn. Net weight: 29.2 kg. Gross weight: 33.2 kg. Container loading (20 ft / 40 ft / 40 ft HQ): 96 pcs / 204 pcs / 255 pcs.Certification documentation available upon request. |
WHOLESALE & PRIVATE LABEL
Build your order around DUP-LM-020.
Send your quantity, destination, branding and accessory requirements. We prepare the mower configuration, packaging and delivery details in one quotation.
- Typical MOQ
- 300 units
- Sample time
- Around 7 days
- Production
- Around 30 days
- OEM / Private Label
- Available
COMMERCIAL TERMS
Order options and lead times
Find MOQ and lead time above. We can prepare samples, private-label packaging and shipping details with your quotation.
MOQ and lead time depend on the model, kit and branding scope. Your quotation sets out the order quantity, price and production schedule.
B2B BUYER'S GUIDE
Is DUP-LM-020 right for your product program?
Garden-equipment importers evaluating a wide-cut 560 mm self-propelled mower with a 224 cc engine and electric start.
Typical applications
- Larger-lawn mowing product programs
- Dealer and high-specification garden-equipment ranges
- Programs requiring self-propelled operation and multiple cutting functions
Build your quotation
- Confirm engine, electric-start battery and recoil-backup configuration
- Confirm cutting functions, discharge parts, grass bag and accessories
- Approve market configuration, branding, packaging and applicable documents
We help importers, distributors and private-label buyers build their tool range through product sourcing, samples, branding, packaging and export delivery.
We help you select the tool and accessories for your application, with samples, private-label packaging and export support.
QUICK FAMILY COMPARISON
Compare nearby Lawn Mowers options
Compare related models and add your shortlist to one inquiry.
| Model | Product & design | Cutting width, height & collection | Engine, drive & cutting functions | Fuel | Inquiry |
|---|---|---|---|---|---|
| DUP-LM-017 |  173cc 510 mm Push Gasoline Lawn Mower for Lawn Care Programs | Cutting width: 510 mm Cutting height: 25–75 mm; 5 positions Grass collector: not fitted | Engine: 173 cc single-cylinder four-stroke OHV gasoline engine Drive type: hand push Starting system: recoil start | Gasoline | |
| DUP-LM-018 |  200cc 510 mm Electric-Start Self-Propelled Gasoline Lawn Mower for Lawn Care Programs | Cutting width: 510 mm Cutting height: 25–75 mm; 7 positions Grass collector: 65 L fabric bag | Engine: 200 cc single-cylinder four-stroke OHV gasoline engine Drive type: self-propelled Starting system: electric start with recoil backup | Gasoline | |
| DUP-LM-019 |  200cc 530 mm Self-Propelled Gasoline Lawn Mower for Lawn Care Programs | Cutting width: 530 mm Cutting height: 25–75 mm; 7 positions Grass collector: 65 L fabric bag | Engine: 200 cc single-cylinder four-stroke OHV gasoline engine Drive type: self-propelled Starting system: recoil start | Gasoline | |
| DUP-LM-020 Current page | 224cc 560 mm Electric-Start Self-Propelled Gasoline Lawn Mower | Cutting width: 560 mm Cutting height: 25–75 mm; 7 positions Grass collector: 65 L fabric bag | Engine: 224 cc single-cylinder four-stroke OHV gasoline engine Drive type: self-propelled Starting system: electric start with recoil backup | Gasoline | Current family |
Compare cutting width, height, collection, engine, drive, starting method and cutting functions using the published mower data. We prepare the accessory kit, packaging and delivery details with your quotation.
COMPLIANCE DOCUMENTS
Redacted previews available for this family
The document summary below is associated with this model. Commercial and supplier identifiers have been removed from the public summary.
Important: Document scope follows the model and configuration described in the summary. Include your destination market and kit requirements when requesting the documentation pack.
BUYER RESOURCES
Plan the next sourcing step
Continue from this model to range planning, OEM packaging, document review and a clearer quotation brief.
Gasoline lawn mower factory sourcingReview deck, engine, drive, cutting-function and OEM configuration choices.→OEM and private-label processReview branding, packaging, sample approval and order coordination.→Quality and document reviewUnderstand inspection records, exact-model matching and public evidence boundaries.→Prepare the mower RFQSend the target market, cutting requirement, quantity, OEM and document needs.→
QUICK ANSWERS
Before you shortlist
What changes with the cutting-height setting?
The central adjustment selects seven positions within the listed 25–75 mm range.
What does 4-in-1 mean on this mower?
The listed functions are mowing, grass collection, mulching and side discharge.
What should I include in a quotation request?
Quantity, destination market, branding, packaging and the required discharge and collection accessories.
MODEL-SPECIFIC INQUIRY
Ask us to review DUP-LM-020 for your market
Include your destination market, quantity and OEM scope. This family will be added to the inquiry automatically.
