DUP-PL-006
PRODUCT FAMILY
1200W 110 mm Electric Planer
1 listed configuration · Family DUP-PL-006
A high-output 110 mm electric planer for wider stock preparation, with a 3 mm planing depth and 14 mm rebating capacity.
Email this familyWhatsApp Ivan
Direct B2B contact: model and page link are prefilled; add your market and quantity.
| Primary category | Woodworking & Benchtop Tools |
|---|---|
| Product type | Planers & Jointers |
| Public family | Handheld Electric Planers |
| Configurations | 1 |
| Power source | Corded Electric |
| Battery platform | Not applicable |
| Motor type | Configuration to confirm |
Configuration and evidence check
Voltage, plug, exact configuration, compliance documents, packaging and branding are confirmed for the destination market before quotation or order placement. The commercial terms below are planning references; final terms are confirmed in the quotation.
PRODUCT REVIEW BOARD
One model. The numbers that shape the quotation.
A visual sourcing snapshot built only from the reviewed product family. Final voltage, plug, accessories, branding and documents are confirmed against the order configuration.
FROM MODEL TO MARKET VERSION
- 01 · SELECTConfirm destination market, quantity and intended application.
- 02 · CONFIGUREAlign voltage or battery platform, accessories, branding and packaging.
- 03 · VERIFYApprove the exact sample, written specification and applicable documents.
PRODUCT DETAILS & APPLICATIONS
Review the model from feature to application.
Use these views to shortlist the model. The exact sample, written specification, accessories, colors and order configuration remain the approval reference.
B2B BUYER'S GUIDE
Is DUP-PL-006 right for your product program?
Importers and private-label programs that need a wider 110 mm handheld planer for heavier stock-preparation ranges.

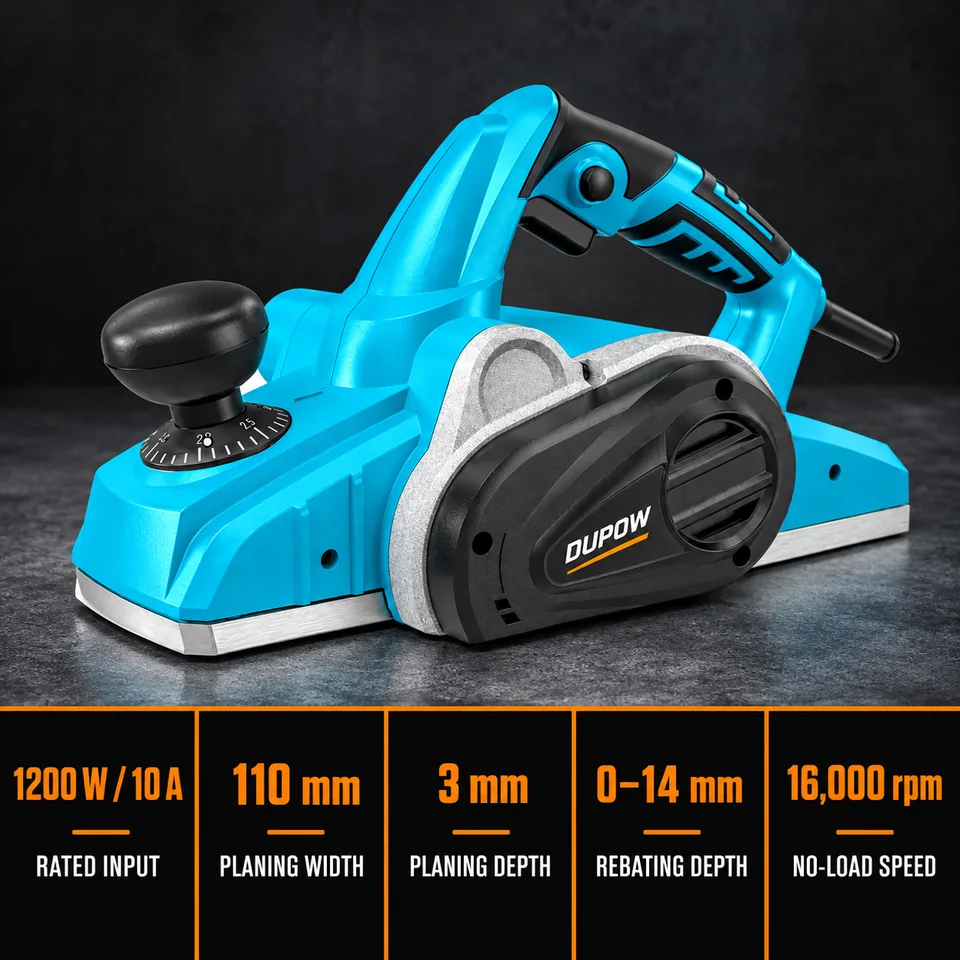

Reviewed configuration
- Voltage: 220–240 V / 120 V
- Frequency: 50/60 Hz
- Rated input: 1,200 W / 10 A
- No-load speed: 16,000 rpm

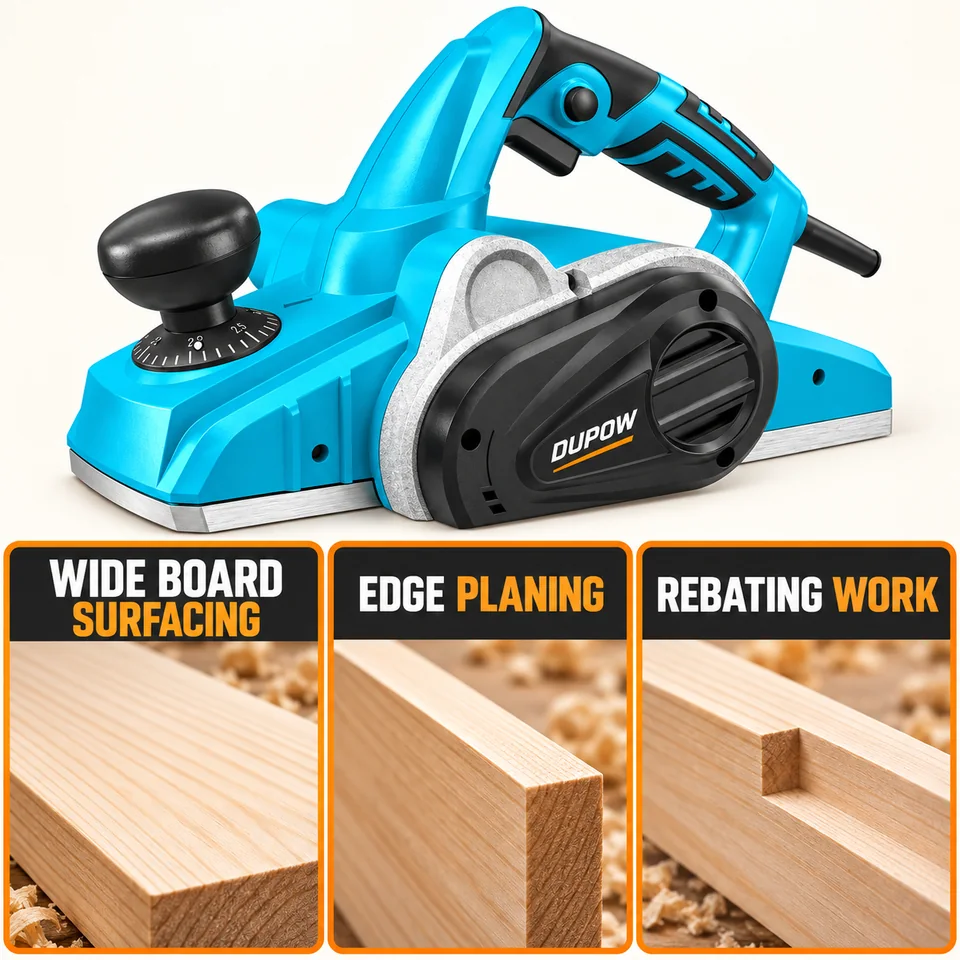

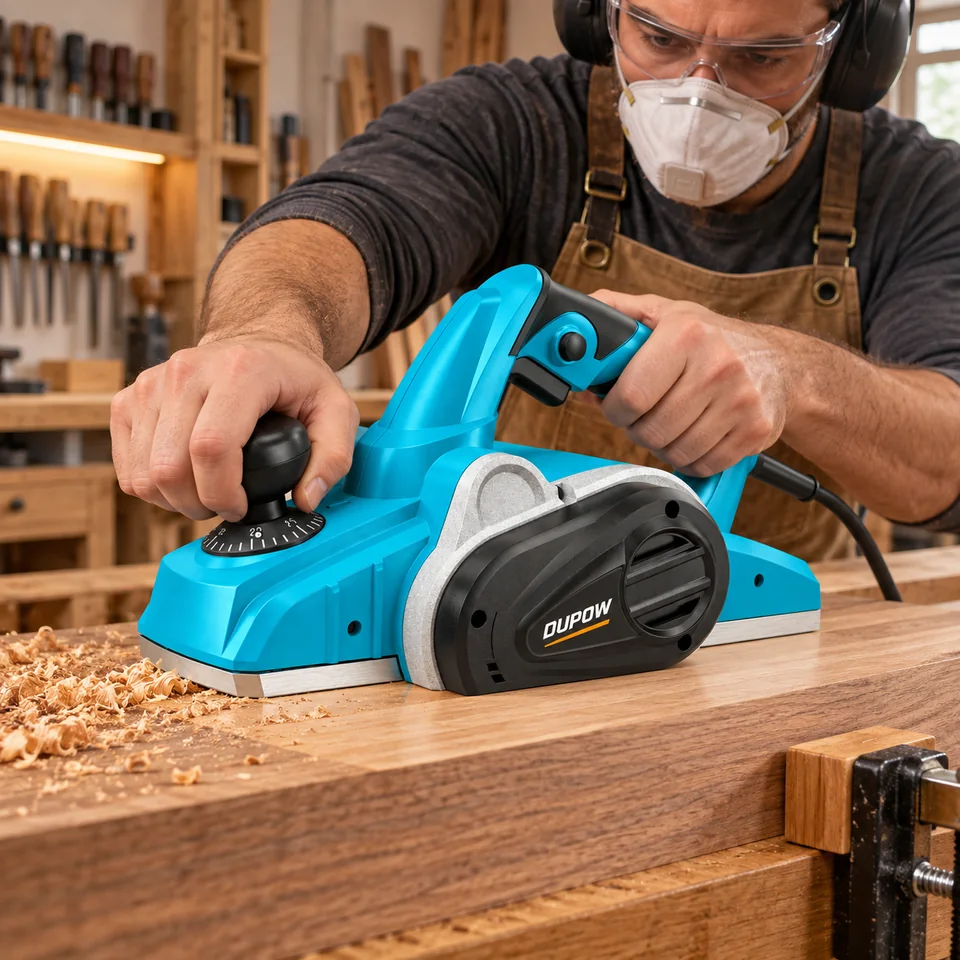

Typical applications
- Wider board and panel edge preparation
- Door, beam and solid-timber surface correction
- Rebating work within the reviewed 14 mm capacity
Confirm before quotation
- Select the 220–240 V or 120 V market configuration
- Confirm blade set, dust extraction, plug and included accessories
- Approve carton details, branding and documentation against the sample
Application examples are selection guidance, not a performance guarantee. Coating compatibility, runtime, duty conditions and destination-market requirements are validated against the exact sample and order configuration.
QUICK FAMILY COMPARISON
Compare nearby Planers & Jointers options
Review the closest product families, then add the relevant options to one inquiry.
| Family | Product | Key specifications | Power | Inquiry |
|---|---|---|---|---|
| DUP-PL-004 | 1200W Benchtop Planer | Voltage range as printed: 20–240 V Frequency: 50/60 Hz | Corded | |
| DUP-PL-005 | 1500W 330 mm Thickness Planer | Voltage: 120–240 V Frequency: 50/60 Hz | Corded | |
| DUP-PL-006 Current page | 1200W 110 mm Electric Planer | Voltage: 220–240 V / 120 V Frequency: 50/60 Hz | Corded Electric | Current family |
| DUP-PL-007 | 750W 82 mm Electric Planer | Voltage: 220–240 V Frequency: 50/60 Hz | Corded Electric |
COMMERCIAL TERMS
Planning reference for this family
- Typical MOQ
- 300 units Woodworking & Benchtop Tools
- Sample lead time
- Around 7 days After specifications are confirmed
- Production lead time
- Around 30 days After sample and packaging approval
- OEM
- Welcome Scope confirmed for each program
These are planning references for typical standard configurations, not a binding quotation. MOQ may vary with the model, OEM scope, customized colors, packaging, voltage, plug type and certification requirements. The final MOQ and schedule are confirmed for each quotation and order.
COMPLIANCE DOCUMENTS
Redacted previews available for this family
An internal source-model cross-check found an exact textual match between this DUPOW family and the supplier-held document represented below. The public image is a further-sanitized summary, not the original document.
CE Safety · REDACTED PREVIEW
Public document preview
StandardsEN 62841-1:2015 · EN 62841-2-14:2015
Date shown2024-09-03
Open preview ↗
EMC · REDACTED PREVIEW
Public document preview
StandardsEN 61000-3-3:2013+A1:2019 · EN IEC 55014-1:2021 · EN IEC 55014-2:2021 · EN IEC 61000-3-2:2019+A1:2021 · IEC 55014-1:2021 · IEC 55014-2:2021 · IEC 61000-3-2:2019
Date shown2024-08-28
Open preview ↗
Important: A preview link is evidence of a reviewed source-model match, not a product certification badge or a promise that every configuration is currently covered. Exact applicability, validity and destination-market requirements are reconfirmed for the ordered configuration before quotation or document release.
CONFIGURATION MATRIX
Choose the right configuration
Use the DUPOW configuration reference in your inquiry. Final market version, accessories and packaging remain subject to confirmation.
| Product view | Inquiry reference | Configuration | Reviewed specifications |
|---|---|---|---|

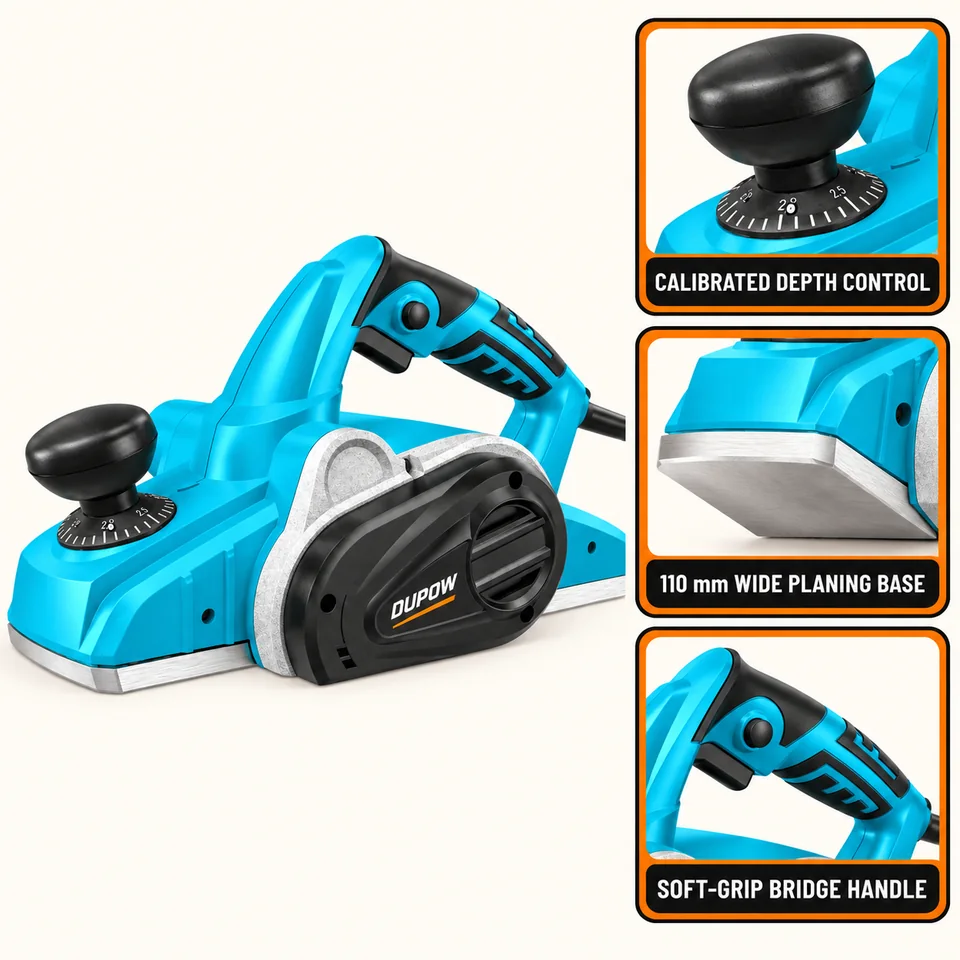

 | DUP-PL-006Lead configuration | Current reviewed configuration | Voltage: 220–240 V / 120 VFrequency: 50/60 HzRated input: 1,200 W / 10 ANo-load speed: 16,000 rpmPlaning width: 110 mm / 4-3/8 inPlaning depth: 3 mmRebating depth: 0–14 mm110 mm / 4-3/8 in planing width for wider workpiecesUp to 3 mm planing depth and 14 mm rebating depthDust-extraction connection and soft-grip handlePackage: To be confirmed. Outer carton: 42 × 37.5 × 22 cm. Quantity: 2 pcs/ctn. Net/gross weight: To be confirmed / 12 kg. Container loading (20 ft / 40 ft / 40 ft HQ): To be confirmed / To be confirmed / To be confirmed.Destination-market compliance configuration: To be confirmed before quotation. |
BUYER RESOURCES
Plan the next sourcing step
Continue from the model page to range planning, OEM packaging and a clearer quotation brief.
Private-label power tool sourcingUnderstand DUPOW’s factory-selection and private-label coordination role.→Woodworking tool sourcingCompare a focused woodworking range around application and configuration.→Private-label packaging checklistControl cartons, manuals, labels, accessories and approval records.→Build a comparable RFQSend the market, quantity, voltage, accessories, OEM and document needs.→
BUYER QUESTIONS
Before you request a quotation
Clear answers for model-level sourcing and document review.
What is DUP-PL-006 best suited to?
A high-output 110 mm electric planer for wider stock preparation, with a 3 mm planing depth and 14 mm rebating capacity. Importers and private-label programs that need a wider 110 mm handheld planer for heavier stock-preparation ranges.
Can DUP-PL-006 be supplied for OEM or private-label orders?
Yes, subject to order review. Branding, color, packaging, labels and manual scope are confirmed after the exact configuration is selected. The current MOQ planning reference is 300 units; the quotation confirms the final MOQ.
What compliance documents are available for DUP-PL-006?
Safety and EMC documentation is available upon request, subject to exact configuration and destination-market review.
What information should I send for a model-specific quotation?
Send the destination market, estimated quantity, voltage or battery platform, plug type, required accessories, OEM or packaging scope, and any document requirements. DUPOW normally replies by email within one business day.
MODEL-SPECIFIC INQUIRY
Ask us to review DUP-PL-006 for your market
Include your destination market, quantity and OEM scope. This family will be added to the inquiry automatically.
