Key performance & functions
- Rated current: 16 A

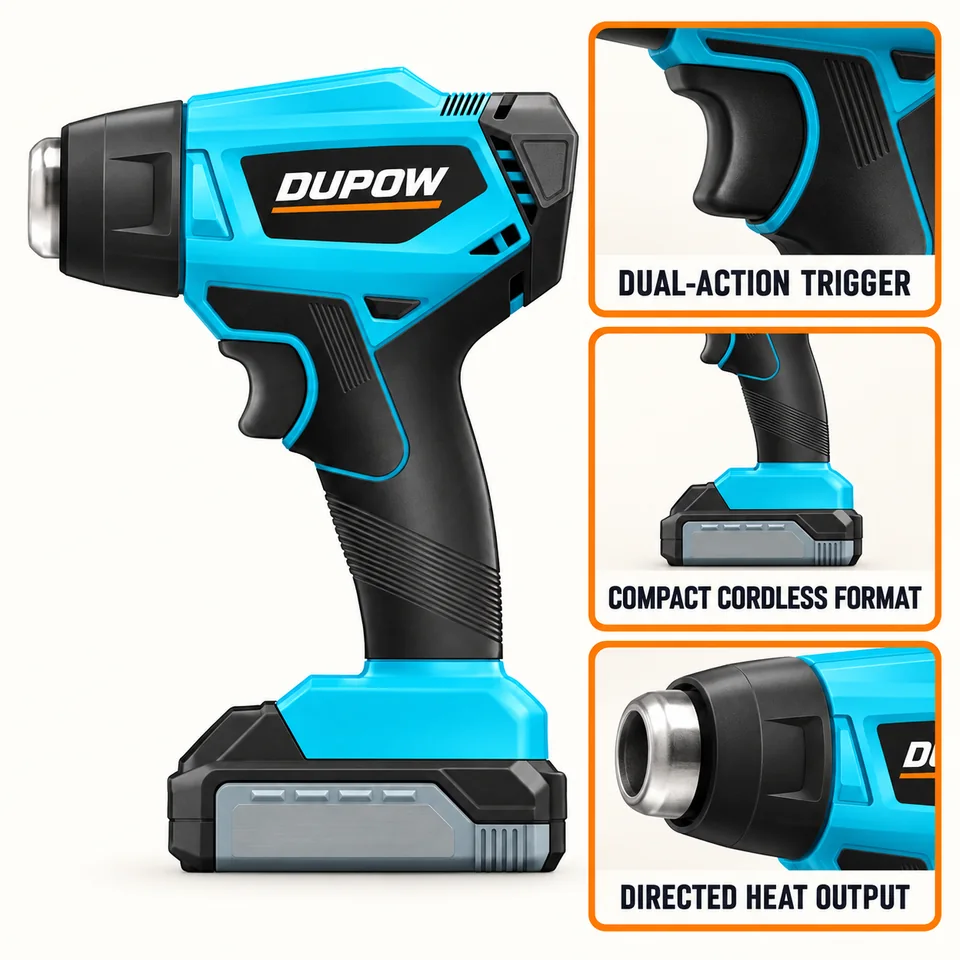

- Dual-action trigger for controlled cordless operation
- Air flow: 200 L/min
- 550 °C output with 200 L/min airflow
DUP-HG-002
Heat Guns

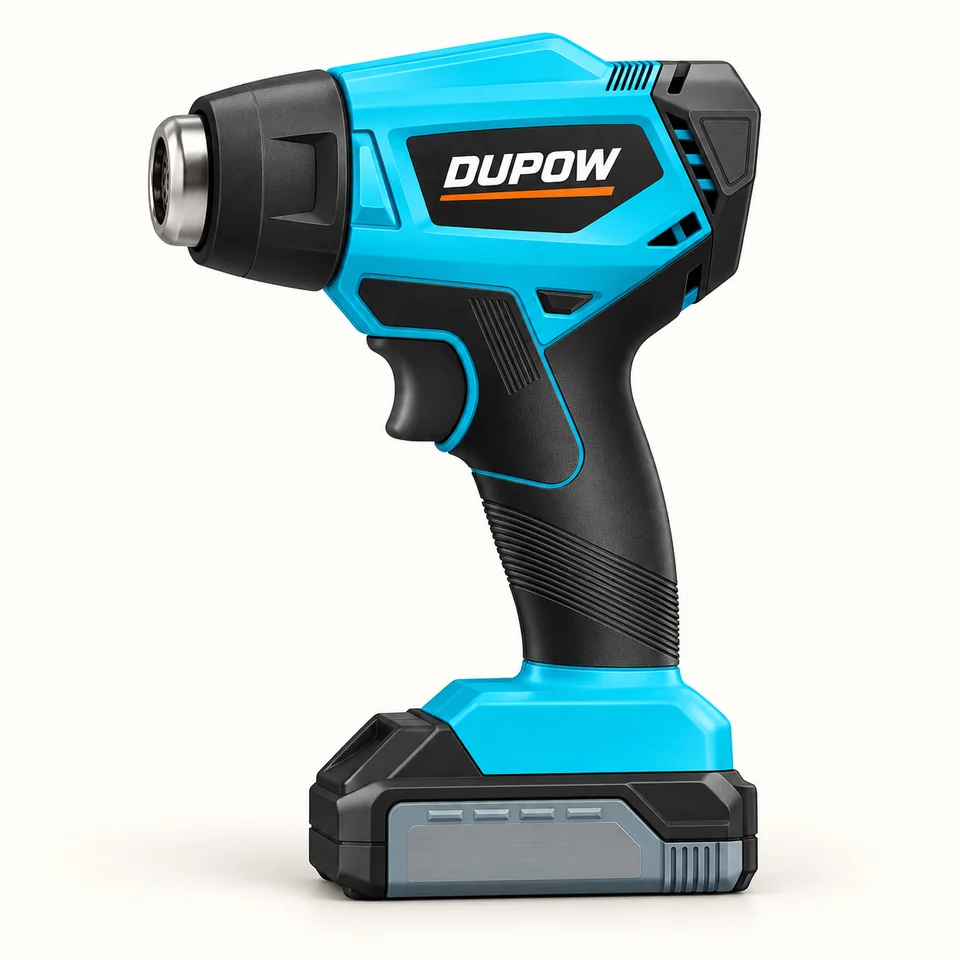

20V Compact Cordless Heat Gun — DUP-HG-002
Model DUP-HG-002
A compact cordless heat gun with a 550 °C outlet temperature and fast cellular heating for portable shrink, forming and repair applications.
- 550 °C · Temperature
Temperature settings for matching the hot-air process.
- 200 L/min · Air flow
Flow specification for comparing the equipment and application requirements.
- 15.5 min with 4.0 Ah battery · Runtime
A model-specific detail for planning the working setup.
Email this familyWhatsApp Ivan
Direct B2B contact: model and page link are prefilled; add your market and quantity.

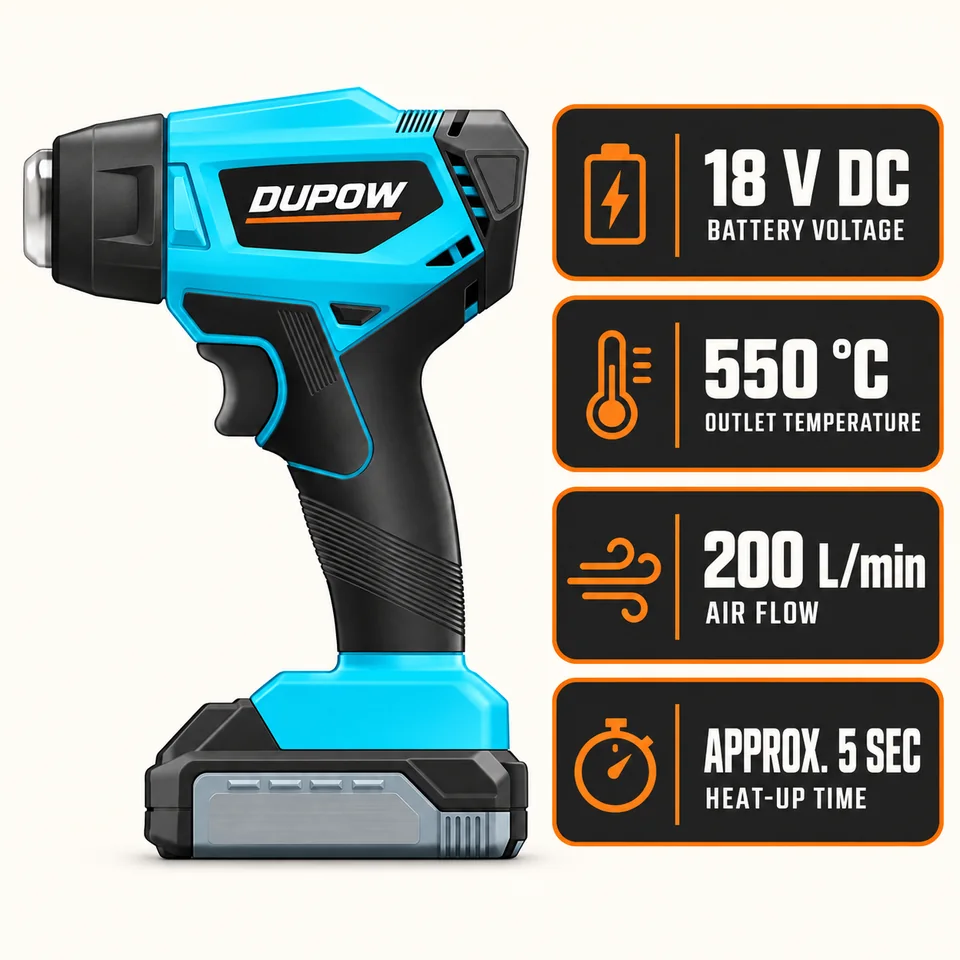

550 °CTemperature
200 L/minAir flow
15.5 min with 4.0 Ah batteryRuntime
FEATURES IN FOCUS
Controlled hot-air work
Temperature: 550 °C · Air flow: 200 L/min · Runtime: 15.5 min with 4.0 Ah battery
THE MODEL, CLEARLY SPECIFIED
Product specifications
View the complete specifications for DUP-HG-002
| Primary category | Painting & Surface Finishing |
|---|---|
| Product type | Heat Guns |
| Public family | Cordless Heat Guns |
| Configurations | 1 |
| Power source | Cordless |
| Battery platform | 20V Battery Platform |
CONFIGURATION MATRIX
Choose the right configuration
Tell us the model, order quantity and destination market. We will put together the accessory, branding and packaging options in your quotation.
| Product view | Inquiry reference | Configuration | Product specifications |
|---|---|---|---|
 | DUP-HG-002Lead configuration | Product configuration | Battery voltage: 20 V DCRated current: 16 ATemperature: 550 °CAir flow: 200 L/minRuntime: 15.5 min with 4.0 Ah batteryStandard accessory: 1 concentration nozzleReaches operating temperature in approximately 5 seconds550 °C output with 200 L/min airflowDual-action trigger for controlled cordless operationStandard accessories: Concentration nozzlePackage: 17 × 8 × 21.5 cm. Outer carton: 35.5 × 34 × 23.5 cm. Quantity: 8 pcs/ctn. Net/gross weight: 6.5 kg / 6.9 kg. Container loading (20 ft / 40 ft / 40 ft HQ): 7,800 pcs / 16,160 pcs / 18,880 pcs. |
WHOLESALE & PRIVATE LABEL
Build your order around DUP-HG-002.
Send the model, quantity and destination market, together with the required accessories, branding and packing. For cordless tools, include the tool-only or kit format, battery model and charger requirements.
- Typical MOQ
- 100 units
- Sample time
- Around 7 days
- Production
- Around 30 days
- OEM / Private Label
- Welcome
COMMERCIAL TERMS
Order options and lead times
Find MOQ and lead time above. We can prepare samples, private-label packaging and shipping details with your quotation.
MOQ and lead time depend on the model, kit and branding scope. Your quotation sets out the order quantity, price and production schedule.
B2B BUYER'S GUIDE
Is DUP-HG-002 right for your product program?
18 V cordless assortments seeking a compact fixed-output heat gun for straightforward portable heating tasks.

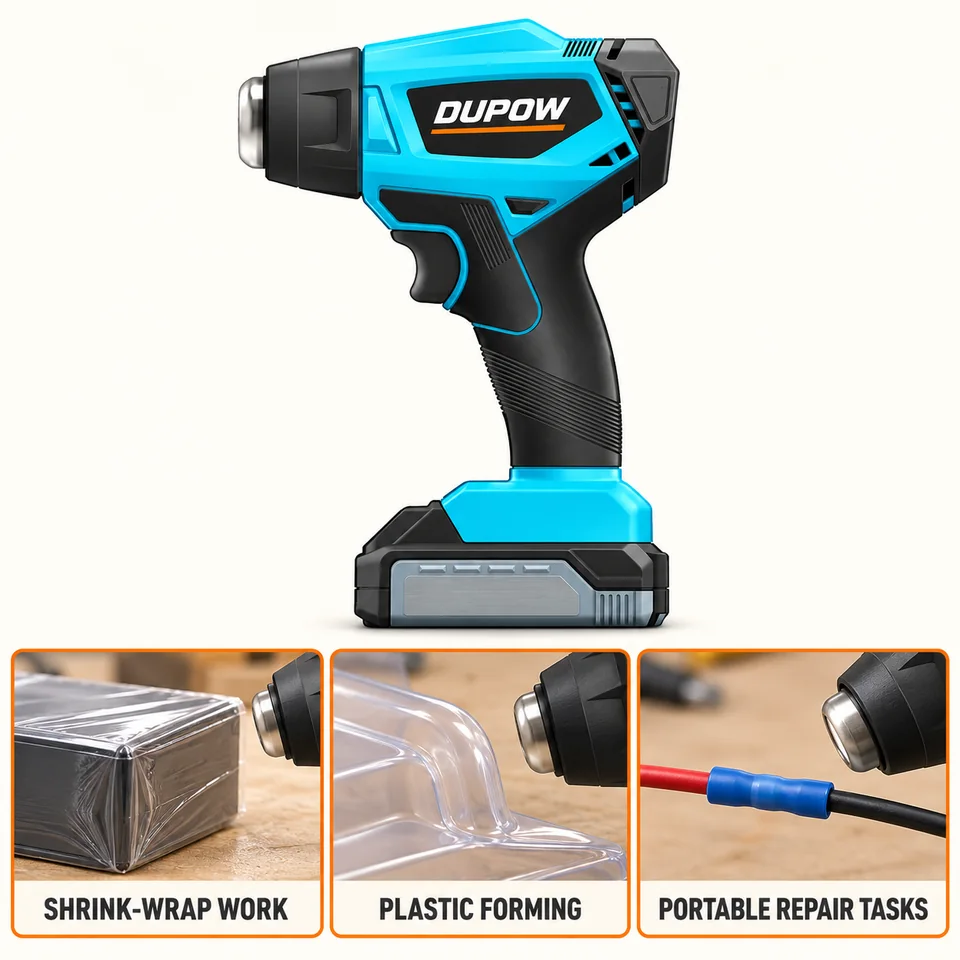

Typical applications

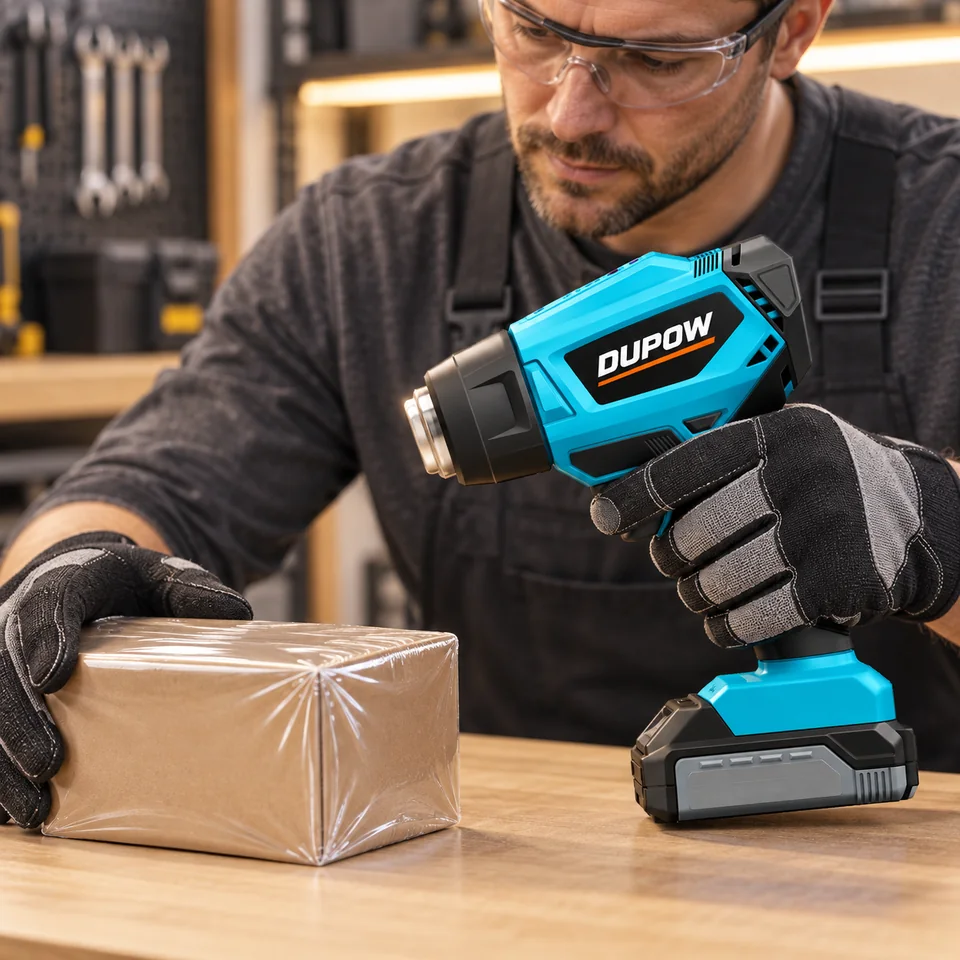

- Heat-shrink and cable work
- Localized adhesive softening
- Portable forming and repair tasks compatible with 550 °C output
Build your quotation
- Confirm battery compatibility, pack capacity and charger inclusion
- Evaluate runtime and 200 L/min airflow for the intended task
- Approve nozzle set, warnings, packaging and destination documents
We help you select the tool and accessories for your application, with samples, private-label packaging and export support.
QUICK FAMILY COMPARISON
Compare nearby Heat Guns options
Compare related models and add your shortlist to one inquiry.
| Model | Product & design | Electrical rating | Functions & working capacity | Power source | Inquiry |
|---|---|---|---|---|---|
| DUP-HG-001 |  20V Max LCD Cordless Heat Gun | Rated current: 16 A / 18 A | Air flow: Stage I: 100 L/min; Stage II: 200 L/min Rated current: 16 A / 18 A Temperature: Stage I: 30–400 °C; Stage II: 30–550 °C | Cordless · 20V Battery Platform | |
| DUP-HG-002 Current page | 20V Compact Cordless Heat Gun | Rated current: 16 A | Dual-action trigger for controlled cordless operation Air flow: 200 L/min 550 °C output with 200 L/min airflow | Cordless · 20V Battery Platform | Current family |
| DUP-HG-003 |  1800W Two-Stage Heat Gun | Rated input: 1,800 W | Two-stage 400 °C / 600 °C temperature control Temperature / air flow: Stage I: 400 °C / 300 L/min; Stage II: 600 °C / 500 L/min 300 L/min and 500 L/min airflow settings | Corded Electric | |
| DUP-HG-004 |  2000W LCD Variable-Temperature Heat Gun | Rated input: 2,000 W | 50–650 °C working range with constant-heat control Overheat protection, cooling mode and last-setting memory Temperature / air flow: Stage I: 50 °C / 250–500 L/min; Stage II: 50–650 °C / 250–500 L/min | Corded Electric |
Compare power, working capacity and product format. We support private-label tool ranges with product selection, branding, packaging and export delivery.
BUYER RESOURCES
Plan the next sourcing step
Move from heat-gun selection to a defined market version, OEM scope and evidence review.
Power tool sourcing programDefine the range, configuration and supplier-review checkpoints.→OEM and private labelReview branding, color, packaging, manuals and inspection coordination.→Verify exact-model documentsCheck the legal manufacturer, model string, standards and configuration scope.→Build a comparable RFQSend the market, quantity, voltage, accessories, OEM and document needs.→Battery-platform planning guidePlan tools, packs, chargers, kits, service stock and approval points.→
BUYER QUESTIONS
Build your order
Clear answers for model-level sourcing and document review.
What is DUP-HG-002 best suited to?
A compact cordless heat gun with a 550 °C outlet temperature and fast cellular heating for portable shrink, forming and repair applications. 18 V cordless assortments seeking a compact fixed-output heat gun for straightforward portable heating tasks.
Can DUP-HG-002 be supplied for OEM or private-label orders?
Yes. We support your branding, housing color, labels, manuals and packaging. Typical MOQ is 100 units; send us the model and quantity for your quotation.
What compliance documents are available for DUP-HG-002?
We prepare the required product documents around your selected model and destination market.
What information should I send for a model-specific quotation?
Send the destination market, estimated quantity, voltage or battery platform, plug type, required accessories, OEM or packaging scope, and any document requirements. DUPOW normally replies by email within one business day.
MODEL-SPECIFIC INQUIRY
Ask us to review DUP-HG-002 for your market
Include your destination market, quantity and OEM scope. This family will be added to the inquiry automatically.
Compare 20v cordless heat gun models
Compare heat guns by power format, working capacity and the specifications of each model.
