Key performance & functions
- Rated input: 1,800 W
- Two-stage 400 °C / 600 °C temperature control
- Temperature / air flow: Stage I: 400 °C / 300 L/min; Stage II: 600 °C / 500 L/min
- 300 L/min and 500 L/min airflow settings
DUP-HG-003
Heat Guns

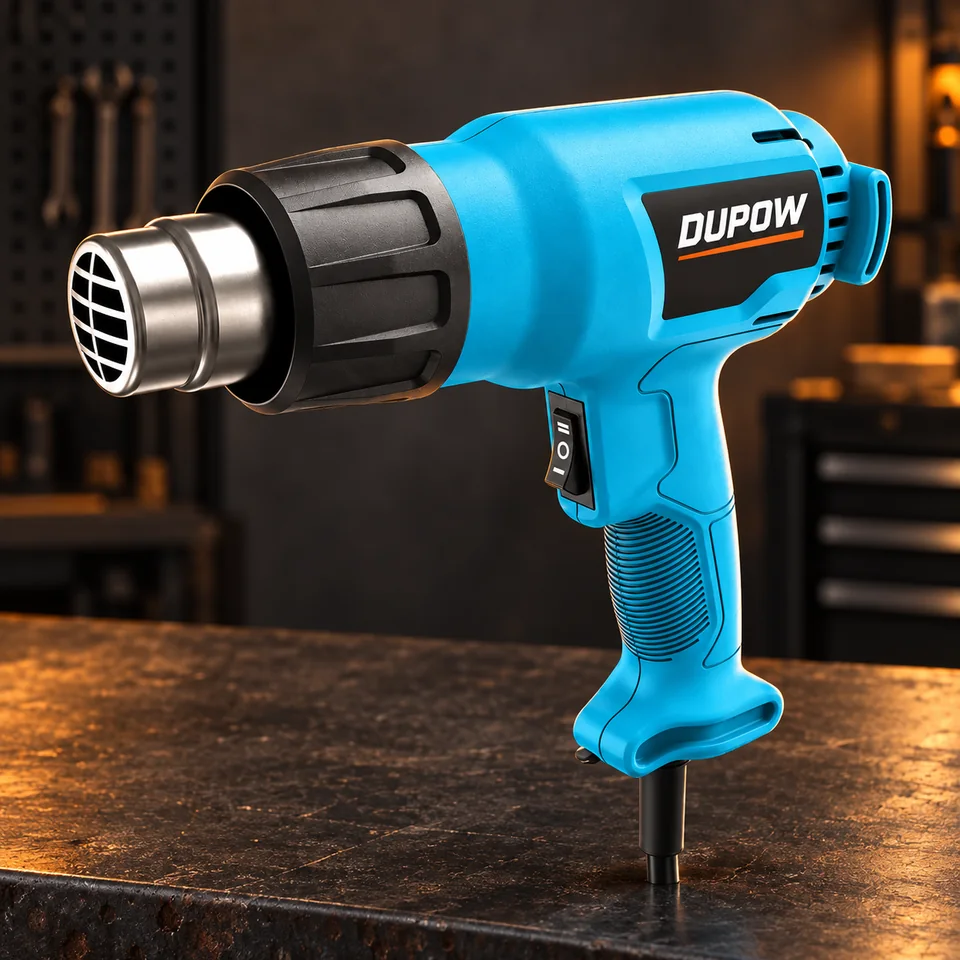

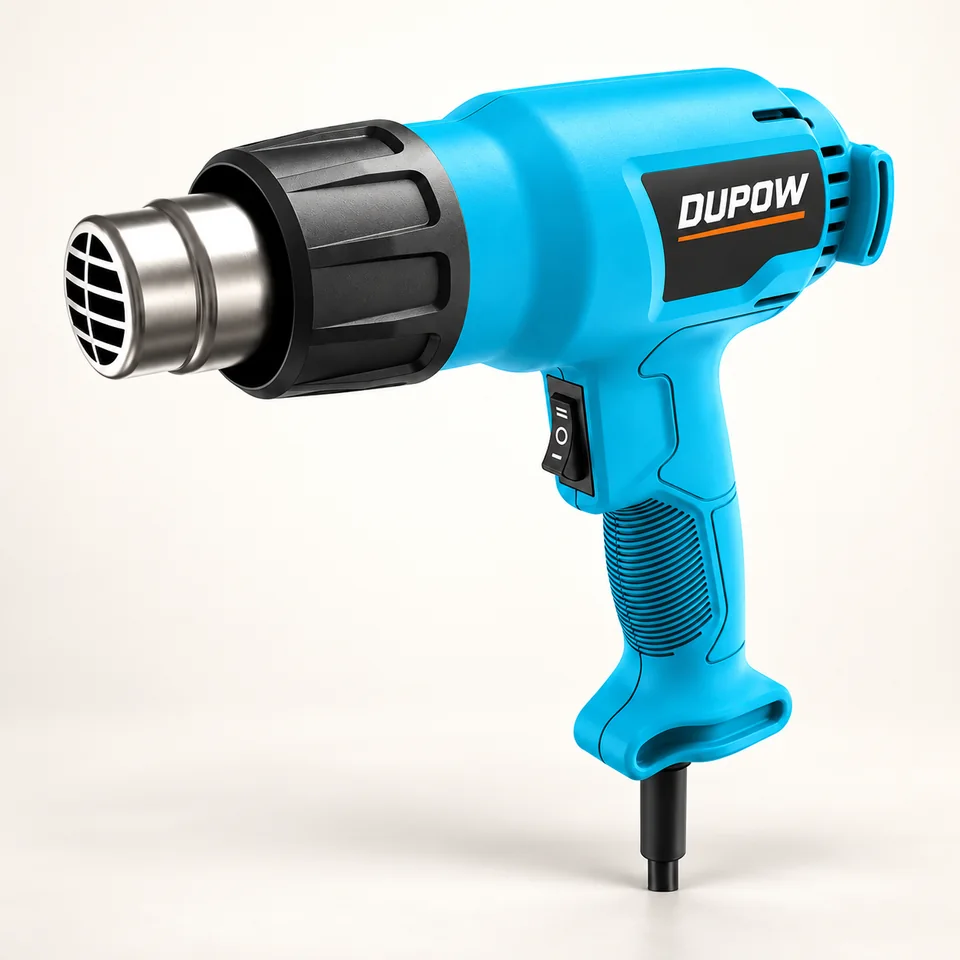

1800W Two-Stage Heat Gun — DUP-HG-003
Model DUP-HG-003
A compact two-stage corded heat gun providing 400 °C and 600 °C operating points for stripping, forming, shrinking and workshop repair tasks.
- Stage I: 400 °C / 300 L/min; Stage II: 600 °C / 500 L/min · Temperature / air flow
Flow specification for comparing the equipment and application requirements.
- 1,800 W · Rated input
The stated operating rating for this model.
- 1.8 m VDE · Power cord
The stated power rating for this configuration.
Email this familyWhatsApp Ivan
Direct B2B contact: model and page link are prefilled; add your market and quantity.
Stage I: 400 °C / 300 L/min; Stage II: 600 °C / 500 L/minTemperature / air flow
1,800 WRated input
1.8 m VDEPower cord

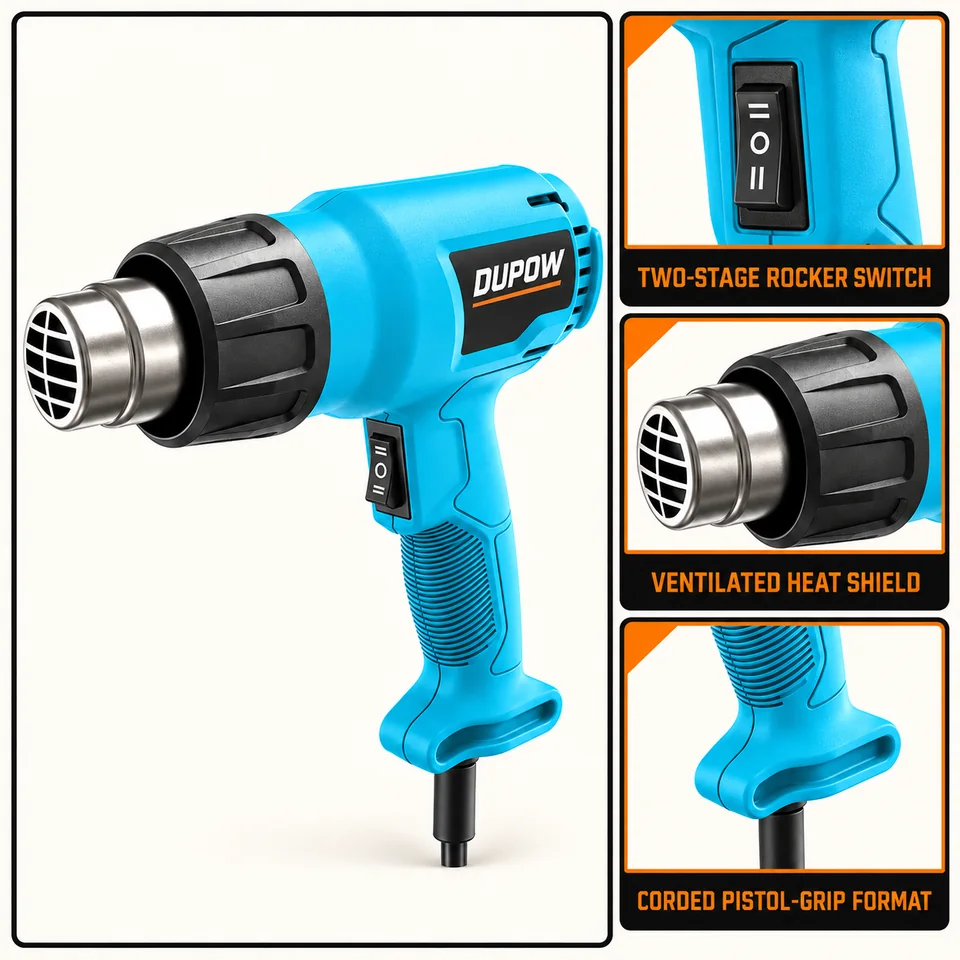

FEATURES IN FOCUS
Controlled hot-air work

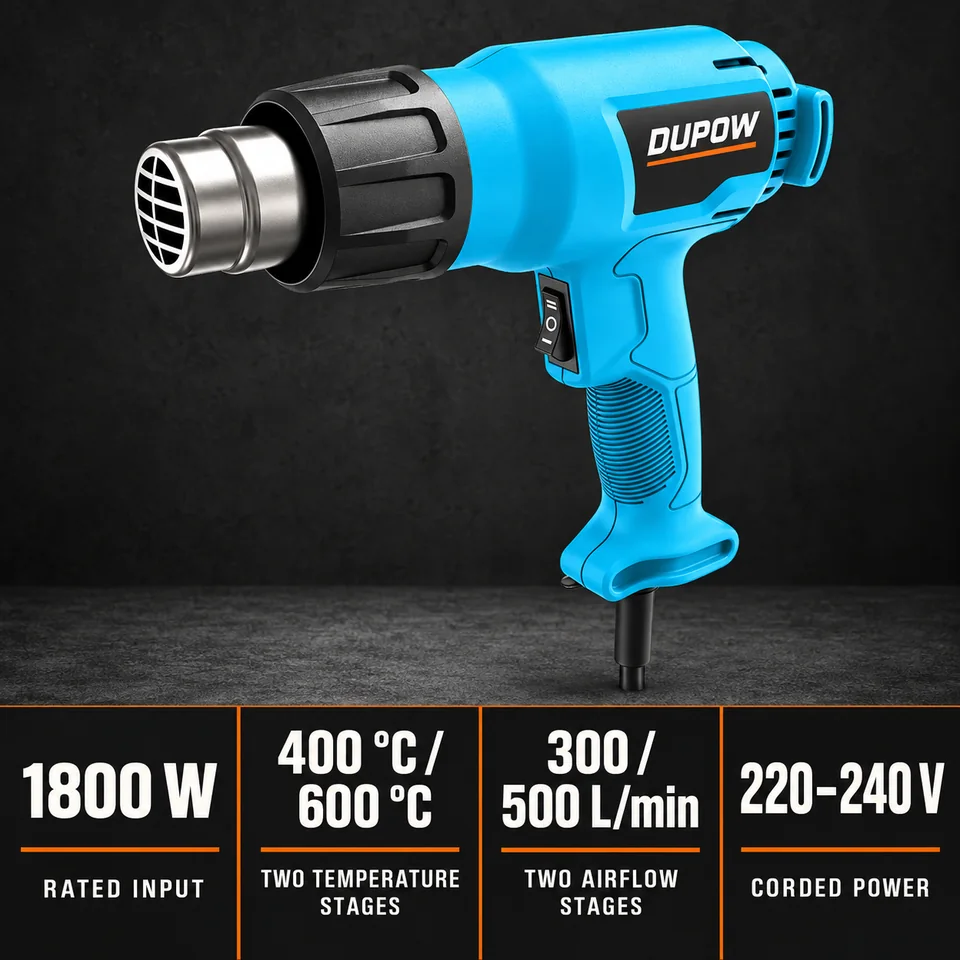

Temperature / air flow: Stage I: 400 °C / 300 L/min; Stage II: 600 °C / 500 L/min · Rated input: 1,800 W · Power cord: 1.8 m VDE
THE MODEL, CLEARLY SPECIFIED
Product specifications
View the complete specifications for DUP-HG-003
| Primary category | Painting & Surface Finishing |
|---|---|
| Product type | Heat Guns |
| Public family | Corded Heat Guns |
| Configurations | 1 |
| Power source | Corded Electric |
CONFIGURATION MATRIX
Choose the right configuration
Tell us the model, order quantity and destination market. We will put together the accessory, branding and packaging options in your quotation.
| Product view | Inquiry reference | Configuration | Product specifications |
|---|---|---|---|
 | DUP-HG-003Lead configuration | Product configuration | Voltage: 220–240 VFrequency: 50 HzRated input: 1,800 WTemperature / air flow: Stage I: 400 °C / 300 L/min; Stage II: 600 °C / 500 L/minPower cord: 1.8 m VDETwo-stage 400 °C / 600 °C temperature control300 L/min and 500 L/min airflow settingsCompact pistol-grip format with 1.8 m VDE power cordPackage: 23.5 × 7.4 × 23.7 cm. Outer carton: 48.5 × 38.5 × 25.5 cm. Quantity: 10 pcs/ctn. Net/gross weight: 8.0 kg / 9.0 kg. Container loading (20 ft / 40 ft / 40 ft HQ): 5,670 pcs / 11,760 pcs / 13,900 pcs. |
WHOLESALE & PRIVATE LABEL
Build your order around DUP-HG-003.
Send the model, quantity and destination market, together with the required accessories, branding and packing. For cordless tools, include the tool-only or kit format, battery model and charger requirements.
- Typical MOQ
- 100 units
- Sample time
- Around 7 days
- Production
- Around 30 days
- OEM / Private Label
- Welcome
COMMERCIAL TERMS
Order options and lead times
Find MOQ and lead time above. We can prepare samples, private-label packaging and shipping details with your quotation.
MOQ and lead time depend on the model, kit and branding scope. Your quotation sets out the order quantity, price and production schedule.
B2B BUYER'S GUIDE
Is DUP-HG-003 right for your product program?
Mainstream corded ranges needing a simple two-stage 1,800 W heat gun for general workshop applications.

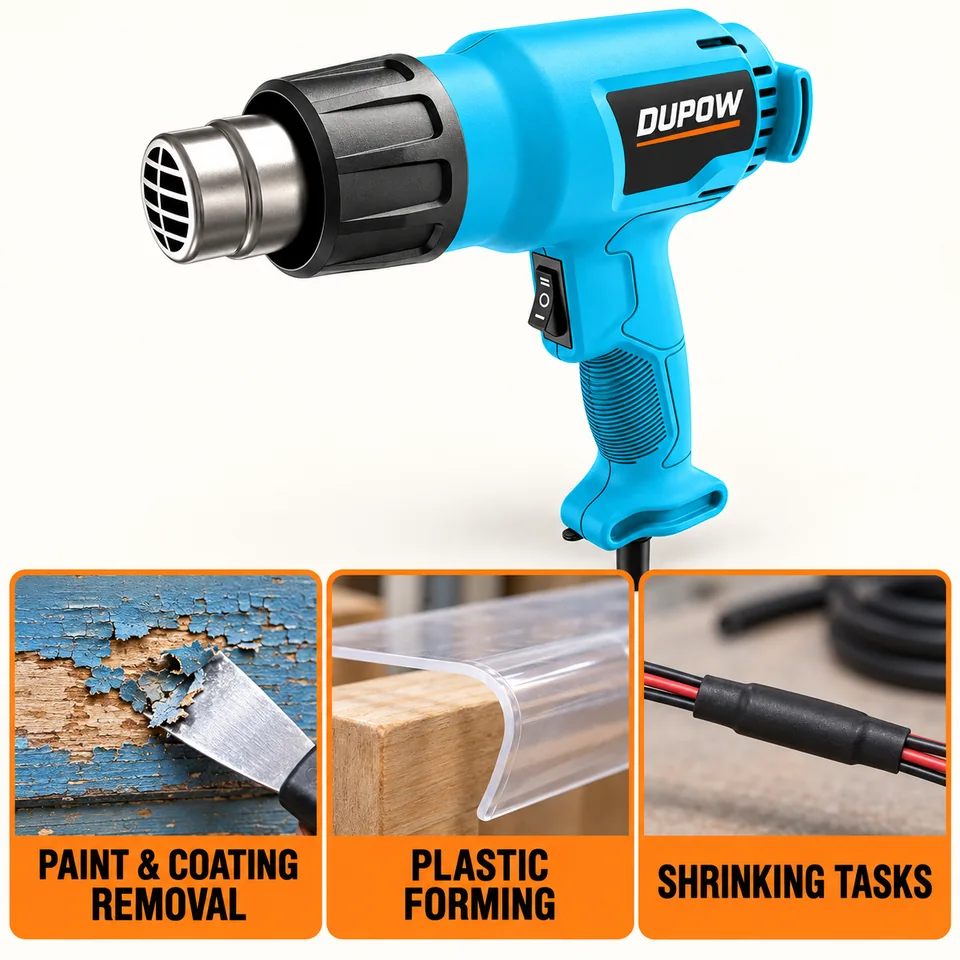

Typical applications
- Paint and adhesive softening
- Heat-shrink and forming work
- Workshop drying and repair tasks suited to the two reviewed stages
Build your quotation
- Confirm 220–240 V, 50 Hz and destination plug
- Check whether the 400 °C or 600 °C stage suits the application
- Approve nozzle kit, warnings, packaging and documentation
We help you select the tool and accessories for your application, with samples, private-label packaging and export support.
QUICK FAMILY COMPARISON
Compare nearby Heat Guns options
Compare related models and add your shortlist to one inquiry.
| Model | Product & design | Electrical rating | Functions & working capacity | Power source | Inquiry |
|---|---|---|---|---|---|
| DUP-HG-001 |  20V Max LCD Cordless Heat Gun | Rated current: 16 A / 18 A | Air flow: Stage I: 100 L/min; Stage II: 200 L/min Rated current: 16 A / 18 A Temperature: Stage I: 30–400 °C; Stage II: 30–550 °C | Cordless · 18 V / 20 V Max Battery Platform | |
| DUP-HG-002 |  18V Compact Cordless Heat Gun | Rated current: 16 A | Dual-action trigger for controlled cordless operation Air flow: 200 L/min 550 °C output with 200 L/min airflow | Cordless · 18 V / 20 V Max Battery Platform | |
| DUP-HG-003 Current page | 1800W Two-Stage Heat Gun | Rated input: 1,800 W | Two-stage 400 °C / 600 °C temperature control Temperature / air flow: Stage I: 400 °C / 300 L/min; Stage II: 600 °C / 500 L/min 300 L/min and 500 L/min airflow settings | Corded Electric | Current family |
| DUP-HG-004 |  2000W LCD Variable-Temperature Heat Gun | Rated input: 2,000 W | 50–650 °C working range with constant-heat control Overheat protection, cooling mode and last-setting memory Temperature / air flow: Stage I: 50 °C / 250–500 L/min; Stage II: 50–650 °C / 250–500 L/min | Corded Electric |
Compare power, working capacity and product format. We support private-label tool ranges with product selection, branding, packaging and export delivery.
COMPLIANCE DOCUMENTS
Redacted previews available for this family
The document summary below is associated with this model. Commercial and supplier identifiers have been removed from the public summary.
GS · CE Safety · REDACTED PREVIEW
Public document preview
StandardsEN 60335-1:2012+A11:2014 · EN 60335-2-45:2002+A1:2008 · EN 62233:2008
Date shown2025-10-22
Open preview ↗
GS · PAH · REDACTED PREVIEW
Public document preview
StandardsAfPS GS 2019:01 PAK · EN 60335-1:2012+A11:2014 · EN 60335-2-45:2002+A1:2008 · EN 62233:2008
Date shown2025-10-28
Open preview ↗
Important: Document scope follows the model and configuration described in the summary. Include your destination market and kit requirements when requesting the documentation pack.
BUYER RESOURCES
Plan the next sourcing step
Move from heat-gun selection to a defined market version, OEM scope and evidence review.
Power tool sourcing programDefine the range, configuration and supplier-review checkpoints.→OEM and private labelReview branding, color, packaging, manuals and inspection coordination.→Verify exact-model documentsCheck the legal manufacturer, model string, standards and configuration scope.→Build a comparable RFQSend the market, quantity, voltage, accessories, OEM and document needs.→
BUYER QUESTIONS
Build your order
Clear answers for model-level sourcing and document review.
What is DUP-HG-003 best suited to?
A compact two-stage corded heat gun providing 400 °C and 600 °C operating points for stripping, forming, shrinking and workshop repair tasks. Mainstream corded ranges needing a simple two-stage 1,800 W heat gun for general workshop applications.
Can DUP-HG-003 be supplied for OEM or private-label orders?
Yes. We support your branding, housing color, labels, manuals and packaging. Typical MOQ is 100 units; send us the model and quantity for your quotation.
What compliance documents are available for DUP-HG-003?
Ask us for safety documentation for your product and market.
What information should I send for a model-specific quotation?
Send the destination market, estimated quantity, voltage or battery platform, plug type, required accessories, OEM or packaging scope, and any document requirements. DUPOW normally replies by email within one business day.
MODEL-SPECIFIC INQUIRY
Ask us to review DUP-HG-003 for your market
Include your destination market, quantity and OEM scope. This family will be added to the inquiry automatically.
Compare 1800w heat gun models
Compare heat guns by power format, working capacity and the specifications of each model.
