DUP-HG-004
PRODUCT FAMILY

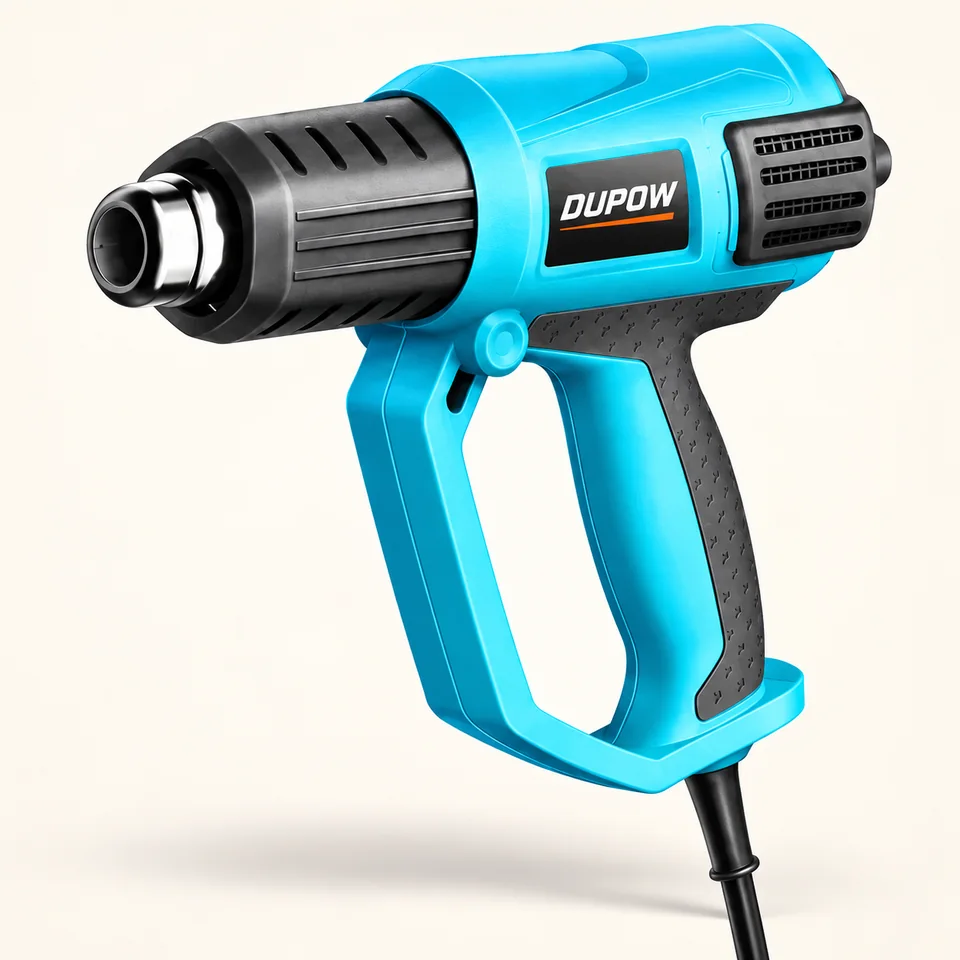

2000W LCD Variable-Temperature Heat Gun
1 listed configuration · Family DUP-HG-004
An electronically controlled heat gun with LCD feedback, variable temperature and airflow, ceramic heating and memory for repeatable professional applications.
Email this familyWhatsApp Ivan
Direct B2B contact: model and page link are prefilled; add your market and quantity.
| Primary category | Painting & Surface Finishing |
|---|---|
| Product type | Heat Guns |
| Public family | LCD Heat Guns |
| Configurations | 1 |
| Power source | Corded Electric |
| Battery platform | Not applicable |
| Motor type | Configuration to confirm |
Configuration and evidence check
Voltage, plug, exact configuration, compliance documents, packaging and branding are confirmed for the destination market before quotation or order placement. The commercial terms below are planning references; final terms are confirmed in the quotation.
PRODUCT REVIEW BOARD
One model. The numbers that shape the quotation.
A visual sourcing snapshot built only from the reviewed product family. Final voltage, plug, accessories, branding and documents are confirmed against the order configuration.
FROM MODEL TO MARKET VERSION
- 01 · SELECTConfirm destination market, quantity and intended application.
- 02 · CONFIGUREAlign voltage or battery platform, accessories, branding and packaging.
- 03 · VERIFYApprove the exact sample, written specification and applicable documents.
PRODUCT DETAILS & APPLICATIONS
Review the model from feature to application.
Use these views to shortlist the model. The exact sample, written specification, accessories, colors and order configuration remain the approval reference.
B2B BUYER'S GUIDE
Is DUP-HG-004 right for your product program?
Professional and private-label ranges needing LCD feedback, variable control and memory in a 2,000 W corded heat gun.
Reviewed configuration
- Voltage: 220–240 V
- Frequency: 50/60 Hz
- Rated input: 2,000 W
- Heating element: Ceramic
Typical applications
- Repeatable heat-shrink and forming work
- Controlled coating or adhesive softening
- Workshop tasks requiring adjustable temperature and airflow
Confirm before quotation
- Confirm 220–240 V, 50/60 Hz and destination plug
- Validate temperature, airflow and memory behavior with a sample
- Approve nozzle kit, controls, warnings, carton and documentation
Application examples are selection guidance, not a performance guarantee. Coating compatibility, runtime, duty conditions and destination-market requirements are validated against the exact sample and order configuration.
QUICK FAMILY COMPARISON
Compare nearby Heat Guns options
Review the closest product families, then add the relevant options to one inquiry.
| Family | Product | Key specifications | Power | Inquiry |
|---|---|---|---|---|
| DUP-HG-001 | 20V Max LCD Cordless Heat Gun | Battery voltage: 18 V nominal / 20 V Max Rated current: 16 A / 18 A | 18 V / 20 V Max Battery Platform | |
| DUP-HG-002 | 18V Compact Cordless Heat Gun | Battery voltage: 18 V DC Rated current: 16 A | 18 V / 20 V Max Battery Platform | |
| DUP-HG-003 | 1800W Two-Stage Heat Gun | Voltage: 220–240 V Frequency: 50 Hz | Corded Electric | |
| DUP-HG-004 Current page | 2000W LCD Variable-Temperature Heat Gun | Voltage: 220–240 V Frequency: 50/60 Hz | Corded Electric | Current family |
COMMERCIAL TERMS
Planning reference for this family
- Typical MOQ
- 100 units Painting & Surface Finishing
- Sample lead time
- Around 7 days After specifications are confirmed
- Production lead time
- Around 30 days After sample and packaging approval
- OEM
- Welcome Scope confirmed for each program
These are planning references for typical standard configurations, not a binding quotation. MOQ may vary with the model, OEM scope, customized colors, packaging, voltage, plug type and certification requirements. The final MOQ and schedule are confirmed for each quotation and order.
COMPLIANCE DOCUMENTS
Redacted previews available for this family
An internal source-model cross-check found an exact textual match between this DUPOW family and the supplier-held document represented below. The public image is a further-sanitized summary, not the original document.
GS · CE Safety · REDACTED PREVIEW
Public document preview
StandardsEN 60335-1:2012+A11:2014 · EN 60335-2-45:2002+A1:2008 · EN 62233:2008
Date shown2026-05-20
Open preview ↗
GS · PAH · REDACTED PREVIEW
Public document preview
StandardsAfPS GS 2019:01 PAK · EN 60335-1:2012+A11:2014 · EN 60335-2-45:2002+A1:2008 · EN 62233:2008
Date shown2026-05-19
Open preview ↗
Important: A preview link is evidence of a reviewed source-model match, not a product certification badge or a promise that every configuration is currently covered. Exact applicability, validity and destination-market requirements are reconfirmed for the ordered configuration before quotation or document release.
CONFIGURATION MATRIX
Choose the right configuration
Use the DUPOW configuration reference in your inquiry. Final market version, accessories and packaging remain subject to confirmation.
| Product view | Inquiry reference | Configuration | Reviewed specifications |
|---|---|---|---|

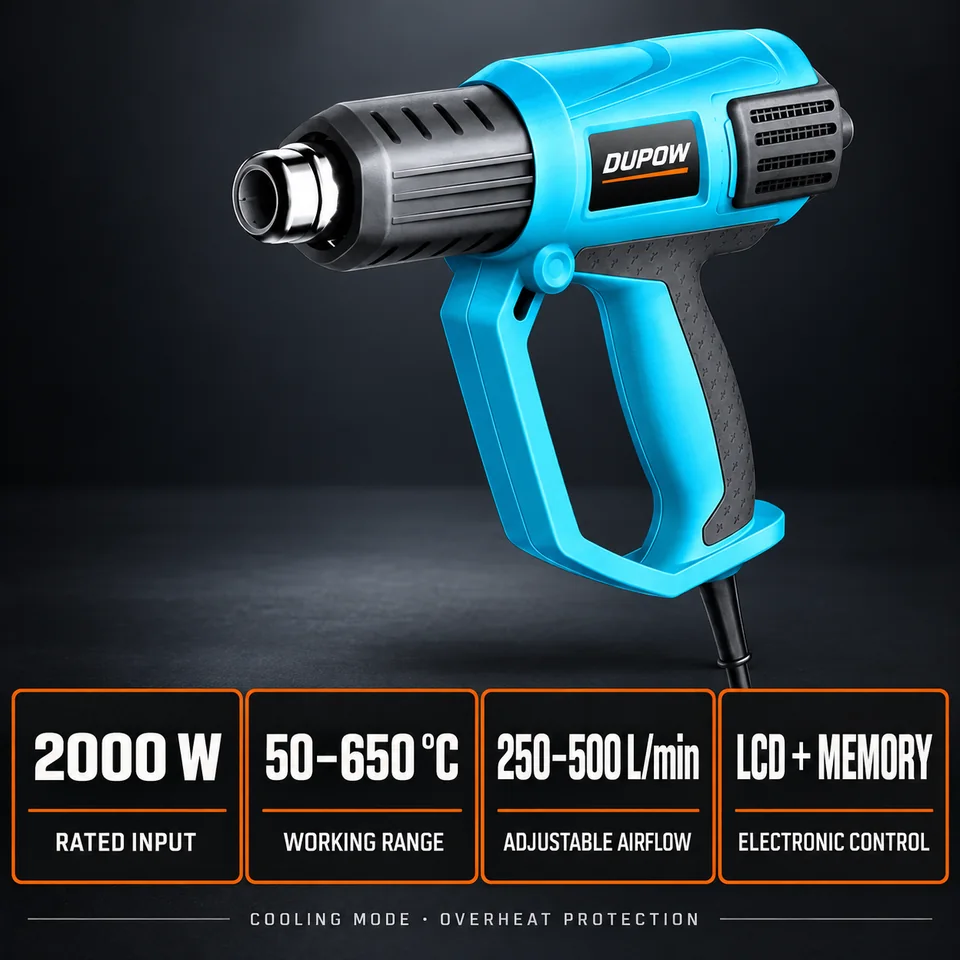

 | DUP-HG-004Lead configuration | Current reviewed configuration | Voltage: 220–240 VFrequency: 50/60 HzRated input: 2,000 WHeating element: CeramicTemperature / air flow: Stage I: 50 °C / 250–500 L/min; Stage II: 50–650 °C / 250–500 L/minDisplay: LCD with electronic temperature and airflow adjustmentPower cord: 2.0 m VDELCD temperature display with adjustable airflow50–650 °C working range with constant-heat controlOverheat protection, cooling mode and last-setting memoryPackage: 33 × 27.5 × 10.4 cm (BMC + sleeve). Outer carton: 55 × 36 × 29 cm. Quantity: 5 pcs/ctn. Net/gross weight: 10.5 kg / 11.5 kg. Container loading (20 ft / 40 ft / 40 ft HQ): 2,335 pcs / 4,690 pcs / 5,390 pcs.Destination-market compliance configuration: To be confirmed before quotation. |
BUYER RESOURCES
Plan the next sourcing step
Move from heat-gun selection to a defined market version, OEM scope and evidence review.
Power tool sourcing programDefine the range, configuration and supplier-review checkpoints.→OEM and private labelReview branding, color, packaging, manuals and inspection coordination.→Verify exact-model documentsCheck the legal manufacturer, model string, standards and configuration scope.→Build a comparable RFQSend the market, quantity, voltage, accessories, OEM and document needs.→
BUYER QUESTIONS
Before you request a quotation
Clear answers for model-level sourcing and document review.
What is DUP-HG-004 best suited to?
An electronically controlled heat gun with LCD feedback, variable temperature and airflow, ceramic heating and memory for repeatable professional applications. Professional and private-label ranges needing LCD feedback, variable control and memory in a 2,000 W corded heat gun.
Can DUP-HG-004 be supplied for OEM or private-label orders?
Yes, subject to order review. Branding, color, packaging, labels and manual scope are confirmed after the exact configuration is selected. The current MOQ planning reference is 100 units; the quotation confirms the final MOQ.
What compliance documents are available for DUP-HG-004?
Safety documentation is available upon request, subject to exact configuration and destination-market review.
What information should I send for a model-specific quotation?
Send the destination market, estimated quantity, voltage or battery platform, plug type, required accessories, OEM or packaging scope, and any document requirements. DUPOW normally replies by email within one business day.
MODEL-SPECIFIC INQUIRY
Ask us to review DUP-HG-004 for your market
Include your destination market, quantity and OEM scope. This family will be added to the inquiry automatically.
