Key performance & functions
- Rated input: 400 W
- Working pressure: 0.1–0.2 bar
- Water flow rate: 700 ml/min
- 700 ml/min water flow rate and 60 DIN-s viscosity capacity
DUP-SG-003
HVLP Paint Sprayers

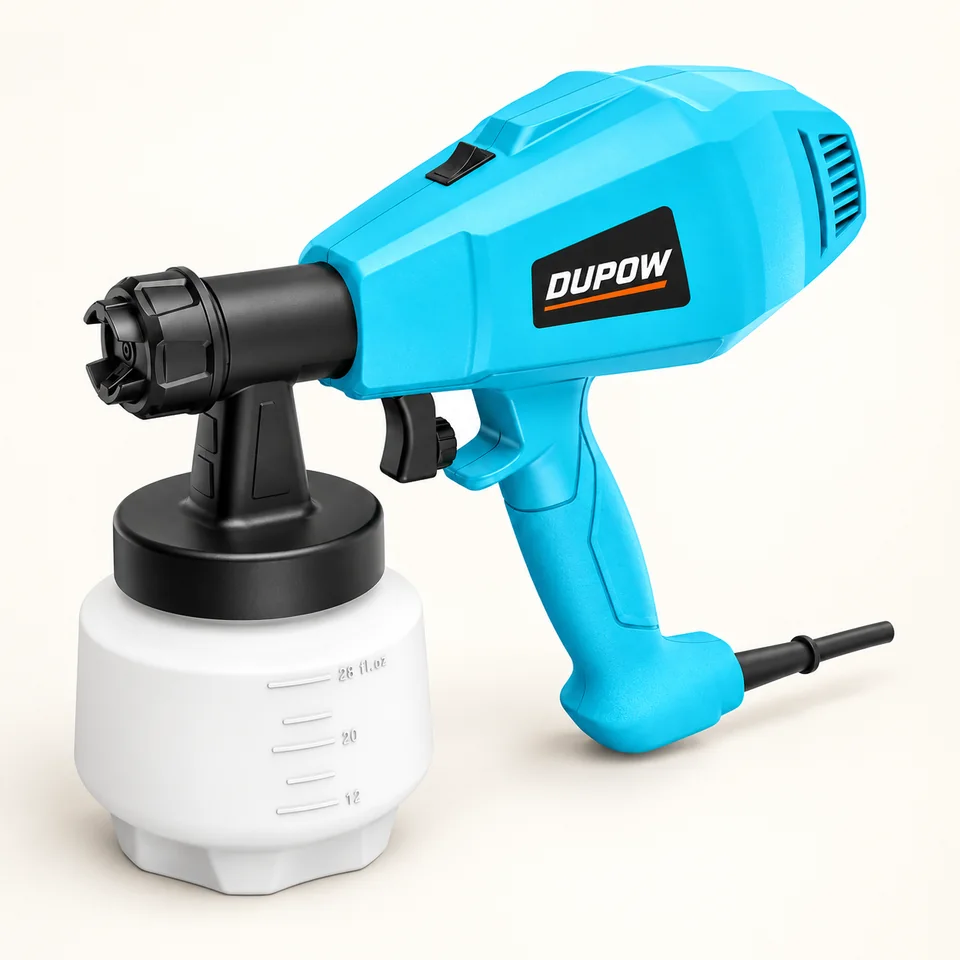

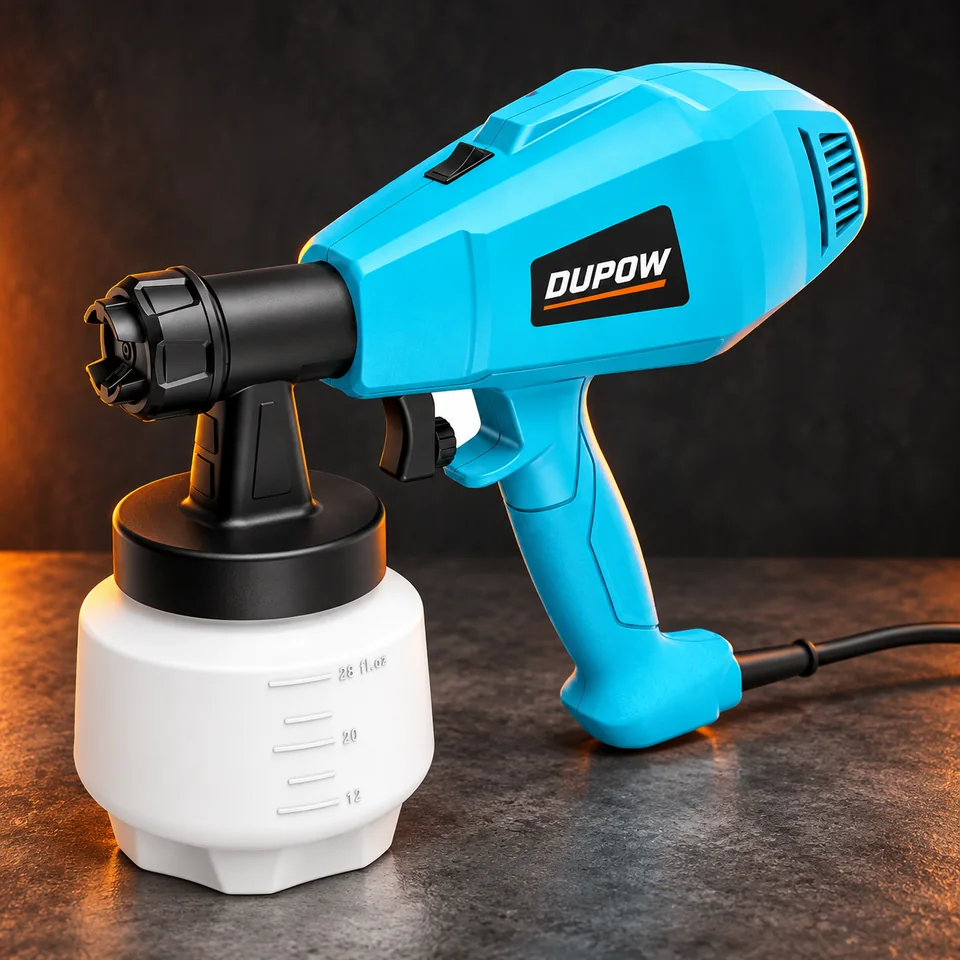

400W 800 ml Electric Paint Sprayer — DUP-SG-003
Model DUP-SG-003
A compact 400 W corded HVLP paint sprayer positioned below the larger-cup DUP-SG-004 and higher-output DUP-SG-005. The reviewed configuration combines an 800 ml cup, 700 ml/min water-flow reference, 60 DIN-s viscosity reference, a 2.5 mm nozzle and three spray patterns for importer ranges that need a straightforward entry model.
- 800 ml · Paint cup
Container capacity for planning filling and operation.
- 700 ml/min · Water flow rate
Flow specification for comparing the equipment and application requirements.
- 2.5 mm plastic · Standard nozzle
Match the spray tip or nozzle to the coating and spray pattern.
Email this familyWhatsApp Ivan
Direct B2B contact: model and page link are prefilled; add your market and quantity.
800 mlPaint cup
700 ml/minWater flow rate
2.5 mm plasticStandard nozzle
FEATURES IN FOCUS

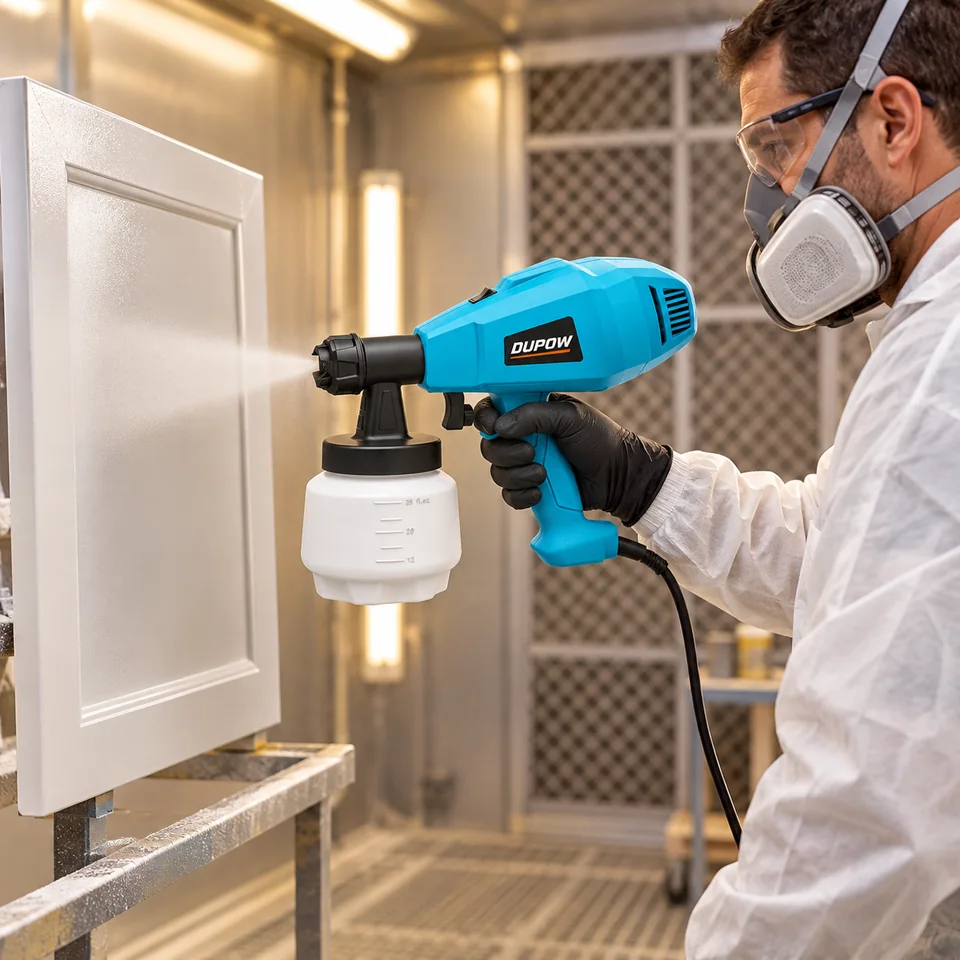

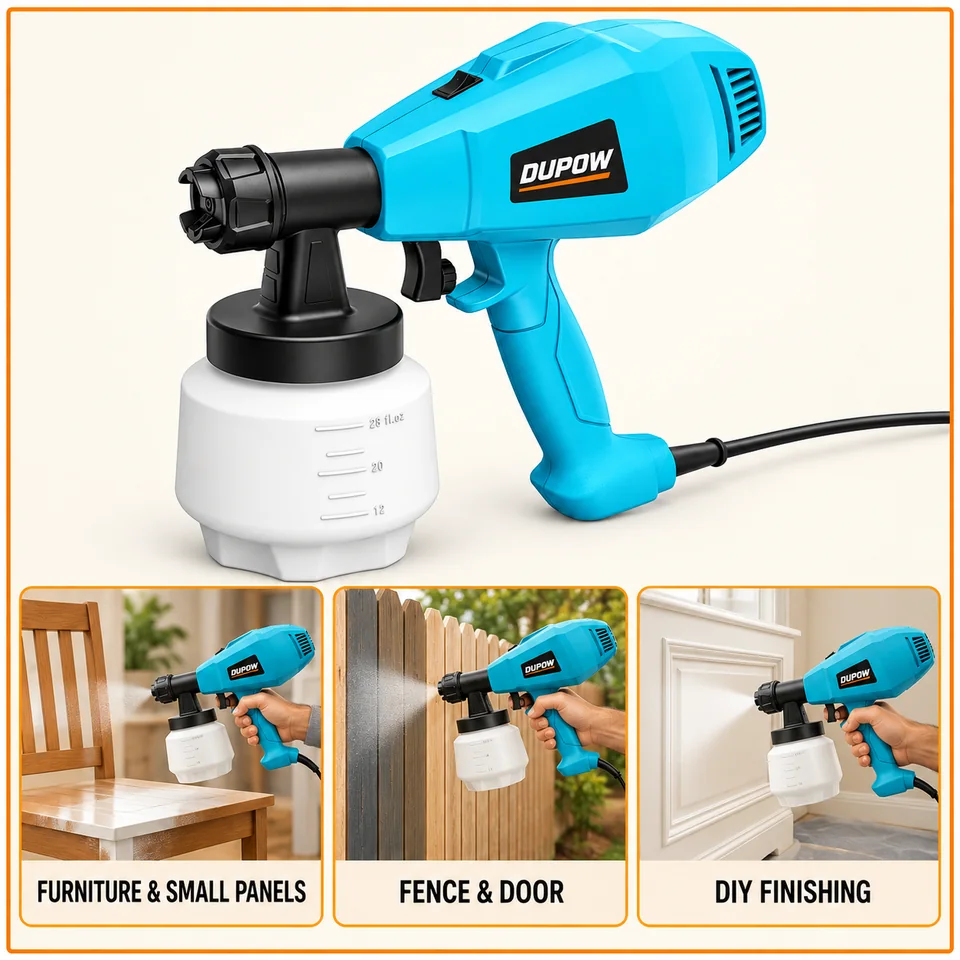

Small-area paint spraying
Paint cup: 800 ml · Water flow rate: 700 ml/min · Standard nozzle: 2.5 mm plastic
THE MODEL, CLEARLY SPECIFIED

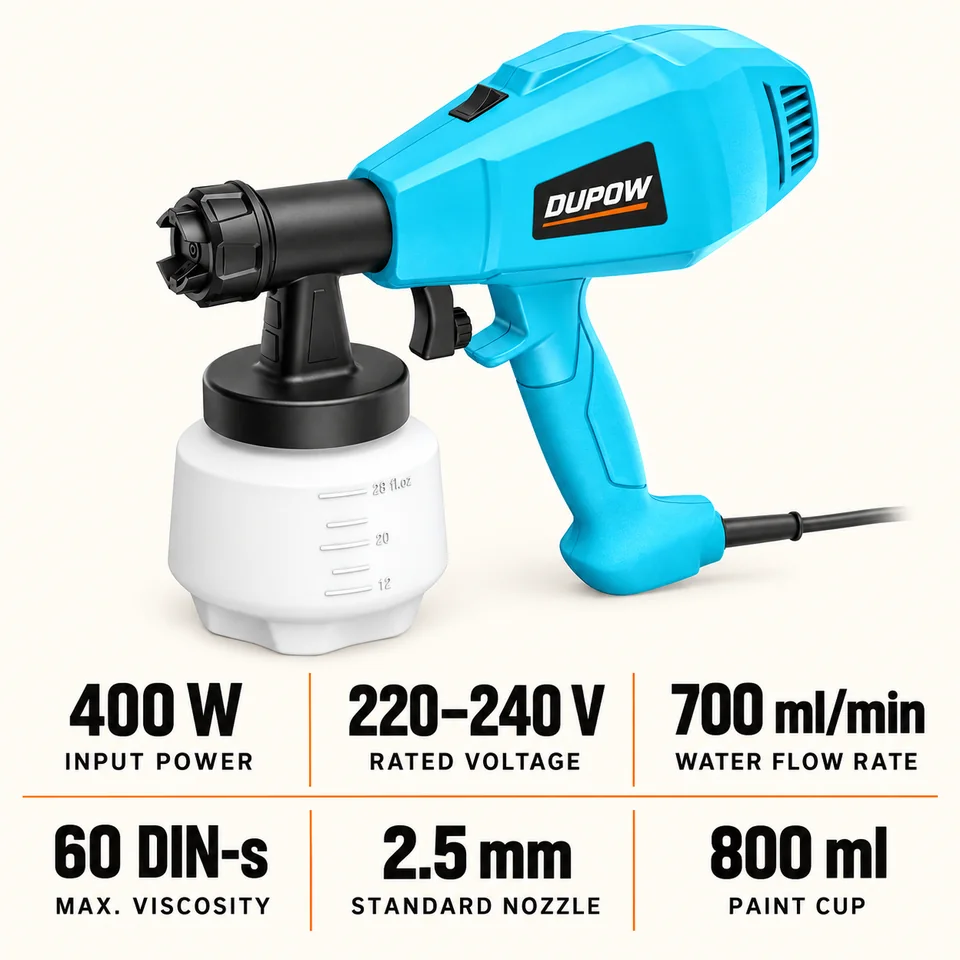

Product specifications
View the complete specifications for DUP-SG-003
| Primary category | Painting & Surface Finishing |
|---|---|
| Product type | HVLP Paint Sprayers |
| Public family | Corded HVLP Paint Sprayers |
| Configurations | 1 |
| Power source | Corded Electric |
CONFIGURATION MATRIX
Choose the right configuration
Tell us the model, order quantity and destination market. We will put together the accessory, branding and packaging options in your quotation.
| Product view | Inquiry reference | Configuration | Product specifications |
|---|---|---|---|
 | DUP-SG-003Lead configuration | Product configuration | Voltage: 220–240 VFrequency: 50/60 HzRated input: 400 WWorking pressure: 0.1–0.2 barWater flow rate: 700 ml/minMaximum viscosity: 60 DIN-sStandard nozzle: 2.5 mm plasticPaint cup: 800 mlPower cord: 2.0 m VDEThree-pattern adjustable nozzle700 ml/min water flow rate and 60 DIN-s viscosity capacitySimple hand-held format for furniture, fence and wall coatingStandard accessories: Viscosity cup, cleaning needle and cleaning brushPackage: 29.5 × 13 × 22 cm. Outer carton: 31 × 27.5 × 46 cm. Quantity: 4 pcs/ctn. Net/gross weight: 7.0 kg / 8.0 kg. Container loading (20 ft / 40 ft / 40 ft HQ): 2,888 pcs / 5,800 pcs / 6,480 pcs. |
WHOLESALE & PRIVATE LABEL
Build your order around DUP-SG-003.
Send the model, quantity and destination market, together with the required accessories, branding and packing. For cordless tools, include the tool-only or kit format, battery model and charger requirements.
- Typical MOQ
- 100 units
- Sample time
- Around 7 days
- Production
- Around 30 days
- OEM / Private Label
- Welcome
COMMERCIAL TERMS
Order options and lead times
Find MOQ and lead time above. We can prepare samples, private-label packaging and shipping details with your quotation.
MOQ and lead time depend on the model, kit and branding scope. Your quotation sets out the order quantity, price and production schedule.
B2B BUYER'S GUIDE
Where does the 800 ml DUP-SG-003 fit in the range?
Use this family when a compact cup and 50/60 Hz reviewed frequency range matter more than the larger cups and higher flow specifications of DUP-SG-004 or DUP-SG-005.
Why choose the 800 ml format
- Smaller cup than DUP-SG-004 and DUP-SG-005
- Reviewed 50/60 Hz frequency range

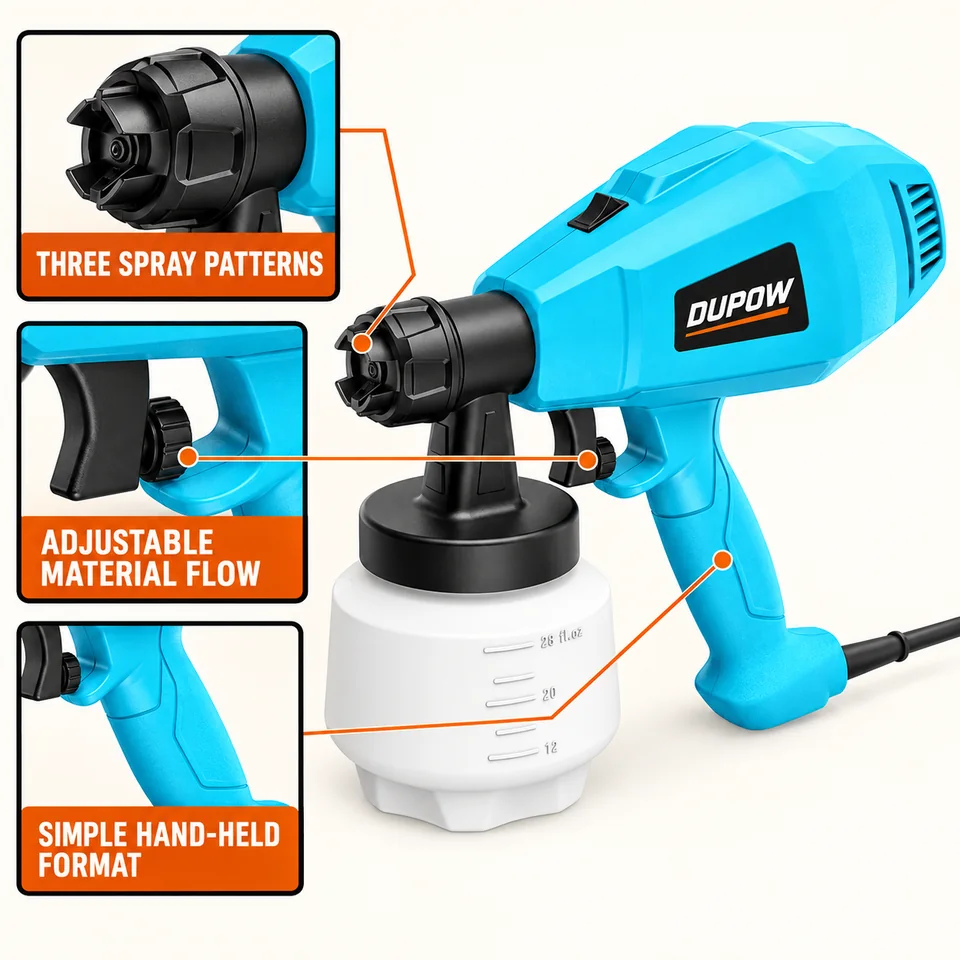

- 2.5 mm standard nozzle with three spray patterns
Sample acceptance points
- Test the buyer's coating against the 60 DIN-s reviewed maximum-viscosity reference
- Approve atomization, spray pattern, finish quality and refill interval
- Confirm plug, nozzle, cleaning kit, packaging and manual
This page positions DUP-SG-003 by its reviewed specification, not by an unverified performance claim. Test the buyer's actual coating and compare sample finish, refill frequency and cleaning workflow before selecting DUP-SG-003, DUP-SG-004 or DUP-SG-005.
QUICK FAMILY COMPARISON
Compare nearby HVLP Paint Sprayers options
Compare related models and add your shortlist to one inquiry.
| Model | Product & design | Electrical rating | Functions & working capacity | Power source | Inquiry |
|---|---|---|---|---|---|
| DUP-SG-002 |  20V Max 900 ml Cordless Paint Sprayer | — | Water flow rate: 650 ml/min 650 ml/min water flow rate | Cordless · 18 V / 20 V Max Battery Platform | |
| DUP-SG-003 Current page | 400W 800 ml Electric Paint Sprayer | Rated input: 400 W | Working pressure: 0.1–0.2 bar Water flow rate: 700 ml/min 700 ml/min water flow rate and 60 DIN-s viscosity capacity | Corded Electric | Current family |
| DUP-SG-004 |  400W 1200 ml HVLP Paint Sprayer | Rated input: 400 W | Water flow rate: 800 ml/min 800 ml/min water flow rate and 70 DIN-s viscosity capacity Three spray patterns with adjustable width and material flow | Corded Electric | |
| DUP-SG-005 |  500W 1200 ml HVLP Paint Sprayer | Rated input: 500 W | Water flow rate: 900 ml/min 900 ml/min water flow rate and 100 DIN-s viscosity capacity Three spray patterns with adjustable width and material flow | Corded Electric |
Compare power, working capacity and product format. We support private-label tool ranges with product selection, branding, packaging and export delivery.
COMPLIANCE DOCUMENTS
Redacted previews available for this family
The document summary below is associated with this model. Commercial and supplier identifiers have been removed from the public summary.
GS · CE Safety · REDACTED PREVIEW
Public document preview
StandardsEN 50580:2012+A1:2013 · EN 60745-1:2009+A11:2010
Date shown2025-01-22
Open preview ↗
GS · PAH · REDACTED PREVIEW
Public document preview
StandardsAfPS GS 2019:01 PAK · EN 50580:2012+A1:2013 · EN 60745-1:2009+A11:2010
Date shown2025-01-21
Open preview ↗
Important: Document scope follows the model and configuration described in the summary. Include your destination market and kit requirements when requesting the documentation pack.
BUYER RESOURCES
Plan the next sourcing step
Connect the reviewed sprayer family with OEM planning, packaging control and exact-model document review.
HVLP paint sprayer rangeCompare corded and cordless families by power, flow, cup and nozzle configuration.→OEM and private labelReview branding, color, packaging, manuals and inspection coordination.→Verify exact-model documentsCheck the legal manufacturer, model string, standards and configuration scope.→Build a comparable RFQSend the market, quantity, voltage, accessories, OEM and document needs.→Corded vs cordless HVLP range guideCompare power source, container, nozzle, cleaning and kit decisions.→
BUYER QUESTIONS
Build your order
Clear answers for model-level sourcing and document review.
What is DUP-SG-003 best suited to?
A compact 400 W corded HVLP paint sprayer with an 800 ml cup, 700 ml/min water-flow reference, 60 DIN-s viscosity reference, a 2.5 mm nozzle and three spray patterns. Importer and private-label ranges that need the smallest cup and lowest flow specification among the neighboring corded DUP-SG-003, DUP-SG-004 and DUP-SG-005 families.
Can DUP-SG-003 be supplied for OEM or private-label orders?
Yes. We support your branding, housing color, labels, manuals and packaging. Typical MOQ is 100 units; send us the model and quantity for your quotation.
What compliance documents are available for DUP-SG-003?
Ask us for safety documentation for your product and market.
What information should I send for a model-specific quotation?
Send the destination market, estimated quantity, voltage or battery platform, plug type, required accessories, OEM or packaging scope, and any document requirements. DUPOW normally replies by email within one business day.
MODEL-SPECIFIC INQUIRY
Ask us to review DUP-SG-003 for your market
Include your destination market, quantity and OEM scope. This family will be added to the inquiry automatically.
