DUP-SG-005
PRODUCT FAMILY
500W 900/1200 ml HVLP Paint Sprayer
1 listed configuration · Family DUP-SG-005
A higher-output hand-held HVLP sprayer with 900 ml or 1,200 ml cup options, designed for faster application of higher-viscosity coating materials.
Email this familyWhatsApp Ivan
Direct B2B contact: model and page link are prefilled; add your market and quantity.
| Primary category | Painting & Surface Finishing |
|---|---|
| Product type | HVLP Paint Sprayers |
| Public family | Corded HVLP Paint Sprayers |
| Configurations | 1 |
| Power source | Corded Electric |
| Battery platform | Not applicable |
| Motor type | Configuration to confirm |
Configuration and evidence check
Voltage, plug, exact configuration, compliance documents, packaging and branding are confirmed for the destination market before quotation or order placement. The commercial terms below are planning references; final terms are confirmed in the quotation.
PRODUCT REVIEW BOARD
One model. The numbers that shape the quotation.
A visual sourcing snapshot built only from the reviewed product family. Final voltage, plug, accessories, branding and documents are confirmed against the order configuration.
FROM MODEL TO MARKET VERSION
- 01 · SELECTConfirm destination market, quantity and intended application.
- 02 · CONFIGUREAlign voltage or battery platform, accessories, branding and packaging.
- 03 · VERIFYApprove the exact sample, written specification and applicable documents.
PRODUCT DETAILS & APPLICATIONS
Review the model from feature to application.
Use these views to shortlist the model. The exact sample, written specification, accessories, colors and order configuration remain the approval reference.
B2B BUYER'S GUIDE
Is DUP-SG-005 right for your product program?
Importers seeking a higher-output 500 W handheld HVLP option with 900 ml or 1,200 ml cup programs.

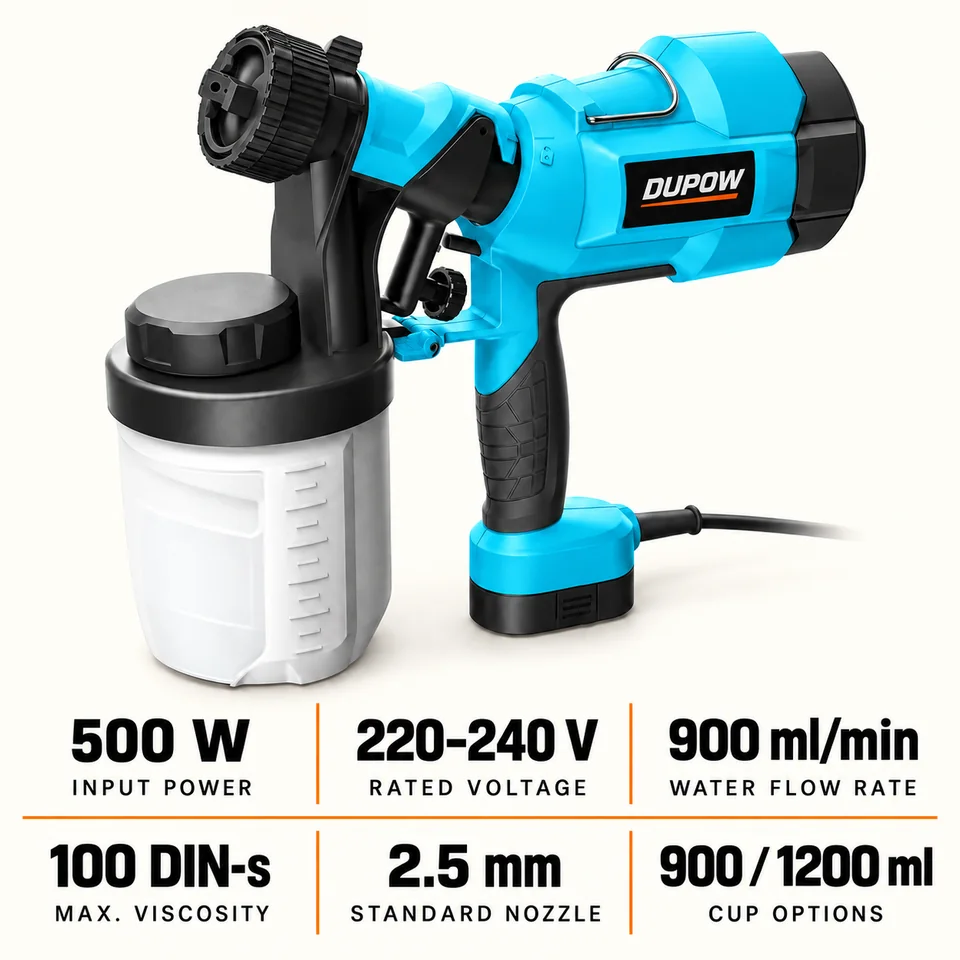

Reviewed configuration
- Voltage: 220–240 V
- Frequency: 50 Hz
- Rated input: 500 W
- Water flow rate: 900 ml/min

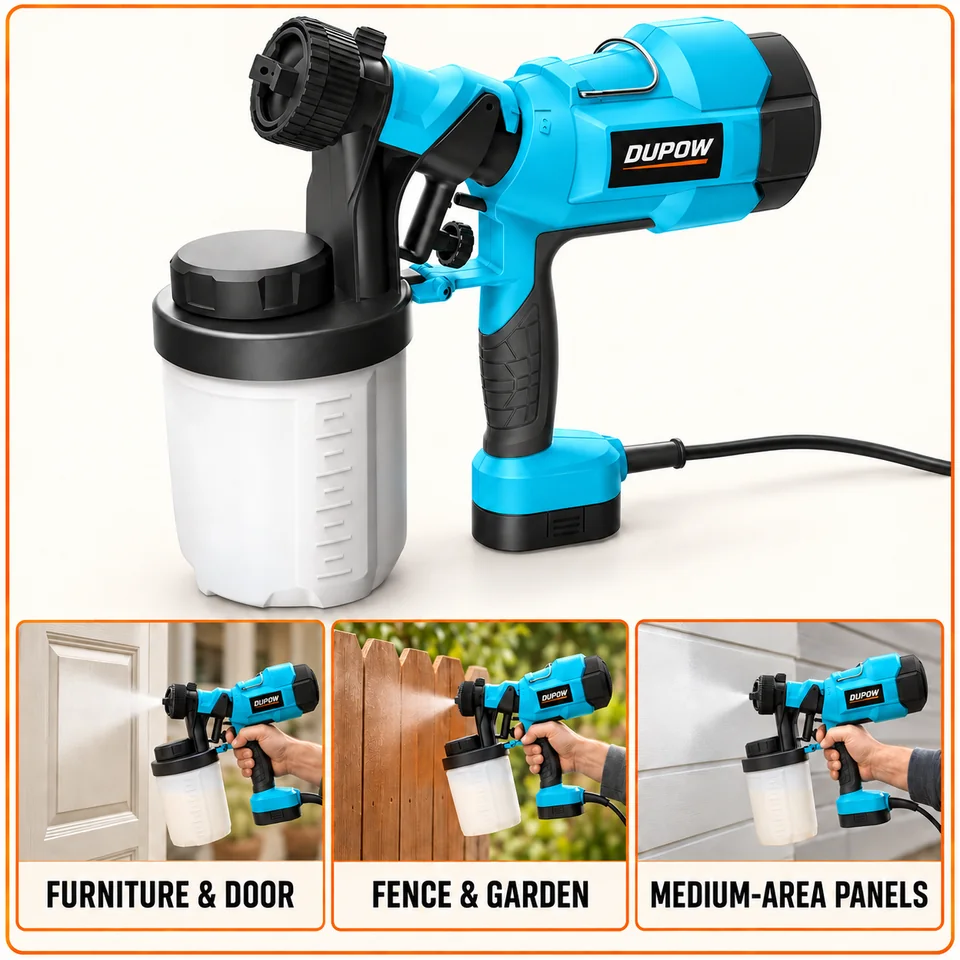

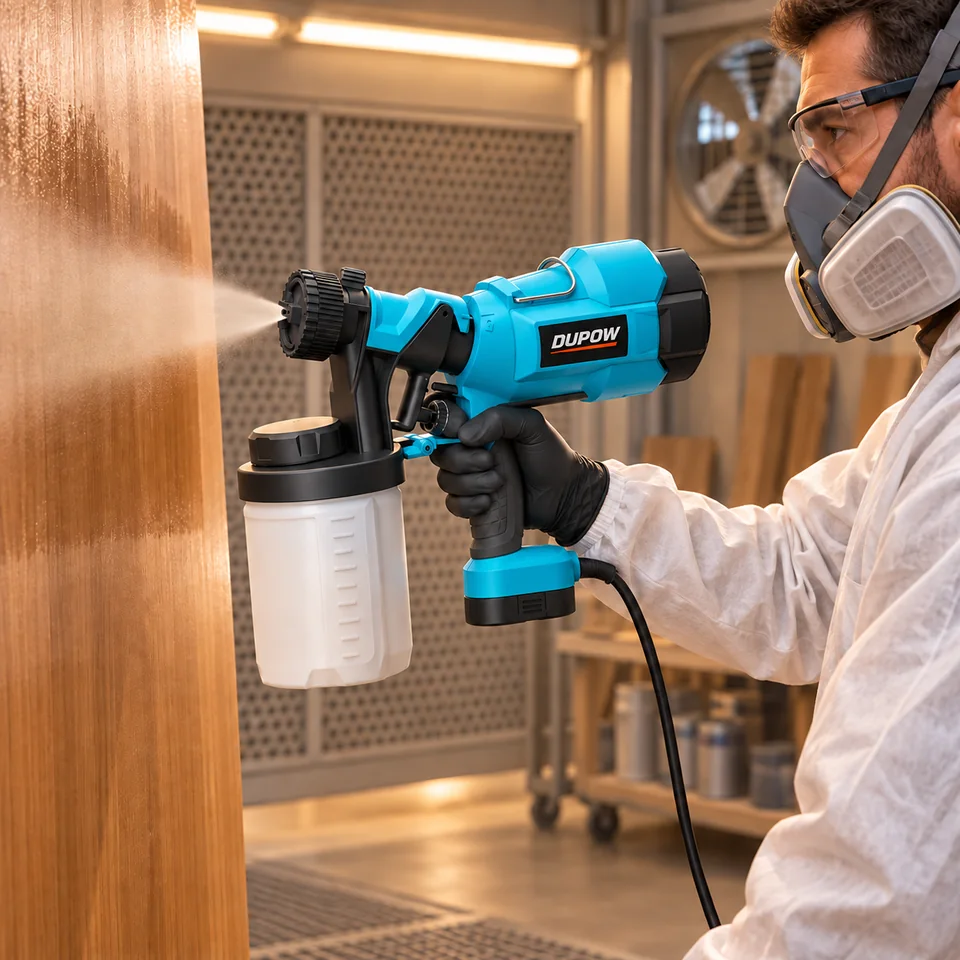

Typical applications
- Furniture, door and panel coating
- Fence and medium-area finishing
- Higher-flow applications after coating compatibility tests
Confirm before quotation
- Compare the 900 ml and 1,200 ml cup configurations
- Validate material viscosity, flow and finish on the sample
- Confirm plug, nozzle set, cleaning parts, packaging and labeling
Application examples are selection guidance, not a performance guarantee. Coating compatibility, runtime, duty conditions and destination-market requirements are validated against the exact sample and order configuration.
QUICK FAMILY COMPARISON
Compare nearby HVLP Paint Sprayers options
Review the closest product families, then add the relevant options to one inquiry.
| Family | Product | Key specifications | Power | Inquiry |
|---|---|---|---|---|
| DUP-SG-002 | 20V Max 900 ml Cordless Paint Sprayer | Battery voltage: 18 V nominal / 20 V Max Paint cup: 900 ml | 18 V / 20 V Max Battery Platform | |
| DUP-SG-003 | 400W 800 ml Electric Paint Sprayer | Voltage: 220–240 V Frequency: 50/60 Hz | Corded Electric | |
| DUP-SG-004 | 400W 900/1200 ml HVLP Paint Sprayer | Voltage: 220–240 V Frequency: 50 Hz | Corded Electric | |
| DUP-SG-005 Current page | 500W 900/1200 ml HVLP Paint Sprayer | Voltage: 220–240 V Frequency: 50 Hz | Corded Electric | Current family |
COMMERCIAL TERMS
Planning reference for this family
- Typical MOQ
- 100 units Painting & Surface Finishing
- Sample lead time
- Around 7 days After specifications are confirmed
- Production lead time
- Around 30 days After sample and packaging approval
- OEM
- Welcome Scope confirmed for each program
These are planning references for typical standard configurations, not a binding quotation. MOQ may vary with the model, OEM scope, customized colors, packaging, voltage, plug type and certification requirements. The final MOQ and schedule are confirmed for each quotation and order.
CONFIGURATION MATRIX
Choose the right configuration
Use the DUPOW configuration reference in your inquiry. Final market version, accessories and packaging remain subject to confirmation.
| Product view | Inquiry reference | Configuration | Reviewed specifications |
|---|---|---|---|

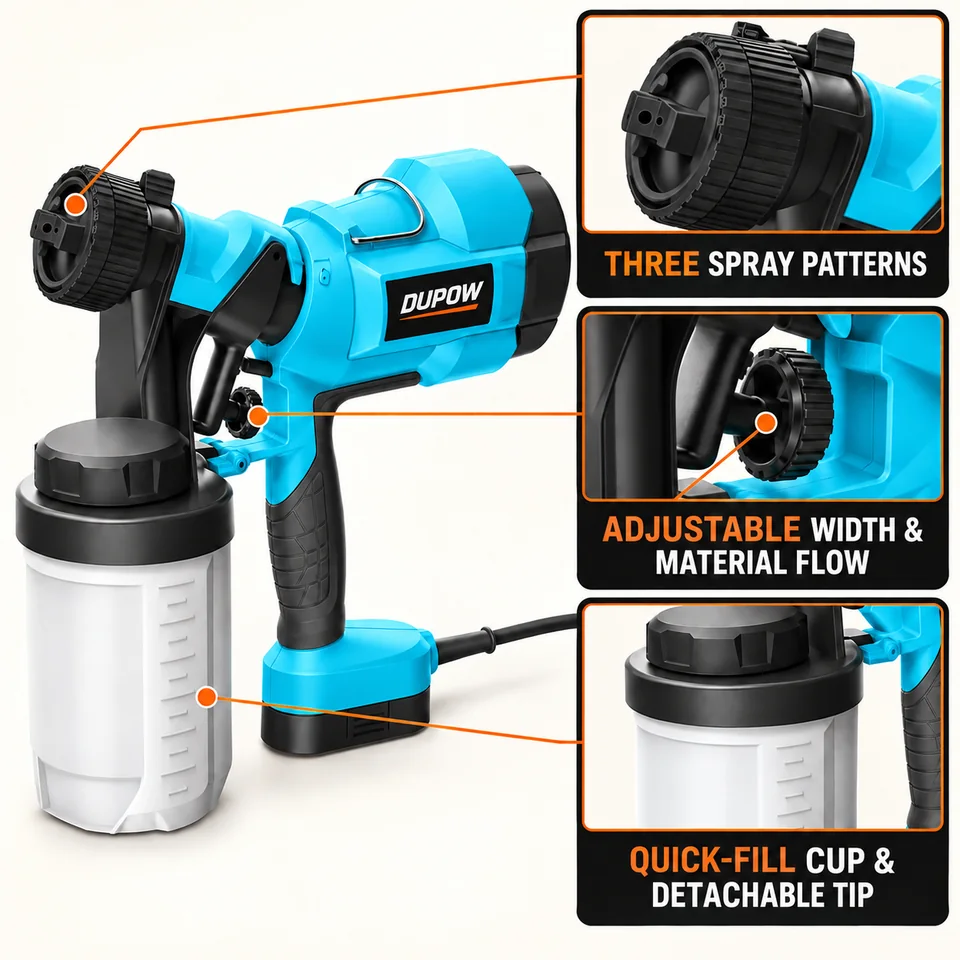

 | DUP-SG-005Lead configuration | Current reviewed configuration | Voltage: 220–240 VFrequency: 50 HzRated input: 500 WWater flow rate: 900 ml/minMaximum viscosity: 100 DIN-sStandard nozzle: 2.5 mm plasticPaint cup: 900 ml or 1,200 mlBare-tool weight: 1.5 kg900 ml/min water flow rate and 100 DIN-s viscosity capacityThree spray patterns with adjustable width and material flowQuick-fill cup and detachable spray tip for easier cleaningStandard accessories: Viscosity cup, cleaning needle, cleaning brush, replacement seals, check valves and 2.0/3.0 mm spare nozzlesPackage: 27.6 × 13.5 × 25.8 cm (900 ml). Outer carton: 56 × 29.5 × 28 cm. Quantity: 4 pcs/ctn. Net/gross weight: 7.5 kg / 8.3 kg. Container loading (20 ft / 40 ft / 40 ft HQ): 2,480 pcs / 4,900 pcs / 5,620 pcs.Destination-market compliance configuration: To be confirmed before quotation. |
BUYER RESOURCES
Plan the next sourcing step
Connect the reviewed sprayer family with OEM planning, packaging control and exact-model document review.
Power tool sourcing programDefine the range, configuration and supplier-review checkpoints.→OEM and private labelReview branding, color, packaging, manuals and inspection coordination.→Verify exact-model documentsCheck the legal manufacturer, model string, standards and configuration scope.→Build a comparable RFQSend the market, quantity, voltage, accessories, OEM and document needs.→Corded vs cordless HVLP range guideCompare power source, container, nozzle, cleaning and kit decisions.→
BUYER QUESTIONS
Before you request a quotation
Clear answers for model-level sourcing and document review.
What is DUP-SG-005 best suited to?
A higher-output hand-held HVLP sprayer with 900 ml or 1,200 ml cup options, designed for faster application of higher-viscosity coating materials. Importers seeking a higher-output 500 W handheld HVLP option with 900 ml or 1,200 ml cup programs.
Can DUP-SG-005 be supplied for OEM or private-label orders?
Yes, subject to order review. Branding, color, packaging, labels and manual scope are confirmed after the exact configuration is selected. The current MOQ planning reference is 100 units; the quotation confirms the final MOQ.
What compliance documents are available for DUP-SG-005?
Safety documentation is available upon request, subject to exact configuration and destination-market review.
What information should I send for a model-specific quotation?
Send the destination market, estimated quantity, voltage or battery platform, plug type, required accessories, OEM or packaging scope, and any document requirements. DUPOW normally replies by email within one business day.
MODEL-SPECIFIC INQUIRY
Ask us to review DUP-SG-005 for your market
Include your destination market, quantity and OEM scope. This family will be added to the inquiry automatically.
